Quickie Qs5 X

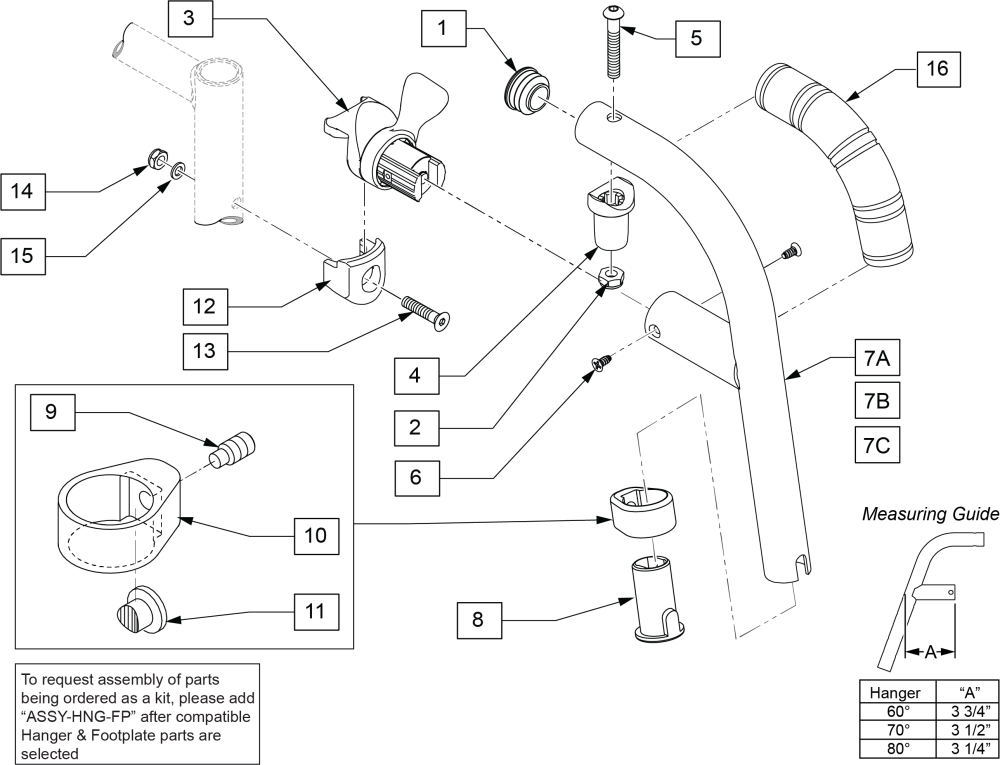

Name: Quickie Qs5 X: 60, 70 & 80 Deg Swing In/out Ext Mount Hangers
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 561062S | 1" INSERT PLUG .065 RIBS |
$8.00
|
EA |
|
|
| 8 | 104160S | BUSHING FOOTREST |
$10.00
|
EA |
|
|
| 13 | 103500-010 | FHCSM6X1X35FULLNP | N/A | EA | Please Call | |
| 14 | 104381 | NUT HEX NYLOCK M6X1.0 |
$10.00
|
EA |
|
|
| 15 | 104414S | WAVE WASHER 6 MM |
$10.00
|
EA |
|
|
| 1, 2, 4, 5 | 119518S | PIVOT SADDLE KIT |
$41.00
|
EA |
|
|
| 3, 6 | 119509 | HANGER LATCH ASSM W/HDWR L- Left | Left | N/A | EA | Please Call |
| 3, 6 | 119510 | HANGER LATCH ASSM W/HDWR R- Right | Right | N/A | EA | Please Call |
| 1 - 7A, 8 - 11 | 169876S | 60 DEG SWING I/O EXT HANGER RH- Right | Right |
$50.00
|
EA |
|
| 1 - 7A, 8 - 11 | 169877S | 60 DEG SWING I/O EXT HANGER LH- Left | Left |
$50.00
|
EA |
|
| 1 - 7B, 8 - 11 | 169878S | 70 DEG SWING I/O EXT HANGER RH- Right | Right |
$50.00
|
EA |
|
| 1 - 7B, 8 - 11 | 169879S | 70 DEG SWING I/O EXT HANGER LH- Left | Left |
$50.00
|
EA |
|
| 1 - 7C, 8 - 11 | 169880S | 80 DEG SWING I/O EXT HANGER RH- Right | Right |
$50.00
|
EA |
|
| 1 - 7C, 8 - 11 | 169881S | 80 DEG SWING I/O EXT HANGER LH- Left | Left |
$50.00
|
EA |
|
| 8 - 11 | 170101 | FOOTREST CLAMP ASSM PAIR |
$30.00
|
EA |
|
|
| 12 - 15 | 119514S | LATCH RECEIVER KIT |
$77.00
|
EA |
|
|
| 16 | 71201061 | Fixed Front touch point | N/A | EA | Please Call | |
| - Use with multiple assemblies | Use with multiple assemblies | N/A | EA | Please Call | ||
| ASSY - HNG - FP | ASSY-HNG-FP | HANGER/FOOTPLATE ASSY REQUIRED- add with Hanger & Footplate kit | add with Hanger & Footplate kit | N/A | EA | Please Call |
