Quickie Qs5 X

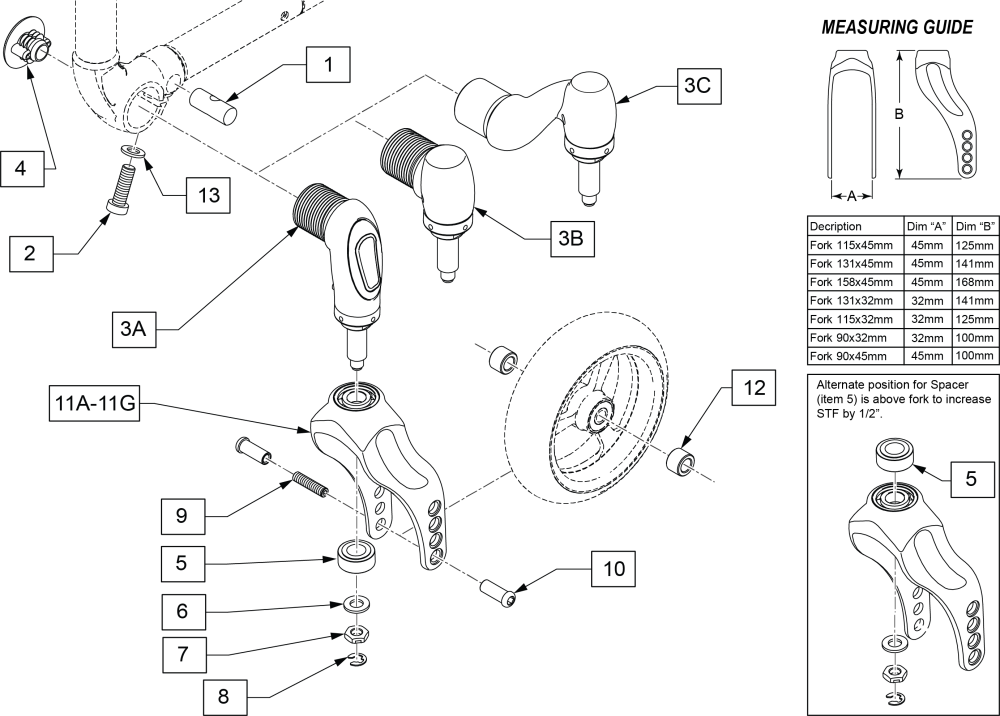

Name: Quickie Qs5 X: Qs5 X Fork Assembly
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2, 13 | 169830 | CASTER LINK FASTENERS- For 1 side | For 1 side |
$20.00
|
EA |
|
| 4 | 170139 | LINK CAP KIT- Pair | Pair |
$15.00
|
EA |
|
| 3A, 5 - 8 | 169832 | DESIGN CASTER LINK KIT LH |
$90.00
|
EA |
|
|
| 3A, 5 - 8 | 169833 | DESIGN CASTER LINK KIT RH |
$90.00
|
EA |
|
|
| 3B, 5 - 8 | 169834 | HEMI CASTER LINK KIT |
$95.00
|
EA |
|
|
| 3C, 5 - 8 | 169835 | SHORT CASTER LINK KIT LH |
$90.00
|
EA |
|
|
| 3C, 5 - 8 | 169836 | SHORT CASTER LINK KIT RH |
$90.00
|
EA |
|
|
| 5 - 8 | 169831 | FORK STEM FASTENERS |
$15.00
|
EA |
|
|
| 9, 10 | 169829 | AXLE KIT WITH SPACERS |
$20.00
|
EA |
|
|
| 9, 10, 12 | 170140 | AXLE KIT WITH SPACERS 45MM |
$20.00
|
EA |
|
|
| 9, 10, 11C | 169839S | MP FORK 131, 5 x 32 KIT |
$140.00
|
EA |
|
|
| 9, 10, 11E | 169841S | MP FORK 115x32 KIT |
$140.00
|
EA |
|
|
| 9, 10, 11F | 169842S | MP FORK 90x32 KIT |
$140.00
|
EA |
|
|
| 9, 10, 11A, 12 | 169837S | MP FORK 158 x 45 KIT- Used with 1.25 & 1.5 caster widths | Used with 1.25 & 1.5 caster widths |
$140.00
|
EA |
|
| 9, 10, 11B, 12 | 169838S | MP FORK 131, 5 x 45 KIT- Used with 1.25 & 1.5 caster widths | Used with 1.25 & 1.5 caster widths |
$140.00
|
EA |
|
| 9, 10, 11D, 12 | 169840S | MP FORK 115x45 KIT- Used with 1.25 & 1.5 caster widths | Used with 1.25 & 1.5 caster widths |
$140.00
|
EA |
|
| 9, 10, 11G, 12 | 169843S | MP FORK 90x45 KIT- Used with 1.25 & 1.5 caster widths | Used with 1.25 & 1.5 caster widths |
$140.00
|
EA |
|
