Quickie Qs5 X
Name: Quickie Qs5 X: Elr & Alr Calf Pads
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

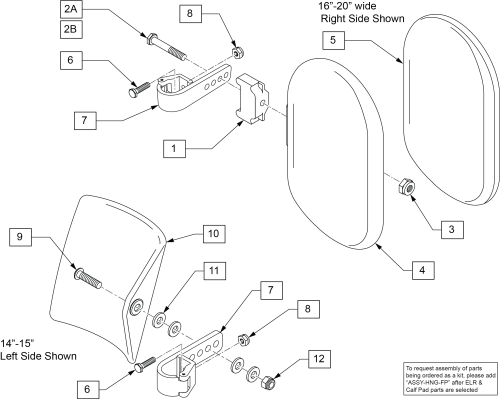

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 560199 | ELR CALF HINGE SPACER- 18"-20" wide only | 18"-20" wide only | N/A | EA | Please Call |
| 2A | 107018 | HHCS 5/16-18 X 2-1/2 ROHS- 16"-17" wide only | 16"-17" wide only | N/A | EA | Please Call |
| 2B | 107019 | HHCS 5/16-18 X 3-1/2 ROHS- 18"-20" wide only | 18"-20" wide only |
$8.00
|
EA |
|
| 3 | 106936S | NUT NYLOCK 5/16-18 ROHS |
$8.00
|
EA |
|
|
| 4 | 560108 | CALF PAD MOLDED 16"-20" | N/A | EA | Please Call | |
| 5 | 751045 | CALF PAD COVER | N/A | EA | Please Call | |
| 6 | 107013 | HHCS 1/4-28 X 5/8 ROHS | N/A | EA | Please Call | |
| 7 | 881413 | CALF PAD BRACKET ASSEMBLY | N/A | EA | Please Call | |
| 8 | 106934 | NUT NYLOCK 1/4-28 ROHS |
$8.00
|
EA |
|
|
| 9 | 222108 | 5/16-18 X 1 1/4 BH C/S | N/A | EA | Please Call | |
| 10 | 755014 | CALF PAD TROUGH STYLE 14"/16" | N/A | EA | Please Call | |
| 11 | 561016 | 1" WASHER 5/16" HOLE | N/A | EA | Please Call | |
| 12 | 106937 | NUT NYLOCK THIN 5/16-18 | N/A | EA | Please Call | |
| 2A, 3 - 8 | 881416 | CALF MOLDED 16"-17" ASSEMBLY | N/A | EA | Please Call | |
| 1, 2B, 3 - 8 | 881412 | CALF PAD MOLDED 18"-20" ASSEMBLY | N/A | EA | Please Call | |
| 6 - 12 | 881414 | CALF PAD J-HOOK 14"-15" ASSEMBLY | N/A | EA | Please Call | |
| - Use with multiple assemblies | Use with multiple assemblies | N/A | EA | Please Call | ||
| ASSY - HNG - FP | ASSY-HNG-FP | HANGER/FOOTPLATE ASSY REQUIRED- add with Hanger & Footplate kit | add with Hanger & Footplate kit | N/A | EA | Please Call |
