Quickie Qs5 X
Name: Quickie Qs5 X: Multi Angle Adj Footplate
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

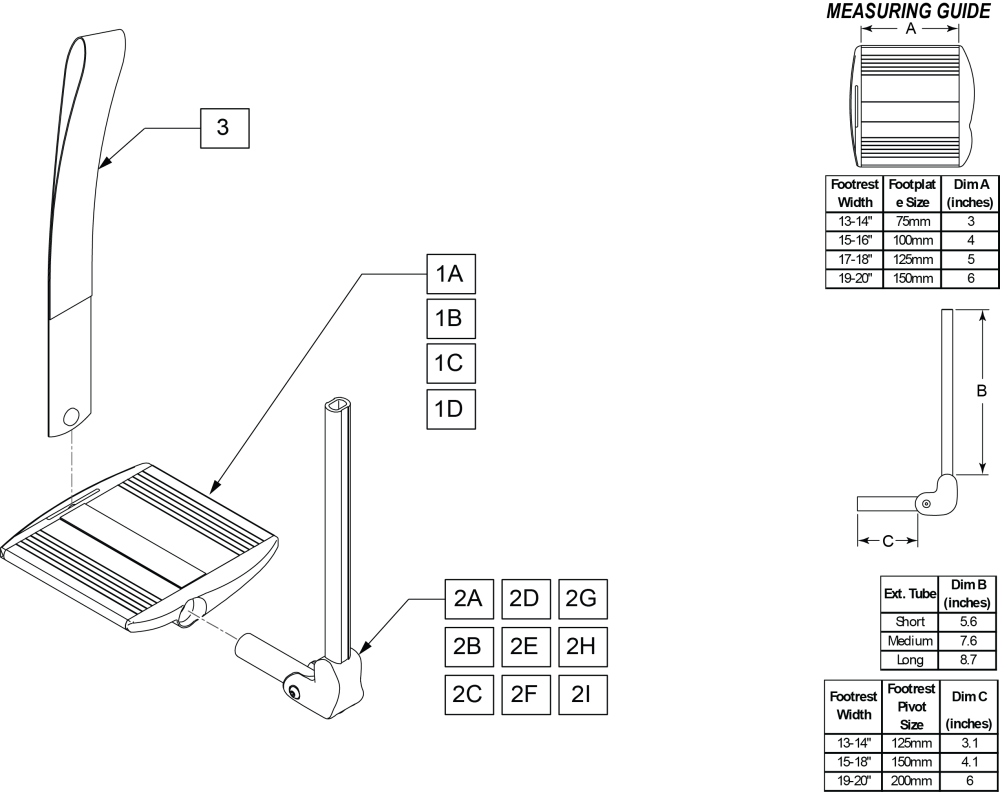

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1A | 71205015-003S | DIVIDED FOOT PLATE LEFT 75MM- 13-14 | 13-14 | N/A | EA | Please Call |
| 1A | 71205015-004S | DIVIDED FOOT PLATE RIGHT 75MM- 13-14 | 13-14 | N/A | EA | Please Call |
| 1B | 71205015-005S | DIVIDED FOOT PLATE LEFT 100MM- 15-16 | 15-16 | N/A | EA | Please Call |
| 1B | 71205015-006S | DIVIDED FOOT PLATE RIGHT 100MM- 15-16 | 15-16 | N/A | EA | Please Call |
| 1C | 71205015-007S | DIVIDED FOOT PLATE LEFT 125MM- 17-18 | 17-18 | N/A | EA | Please Call |
| 1C | 71205015-008S | DIVIDED FOOT PLATE RIGHT 125MM- 17-18 | 17-18 | N/A | EA | Please Call |
| 1D | 71205015-009 | DIVIDED FOOT PLATE LEFT 150MM- 19-20 | 19-20 | N/A | EA | Please Call |
| 1D | 71205015-010 | DIVIDED FOOT PLATE RIGHT 150MM- 19-20 | 19-20 | N/A | EA | Please Call |
| 2A | - 13-14,Short | 13-14,Short | N/A | EA | Please Call | |
| 2B | - 15-18,Short | 15-18,Short | N/A | EA | Please Call | |
| 2C | - 19-20,Short | 19-20,Short | N/A | EA | Please Call | |
| 2D | - 13-14,Med | 13-14,Med | N/A | EA | Please Call | |
| 2E | - 15-18,Med | 15-18,Med | N/A | EA | Please Call | |
| 2F | - 19-20,Med | 19-20,Med | N/A | EA | Please Call | |
| 2G | 71205014-003 | Footrest Pivot Assy 125mm- 13-14,Long | 13-14,Long | N/A | EA | Please Call |
| 2H | 71205014-002 | Footrest Pivot Assy 150mm- 15-18,Long | 15-18,Long | N/A | EA | Please Call |
| 2I | 71205014-004 | FOOTREST PIVOT ASSY 200MM- 19-20,Long | 19-20,Long | N/A | EA | Please Call |
| 1A, 2A | - Short | Short | N/A | EA | Please Call | |
| 1B, 2B | - Short | Short | N/A | EA | Please Call | |
| 1C, 2B | - Short | Short | N/A | EA | Please Call | |
| 1D, 2C | - Short | Short | N/A | EA | Please Call | |
| 1A, 2D | - Medium | Medium | N/A | EA | Please Call | |
| 1B, 2E | - Medium | Medium | N/A | EA | Please Call | |
| 1C, 2E | - Medium | Medium | N/A | EA | Please Call | |
| 1D, 2F | - Medium | Medium | N/A | EA | Please Call | |
| 1A, 2G | 169882S | PAINTED FOOTPLATE 13-14IN LH- Long | Long |
$130.00
|
EA |
|
| 1A, 2G | 169883S | PAINTED FOOTPLATE 13-14IN RH- Long | Long |
$130.00
|
EA |
|
| 1B, 2H | 169884S | PAINTED FOOTPLATE 15-16IN LH- Long | Long |
$130.00
|
EA |
|
| 1B, 2H | 169885S | PAINTED FOOTPLATE 15-16IN RH- Long | Long |
$130.00
|
EA |
|
| 1C, 2H | 169886S | PAINTED FOOTPLATE 17-18IN LH- Long | Long |
$130.00
|
EA |
|
| 1C, 2H | 169887S | PAINTED FOOTPLATE 17-18IN RH- Long | Long |
$130.00
|
EA |
|
| 1D, 2I | 169888S | PAINTED FOOTPLATE 19-20IN LH- Long | Long |
$130.00
|
EA |
|
| 1D, 2I | 169889S | PAINTED FOOTPLATE 19-20IN RH- Long | Long |
$130.00
|
EA |
|
| 3 | 760824031 | CALF STRAP DIAGONAL | N/A | EA | Please Call |
