Quickie Qs5 X
Name: Quickie Qs5 X: Qs5 X Single Side Fork Assembly
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

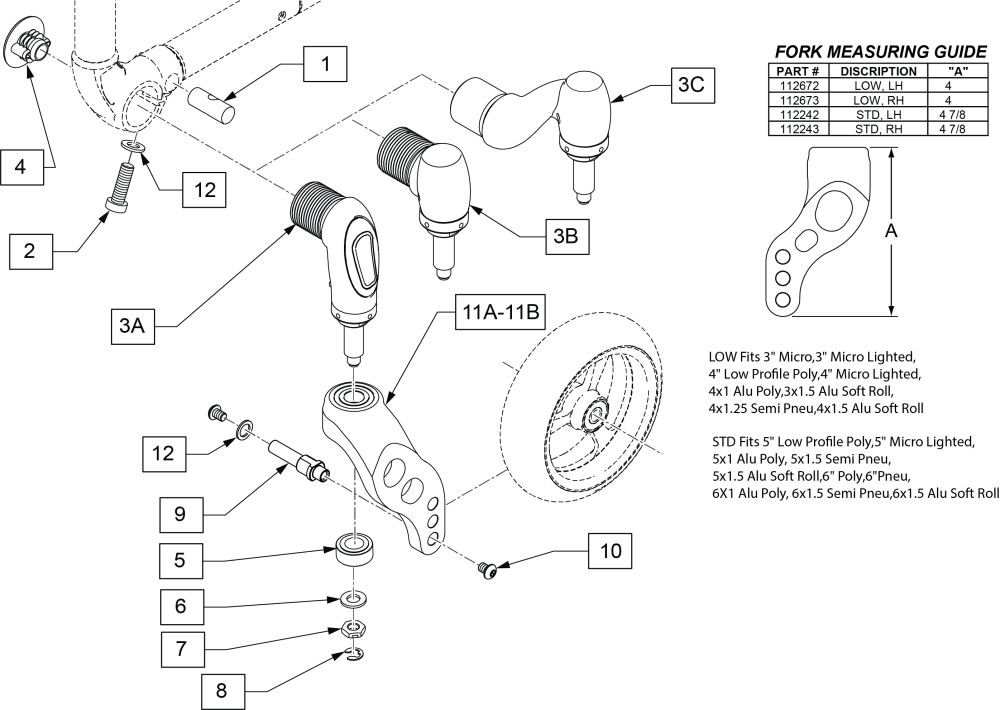

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2, 12 | 169830 | CASTER LINK FASTENERS |
$20.00
|
EA |
|
|
| 3A, 5 - 8 | 169832 | DESIGN CASTER LINK KIT LH- Left | Left |
$90.00
|
EA |
|
| 3A, 5 - 8 | 169833 | DESIGN CASTER LINK KIT RH- Right | Right |
$90.00
|
EA |
|
| 3B, 5 - 8 | 169834 | HEMI CASTER LINK KIT- Right or Left | Right or Left |
$95.00
|
EA |
|
| 3C, 5 - 8 | 169835 | SHORT CASTER LINK KIT LH- Left | Left |
$90.00
|
EA |
|
| 3C, 5 - 8 | 169836 | SHORT CASTER LINK KIT RH- Right | Right |
$90.00
|
EA |
|
| 4 | 170139 | LINK CAP |
$15.00
|
EA |
|
|
| 5 - 8 | 169831 | FORK STEM FASTENERS |
$15.00
|
EA |
|
|
| 9, 10, 12 | 159437 | AXLE KIT SINGLE SIDE FORK |
$62.00
|
EA |
|
|
| 11A | 112672 | ASSM FORK LOW SNGL SD LH W/BRG- Black | Black | N/A | EA | Please Call |
| 11A | 112673 | ASSM FORK LOW SNGL SD RH W/BRG- Black | Black | N/A | EA | Please Call |
| 11B | 112242 | ASSM FORK STD SNGL SD LH W/BRG- Black | Black | N/A | EA | Please Call |
| 11B | 112243 | ASSM FORK STD SNGL SD RH W/BRG- Black | Black | N/A | EA | Please Call |
| 11A | 117176S | FORK SNGL LOW CSTM ANO L- Choose custom anodized color | Choose custom anodized color |
$440.00
|
EA |
|
| 11A | 117177S | FORK SNGL LOW CSTM ANO R- Choose custom anodized color | Choose custom anodized color |
$440.00
|
EA |
|
| 11B | 117178S | FORK SNGL STD CSTM ANO L- Choose custom anodized color | Choose custom anodized color |
$490.00
|
EA |
|
| 11B | 117179S | FORK SNGL STD CSTM ANO R- Choose custom anodized color | Choose custom anodized color |
$490.00
|
EA |
|
