Catalyst 5

Name: Catalyst 5: Discontinued Catalyst Height Adjustable T-arm
Manufacturer: Ki Mobility

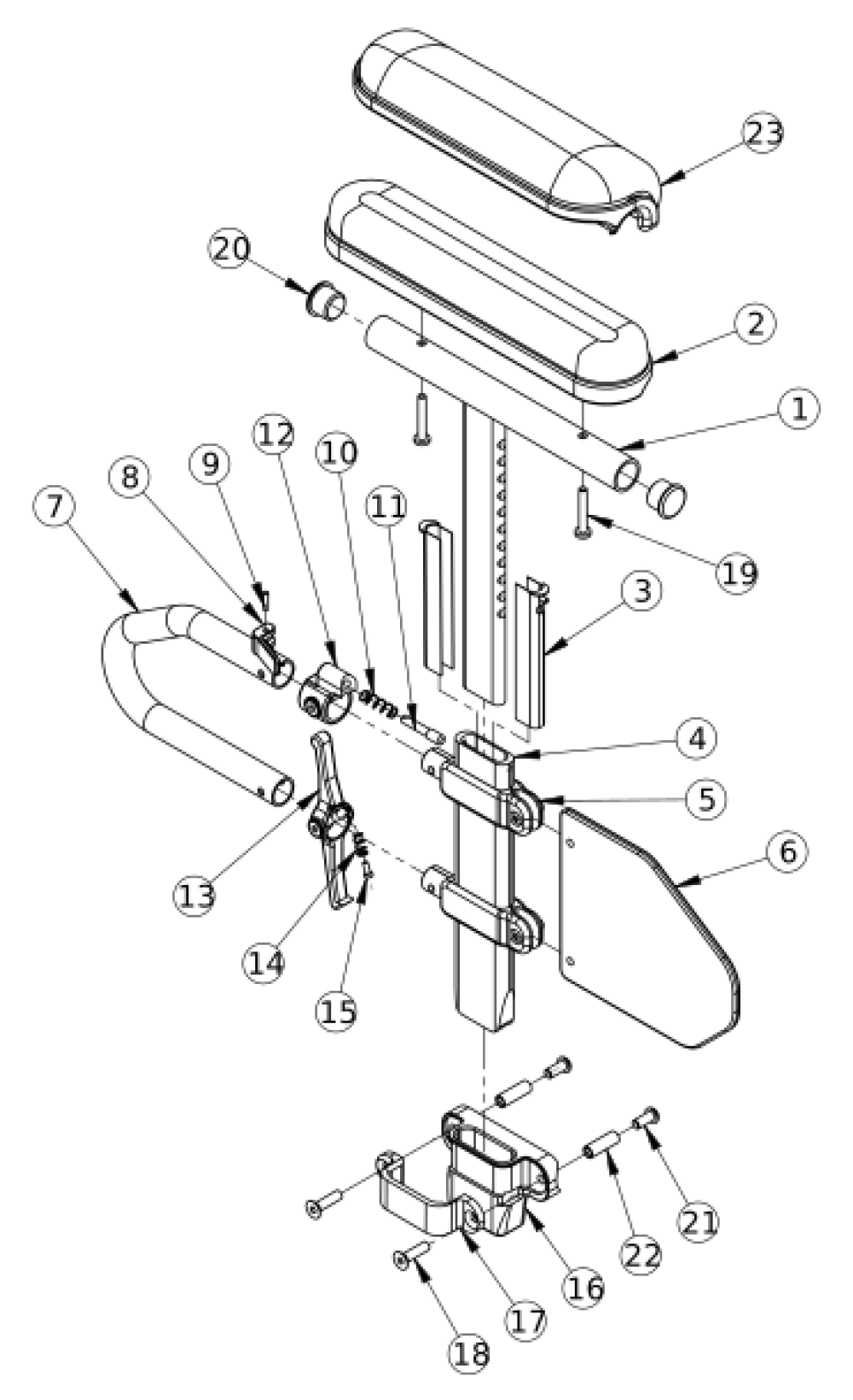

Discontinued Catalyst Height Adjustable T-arm parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 2b, 3 - 5, 6a, 7 - 15, 19a, 20 501682 Height Adj T-Arm Assm Short Desk w/ Std Pad Left- Replaced with 505646 N/A EA Please Call
1a, 2b, 3 - 5, 6a, 7 - 15, 19a, 20 501683 Height Adj T-Arm Assm Short Desk w/ Std Pad Right- Replaced with 505646 N/A EA Please Call
1a, 2b, 3 - 5, 6a, 7 - 15, 19a, 20 503051 Height Adj T Armrest, 14"-17" Depths, Desk w/ Std Pad PAIR CAT- Replaced with 505647 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 15, 19a, 20 501684 Height Adj T-Arm Assm Short Full w/ Std Pad Left- Replaced with 505644 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 15, 19a, 20 501685 Height Adj T-Arm Assm Short Full w/ Std Pad Right- Replaced with 505644 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 15, 19a, 20 503053 Height Adj T Armrest, 14"-17" Depths, Full w/ Std Pad PAIR CAT- Replaced with 505645 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 15, 19a, 20 501686 Height Adj T-Arm Assm Long Desk w/ Std Pad Left- Replaced with 505493 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 15, 19a, 20 501687 Height Adj T-Arm Assm Long Desk w/ Std Pad Right- Replaced with 505493 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 15, 19a, 20 503052 Height Adj T Armrest, 18"-20" Depths, Desk w/ Std Pad PAIR CAT- Replaced with 505494 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 15, 19a, 20 501688 Height Adj T-Arm Assm Long Full w/ Std Pad Left- Replaced with 505491 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 15, 19a, 20 501689 Height Adj T-Arm Assm Long Full w/ Std Pad Right- Replaced with 505491 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 15, 19a, 20 503054 Height Adj T Armrest, 18"-20" Depths, Full w/ Std Pad PAIR CAT- Replaced with505492 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 15, 19b, 20 501690 Height Adj T-Arm Assm Short Desk w/ Waterfall Pad Left- Replaced with 505650 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 15, 19b, 20 501691 Height Adj T-Arm Assm Short Desk w/ Waterfall Pad Right- Replaced with 505650 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 15, 19b, 20 503059 Height Adj T Armrest, 14"-17" Depths, Desk w/ Waterfall Pad PAIR CAT- Replaced with 505651 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 15, 19b, 20 501692 Height Adj T-Arm Assm Short Full w/ Waterfall Pad Left- Replaced with 505648 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 15, 19b, 20 501693 Height Adj T-Arm Assm Short Full w/ Waterfall Pad Right- Replaced with 505648 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 15, 19b, 20 503061 Height Adj T Armrest, 14"-17" Depths, Full w/ Waterfall Pad PAIR CAT- Replaced with 505649 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 15, 19b, 20 501694 Height Adj T-Arm Assm Long Desk w/ Waterfall Pad Left- Replaced with 505497 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 15, 19b, 20 501695 Height Adj T-Arm Assm Long Desk w/ Waterfall Pad Right- Replaced with 505497 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 15, 19b, 20 503060 Height Adj T Armrest, 18"-20" Depths, Desk w/ Waterfall Pad PAIR CAT- Replaced with 505498 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 15, 19b, 20 501696 Height Adj T-Arm Assm Long Full w/ Waterfall Pad Left- Replaced with 505495 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 15, 19b, 20 501697 Height Adj T-Arm Assm Long Full w/ Waterfall Pad Right- Replaced with 505495 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 15, 19b, 20 503062 Height Adj T Armrest, 18"-20" Depths, Full w/ Waterfall Pad PAIR CAT- Replaced with 505496 N/A EA Please Call
1a, 2b, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 501698 Height Adj T-Arm Assm Short Desk w/ Std Pad and 1" Receiver Left CAT- Replaced with 505654 N/A EA Please Call
1a, 2b, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 501699 Height Adj T-Arm Assm Short Desk w/ Std Pad and 1" Receiver Right CAT- Replaced with 505654 N/A EA Please Call
1a, 2b, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 503018 Height Adj T Armrest w/ Brackets and Hardware, 14"-17" Depths, Desk w/ Std Pad PAIR CAT- Replaced with 505655 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 501700 Height Adj T-Arm Assm Short Full w/ Std Pad and 1" Receiver Left CAT- Replaced with 505652 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 501701 Height Adj T-Arm Assm Short Full w/ Std Pad and 1" Receiver Right CAT- Replaced with 505652 N/A EA Please Call
1b, 2a, 3 - 5, 6a, 7 - 18, 19a, 20 - 22 503020 Height Adj T Armrest w/ Brackets and Hardware, 14"-17" Depths, Full w/ Std Pad PAIR CAT- Replaced with 505653 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 501702 Height Adj T-Arm Assm Long Desk w/ Std Pad and 1" Receiver Left CAT- Replaced with 505501 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 501703 Height Adj T-Arm Assm Long Desk w/ Std Pad and 1" Receiver Right CAT- Replaced with 505501 N/A EA Please Call
1a, 2b, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 503019 Height Adj T Armrest w/ Brackets and Hardware, 18"-20" Depths, Desk w/ Std Pad PAIR CAT- Replaced with 505502 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 501704 Height Adj T-Arm Assm Long Full w/ Std Pad and 1" Receiver Left CAT- Replaced with 505499 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 501705 Height Adj T-Arm Assm Long Full w/ Std Pad and 1" Receiver Right CAT- Replaced with 505499 N/A EA Please Call
1b, 2a, 3 - 5, 6b, 7 - 18, 19a, 20 - 22 503021 Height Adj T Armrest w/ Brackets and Hardware, 18"-20" Depths, Full w/ Std Pad PAIR CAT- Replaced with 505500 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 501706 Height Adj T-Arm Assm Short Desk w/ Waterfall Pad and 1" Receiver Left CAT- Replaced with 505658 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 501707 Height Adj T-Arm Assm Short Desk w/ Waterfall Pad and 1" Receiver Right CAT- Replaced with 505658 N/A EA Please Call
1a, 2d, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 503055 Height Adj T Armrest w/ Brackets and Hardware, 14"-17" Depths, Desk w/ Waterfall Pad PAIR CAT- Replaced with 505659 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 501708 Height Adj T-Arm Assm Short Full w/ Waterfall Pad and 1" Receiver Left CAT- Replaced with 505656 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 501709 Height Adj T-Arm Assm Short Full w/ Waterfall Pad and 1" Receiver Right CAT- Replaced with 505656 N/A EA Please Call
1b, 2c, 3 - 5, 6a, 7 - 18, 19b, 20 - 22 503057 Height Adj T Armrest w/ Brackets and Hardware, 14"-17" Depths, Full w/ Waterfall Pad PAIR CAT- Replaced with 505657 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 501710 Height Adj T-Arm Assm Long Desk w/ Waterfall Pad and 1" Receiver Left CAT- Replaced with 505505 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 501711 Height Adj T-Arm Assm Long Desk w/ Waterfall Pad and 1" Receiver Right CAT- Replaced with 505505 N/A EA Please Call
1a, 2d, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 503056 Height Adj T Armrest w/ Brackets and Hardware, 18"-20" Depths, Desk w/ Waterfall Pad PAIR CAT- Replaced with 505506 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 501712 Height Adj T-Arm Assm Long Full w/ Waterfall Pad and 1" Receiver Left CAT- Replaced with 505503 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 501713 Height Adj T-Arm Assm Long Full w/ Waterfall Pad and 1" Receiver Right CAT- Replaced with 505503 N/A EA Please Call
1b, 2c, 3 - 5, 6b, 7 - 18, 19b, 20 - 22 503058 Height Adj T Armrest w/ Brackets and Hardware, 18"-20" Depths, Full w/ Waterfall Pad PAIR CAT- Replaced with 505504 N/A EA Please Call
1a, 3 - 5, 6a, 7 - 15, 20 100238 Height Adj T Armrest Short Desk Right- Replaced with 003463 N/A EA Please Call
1a, 3 - 5, 6a, 7 - 15, 20 100242 Height Adj T Armrest Short Desk Left- Replaced with 003463 N/A EA Please Call
1b, 3 - 5, 6a, 7 - 15, 20 100239 Height Adj T Armrest Short Full Right- Replaced with 003464 N/A EA Please Call
1b, 3 - 5, 6a, 7 - 15, 20 100243 Height Adj T Armrest Short Full Left- Replaced with 003464 N/A EA Please Call
1a, 3 - 5, 6b, 7 - 15, 20 100240 Height Adj T Armrest Long Desk Right- Replaced with 003465 N/A EA Please Call
1a, 3 - 5, 6b, 7 - 15, 20 100244 Height Adj T Armrest Long Desk Left- Replaced with 003465 N/A EA Please Call
1b, 3 - 5, 6b, 7 - 15, 20 100241 Height Adj T Armrest Long Full Right- Replaced with 003466 N/A EA Please Call
1b, 3 - 5, 6b, 7 - 15, 20 100245 Height Adj T Armrest Long Full Left- Replaced with 003466 N/A EA Please Call
16, 17, 18, 21, 22 501730 Height Adj T-Arm Receiver Assm 1" CAT
$62.30
EA
1a, 20 000091 Height Adj T Armrest Upper Desk N/A EA Please Call
1b, 20 000101 Height Adj T Armrest Upper Full N/A EA Please Call
2a 100500 Arm Pad Full
$26.45
EA
2b 100501 Arm Pad Desk
$26.45
EA
3 000090 Height Adjustable T Armrest Shim
$2.86
4 000089 Height Adjustable T Armrest Post
$28.10
EA
5 000092 Height Adjustable T Armrest Clamp N/A Please Call
6a 000097 Height Adj T Armrest Side Guard Short- Used with 14-17 Seat Depths N/A EA Please Call
6b 000120 Height Adj T Armrest Side Guard Long- Used with 18-20 Seat Depths N/A EA Please Call
7 000095 Height Adjustable T Armrest Transfer Tube
$31.41
EA
8 000098 Height Adjustable Armrest Lever N/A EA Please Call
9 200257 Dowel Pin 1/8 x 1/2
$2.94
EA
10 000134 Height Adjustable Armrest Lever Spring
$1.25
EA
11 000099 Height Adjustable Armrest Lever Pin
$21.41
EA
12 000096 Height Adjustable T Armrest Pin Lock Housing
$16.47
EA
8 - 12 500541 Arm Height Adjustable T Upper Lever Assembly
$45.41
EA
13 000100 Height Adj T Armrest Release Lever N/A EA Please Call
14 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
16 000087 Height Adjustable T-Arm Receiver 1"
$17.07
EA
17 000088 Height Adjustable T Armrest Bracket
$30.69
EA
18 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
19a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
19b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
20 100803 Tube End Plug 7/8"
$1.77
EA
21 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
22 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
23a 102452 Waterfall Arm Pad Full
$36.71
EA
23b 102521 Waterfall Arm Pad Desk
$36.71
EA
