Catalyst 5

Name: Catalyst 5: Catalyst 5 Footplates - One Piece Flip Up
Manufacturer: Ki Mobility

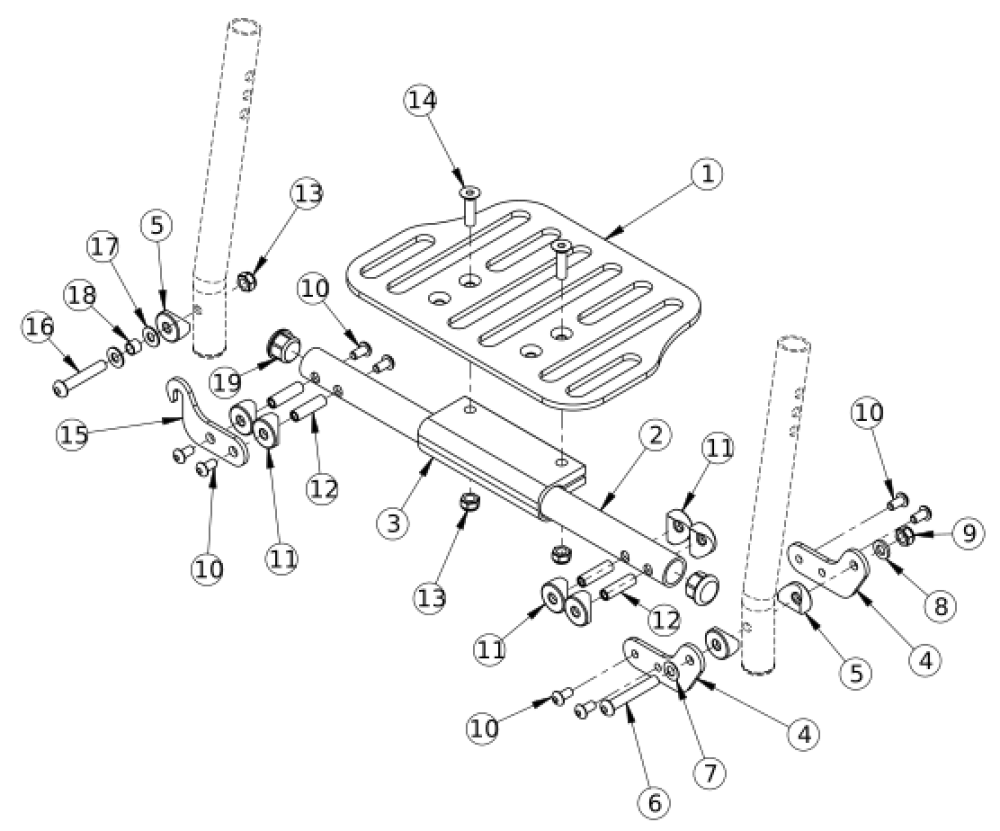

Catalyst 5 Footplates - One Piece Flip Up parts diagram
(Click on image to enlarge)

Assemblies are based on seat width. Only compatible with extension tube hangers. If changing footplate style, new extension tubes may be needed.
Pos. Part # Description Price UOM Buy
3 - 19 112894 Hardware Assembly for One Piece Flip Up Footplate
$159.47
EA
1a, 2a, 3 - 19 500517 Footrest Assembly One Piece Flip 14" Wide
$202.05
EA
1a, 2b, 3 - 19 500518 Footrest Assembly One Piece Flip 15" Wide
$202.05
EA
1a, 2c, 3 - 19 500519 Footrest Assembly One Piece Flip 16" Wide
$202.05
EA
1b, 2d, 3 - 19 500520 Footrest Assembly One Piece Flip 17" Wide
$202.05
EA
1b, 2e, 3 - 19 500521 Footrest Assembly One Piece Flip 18" Wide
$202.05
EA
1b, 2f, 3 - 19 500522 Footrest Assembly One Piece Flip 19" Wide
$215.70
EA
1b, 2g, 3 - 19 500523 Footrest Assembly One Piece Flip 20" Wide
$215.70
EA
1c, 2h, 3 - 19 502399 Footrest Assembly One Piece Flip 21" Wide
$215.70
EA
1c, 2i, 3 - 19 502400 Footrest Assembly One Piece Flip 22" Wide
$215.70
EA
1a 000226 Footrest Platform Angle Adjustable 8"
$96.00
EA
1b 000227 Footrest Platform Angle Adjustable 10"
$104.01
EA
1c 001319 Footrest Platform Angle Adjustable 12"
$111.16
EA
2a 000357 14" Footrest Tube, One Piece Flip Up
$39.59
EA
2b 000358 15" Footrest Tube, One Piece Flip Up
$39.59
EA
2c 000359 16" Footrest Tube, One Piece Flip Up
$39.59
EA
2d 000360 17" Footrest Tube, One Piece Flip Up
$39.59
EA
2e 000361 18" Footrest Tube, One Piece Flip Up
$39.59
EA
2f 000362 19" Footrest Tube, One Piece Flip Up
$39.59
EA
2g 000363 20" Footrest Tube, One Piece Flip Up
$39.59
EA
2h 002424 21" Footrest Tube, One Piece Flip Up
$39.59
EA
2i 002425 22" Footrest Tube, One Piece Flip Up
$39.59
EA
3 100789 Footrest Adjustable Clamp 5"
$32.72
EA
4 000355 Flip Up Footrest Pivot
$12.01
5 000053 Saddle 3/4"
$1.77
6 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
7 101455 M6 Belleville Washer (.252 x .551 x .050)
$1.77
EA
8 100746 M6 Flat Washer Blk Zn
$1.77
EA
9 120030 M6 Top Lock Nut
$1.17
EA
10 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
11 000353 Saddle - 3/4" .266 ID
$1.35
12 000073 M5 x 24 Threaded Barrel
$4.23
EA
13 100658 M6 Nylock Nut Blk Zn
$1.17
EA
14 100662 M6 x 25 FSHCS BLK ZC
$1.77
15 000356 Flip Up Footrest Latch
$19.39
EA
16 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
17 100831 1/2" Washer OD .040" Thick
$1.77
EA
18 000354 Flip Up Ferrule
$19.10
EA
19 100638 Tube End Plug 3/4"
$2.36
EA
