Catalyst 5
Name: Catalyst 5: Catalyst Titanium Cross Braces
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

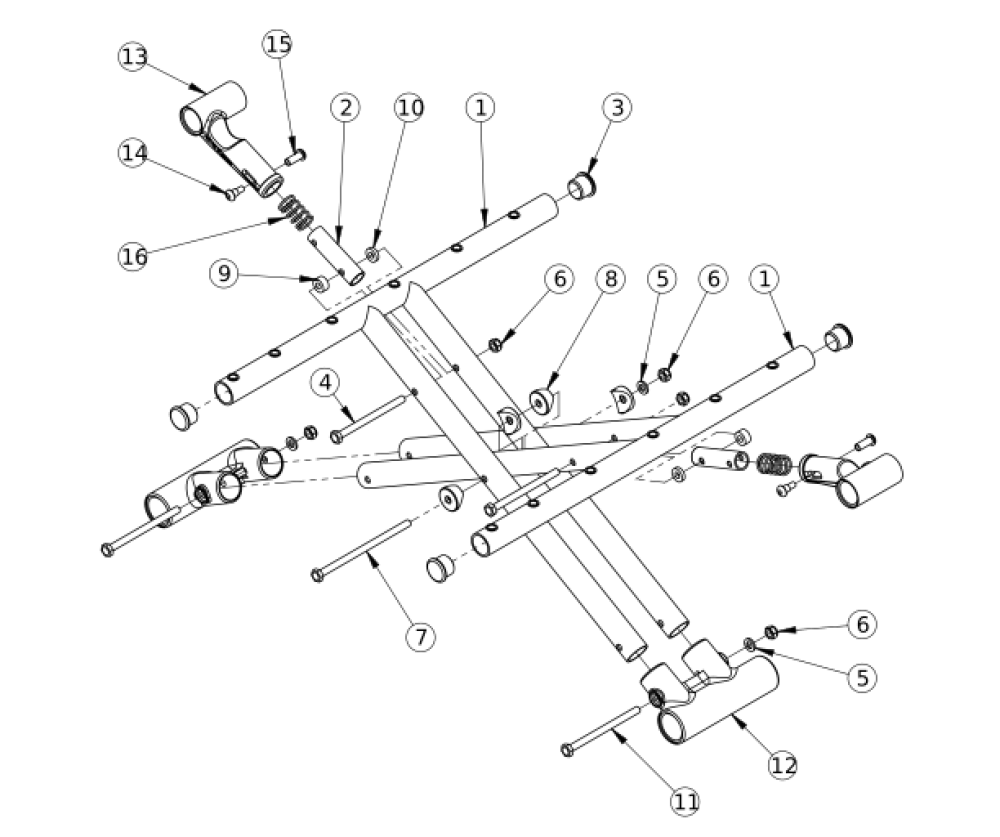

Part Picture
(Click on image to enlarge)
Round-style cross braces
If changing from oval-style aluminum cross braces, lower frame pivots and cross brace hardware are required.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2a, 13a, 14 - 16 | 500024 | Upper Pivot Assembly 14" Width |
$51.11
|
EA |
|
|
| 2b, 13b, 14 - 16 | 500025 | Upper Pivot Assembly 15" Width |
$51.11
|
EA |
|
|
| 2c, 13b, 14 - 16 | 500026 | Upper Pivot Assembly 16" Width |
$51.11
|
EA |
|
|
| 2d, 13b, 14 - 16 | 500027 | Upper Pivot Assembly 17" Width |
$51.11
|
EA |
|
|
| 2e, 13b, 14 - 16 | 500028 | Upper Pivot Assembly 18" Width |
$51.11
|
EA |
|
|
| 2f, 13b, 14 - 16 | 500029 | Upper Pivot Assembly 19" Width |
$51.11
|
EA |
|
|
| 2g, 13b, 14 - 16 | 500030 | Upper Pivot Assembly 20" Width |
$51.11
|
EA |
|
|
| 2h, 13b, 14 - 16 | 501479 | Upper Pivot Assembly 21/22" Width |
$51.11
|
EA |
|
|
| 4 - 11 | 501398 | Round-Style Cross Brace Hardware Kit CAT |
$27.36
|
EA |
|
|
| 1a, 3 | 100295 | Cross Brace Titanium Right 14 x 14 CAT |
$500.62
|
EA |
|
|
| 1b, 3 | 100338 | Cross Brace Titanium Left 14 x 14 CAT |
$500.62
|
EA |
|
|
| 1c, 3 | 100296 | Cross Brace Titanium Right 14 x 15 CAT |
$500.62
|
EA |
|
|
| 1d, 3 | 100339 | Cross Brace Titanium Left 14 x 15 CAT |
$500.62
|
EA |
|
|
| 1e, 3 | 100297 | Cross Brace Titanium Right 14 x 16 CAT |
$500.62
|
EA |
|
|
| 1f, 3 | 100340 | Cross Brace Titanium Left 14 x 16 CAT |
$500.62
|
EA |
|
|
| 1g, 3 | 100298 | Cross Brace Titanium Right 14 x 17 CAT |
$487.37
|
EA |
|
|
| 1h, 3 | 100341 | Cross Brace Titanium Left 14 x 17 CAT |
$487.37
|
EA |
|
|
| 1i, 3 | 100299 | Cross Brace Titanium Right 14 x 18 CAT |
$487.37
|
EA |
|
|
| 1j, 3 | 100342 | Cross Brace Titanium Left 14 x 18 CAT |
$487.37
|
EA |
|
|
| 1k, 3 | 124040 | Cross Brace Titanium Left 14 x 19 CAT |
$487.37
|
EA |
|
|
| 1l, 3 | 124042 | Cross Brace Titanium Right 14 x 19 CAT |
$487.37
|
EA |
|
|
| 1m, 3 | 124041 | Cross Brace Titanium Left 14 x 20 CAT |
$487.37
|
EA |
|
|
| 1n, 3 | 124043 | Cross Brace Titanium Right 14 x 20 CAT |
$487.37
|
EA |
|
|
| 1o, 3 | 100300 | Cross Brace Titanium Right 15 x 14 CAT |
$487.37
|
EA |
|
|
| 1p, 3 | 100343 | Cross Brace Titanium Left 15 x 14 CAT |
$500.62
|
EA |
|
|
| 1q, 3 | 100301 | Cross Brace Titanium Right 15 x 15 CAT |
$500.62
|
EA |
|
|
| 1r, 3 | 100344 | Cross Brace Titanium Left 15 x 15 CAT |
$500.62
|
EA |
|
|
| 1s, 3 | 100302 | Cross Brace Titanium Right 15 x 16 CAT |
$500.62
|
EA |
|
|
| 1t, 3 | 100345 | Cross Brace Titanium Left 15 x 16 CAT |
$500.62
|
EA |
|
|
| 1u, 3 | 100303 | Cross Brace Titanium Right 15 x 17 CAT |
$500.62
|
EA |
|
|
| 1v, 3 | 100346 | Cross Brace Titanium Left 15 x 17 CAT |
$500.62
|
EA |
|
|
| 1w, 3 | 100304 | Cross Brace Titanium Right 15 x 18 CAT |
$500.62
|
EA |
|
|
| 1x, 3 | 100347 | Cross Brace Titanium Left 15 x 18 CAT |
$500.62
|
EA |
|
|
| 1y, 3 | 100305 | Cross Brace Titanium Right 15 x 19 CAT |
$487.37
|
EA |
|
|
| 1z, 3 | 100348 | Cross Brace Titanium Left 15 x 19 CAT |
$487.37
|
EA |
|
|
| 1aa, 3 | 100306 | Cross Brace Titanium Right 15 x 20 CAT |
$487.37
|
EA |
|
|
| 1ab, 3 | 100349 | Cross Brace Titanium Left 15 x 20 CAT |
$500.62
|
EA |
|
|
| 1ac, 3 | 100307 | Cross Brace Titanium Right 16 x 14 CAT |
$487.37
|
EA |
|
|
| 1ad, 3 | 100350 | Cross Brace Titanium Left 16 x 14 CAT |
$487.37
|
EA |
|
|
| 1ae, 3 | 100308 | Cross Brace Titanium Right 16 x 15 CAT |
$500.62
|
EA |
|
|
| 1af, 3 | 100351 | Cross Brace Titanium Left 16 x 15 CAT |
$500.62
|
EA |
|
|
| 1ag, 3 | 100309 | Cross Brace Titanium Right 16 x 16 CAT |
$500.62
|
EA |
|
|
| 1ah, 3 | 100352 | Cross Brace Titanium Left 16 x 16 CAT |
$500.62
|
EA |
|
|
| 1ai, 3 | 100310 | Cross Brace Titanium Right 16 x 17 CAT |
$500.62
|
EA |
|
|
| 1aj, 3 | 100353 | Cross Brace Titanium Left 16 x 17 CAT |
$500.62
|
EA |
|
|
| 1ak, 3 | 100311 | Cross Brace Titanium Right 16 x 18 CAT |
$500.62
|
EA |
|
|
| 1al, 3 | 100354 | Cross Brace Titanium Left 16 x 18 CAT |
$500.62
|
EA |
|
|
| 1am, 3 | 100312 | Cross Brace Titanium Right 16 x 19 CAT |
$500.62
|
EA |
|
|
| 1an, 3 | 100355 | Cross Brace Titanium Left 16 x 19 CAT |
$500.62
|
EA |
|
|
| 1ao, 3 | 100313 | Cross Brace Titanium Right 16 x 20 CAT |
$500.62
|
EA |
|
|
| 1ap, 3 | 100356 | Cross Brace Titanium Left 16 x 20 CAT |
$500.62
|
EA |
|
|
| 1aq, 3 | 100314 | Cross Brace Titanium Right 17 x 14 CAT |
$500.62
|
EA |
|
|
| 1ar, 3 | 100357 | Cross Brace Titanium Left 17 x 14 CAT |
$500.62
|
EA |
|
|
| 1as, 3 | 100315 | Cross Brace Titanium Right 17 x 15 CAT |
$487.37
|
EA |
|
|
| 1at, 3 | 100358 | Cross Brace Titanium Left 17 x 15 CAT |
$487.37
|
EA |
|
|
| 1au, 3 | 100316 | Cross Brace Titanium Right 17 x 16 CAT |
$500.62
|
EA |
|
|
| 1av, 3 | 100359 | Cross Brace Titanium Left 17 x 16 CAT |
$500.62
|
EA |
|
|
| 1aw, 3 | 100317 | Cross Brace Titanium Right 17 x 17 CAT |
$500.62
|
EA |
|
|
| 1ax, 3 | 100360 | Cross Brace Titanium Left 17 x 17 CAT |
$500.62
|
EA |
|
|
| 1ay, 3 | 100318 | Cross Brace Titanium Right 17 x 18 CAT |
$500.62
|
EA |
|
|
| 1az, 3 | 100361 | Cross Brace Titanium Left 17 x 18 CAT |
$500.62
|
EA |
|
|
| 1ba, 3 | 100319 | Cross Brace Titanium Right 17 x 19 CAT |
$500.62
|
EA |
|
|
| 1bb, 3 | 100362 | Cross Brace Titanium Left 17 x 19 CAT |
$500.62
|
EA |
|
|
| 1bc, 3 | 100320 | Cross Brace Titanium Right 17 x 20 CAT |
$500.62
|
EA |
|
|
| 1bd, 3 | 100363 | Cross Brace Titanium Left 17 x 20 CAT |
$500.62
|
EA |
|
|
| 1be, 3 | 100321 | Cross Brace Titanium Right 18 x 14 CAT |
$487.37
|
EA |
|
|
| 1bf, 3 | 100364 | Cross Brace Titanium Left 18 x 14 CAT |
$487.37
|
EA |
|
|
| 1bg, 3 | 100322 | Cross Brace Titanium Right 18 x 15 CAT |
$500.62
|
EA |
|
|
| 1bh, 3 | 100365 | Cross Brace Titanium Left 18 x 15 CAT |
$500.62
|
EA |
|
|
| 1bi, 3 | 100323 | Cross Brace Titanium Right 18 x 16 CAT |
$500.62
|
EA |
|
|
| 1bj, 3 | 100366 | Cross Brace Titanium Left 18 x 16 CAT |
$500.62
|
EA |
|
|
| 1bk, 3 | 100324 | Cross Brace Titanium Right 18 x 17 CAT |
$500.62
|
EA |
|
|
| 1bl, 3 | 100367 | Cross Brace Titanium Left 18 x 17 CAT |
$500.62
|
EA |
|
|
| 1bm, 3 | 100325 | Cross Brace Titanium Right 18 x 18 CAT |
$500.62
|
EA |
|
|
| 1bn, 3 | 100368 | Cross Brace Titanium Left 18 x 18 CAT |
$500.62
|
EA |
|
|
| 1bo, 3 | 100326 | Cross Brace Titanium Right 18 x 19 CAT |
$500.62
|
EA |
|
|
| 1bp, 3 | 100369 | Cross Brace Titanium Left 18 x 19 CAT |
$500.62
|
EA |
|
|
| 1bq, 3 | 100327 | Cross Brace Titanium Right 18 x 20 CAT |
$500.62
|
EA |
|
|
| 1br, 3 | 100370 | Cross Brace Titanium Left 18 x 20 CAT |
$500.62
|
EA |
|
|
| 1bs, 3 | 100328 | Cross Brace Titanium Right 19 x 16 CAT |
$487.37
|
EA |
|
|
| 1bt, 3 | 100371 | Cross Brace Titanium Left 19 x 16 CAT |
$487.37
|
EA |
|
|
| 1bu, 3 | 100329 | Cross Brace Titanium Right 19 x 17 CAT |
$500.62
|
EA |
|
|
| 1bv, 3 | 100372 | Cross Brace Titanium Left 19 x 17 CAT |
$500.62
|
EA |
|
|
| 1bw, 3 | 100330 | Cross Brace Titanium Right 19 x 18 CAT |
$500.62
|
EA |
|
|
| 1bx, 3 | 100373 | Cross Brace Titanium Left 19 x 18 CAT |
$500.62
|
EA |
|
|
| 1by, 3 | 100331 | Cross Brace Titanium Right 19 x 19 CAT |
$500.62
|
EA |
|
|
| 1bz, 3 | 100374 | Cross Brace Titanium Left 19 x 19 CAT |
$500.62
|
EA |
|
|
| 1ca, 3 | 100332 | Cross Brace Titanium Right 19 x 20 CAT |
$500.62
|
EA |
|
|
| 1cb, 3 | 100375 | Cross Brace Titanium Left 19 x 20 CAT |
$500.62
|
EA |
|
|
| 1cc, 3 | 100333 | Cross Brace Titanium Right 20 x 16 CAT |
$500.62
|
EA |
|
|
| 1cd, 3 | 100376 | Cross Brace Titanium Left 20 x 16 CAT |
$500.62
|
EA |
|
|
| 1ce, 3 | 100334 | Cross Brace Titanium Right 20 x 17 CAT |
$500.62
|
EA |
|
|
| 1cf, 3 | 100377 | Cross Brace Titanium Left 20 x 17 CAT |
$500.62
|
EA |
|
|
| 1cg, 3 | 100335 | Cross Brace Titanium Right 20 x 18 CAT |
$500.62
|
EA |
|
|
| 1ch, 3 | 100378 | Cross Brace Titanium Left 20 x 18 CAT |
$500.62
|
EA |
|
|
| 100336 | Cross Brace Titanium Right 20 x 19 CAT |
$500.62
|
EA |
|
||
| 100379 | Cross Brace Titanium Left 20 x 19 CAT |
$500.62
|
EA |
|
||
| 100337 | Cross Brace Titanium Right 20 x 20 CAT |
$500.62
|
EA |
|
||
| 100380 | Cross Brace Titanium Left 20 x 20 CAT |
$500.62
|
EA |
|
||
| 3 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
|
| 4 | 100660 | M6 x 80mm CLS8.8 DIN931 HHCS ZC |
$1.81
|
|
||
| 5 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 6 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 7 | 100678 | M6 x 110 CLS8.8 DIN931 HHCS ZC |
$3.00
|
EA |
|
|
| 8 | 000054 | Saddle 7/8" |
$1.81
|
|
||
| 9 | 100880 | 1/4" Plastic Spacer- Not used on 14" wide chairs | Not used on 14" wide chairs |
$3.00
|
|
|
| 10 | 105019 | 3/16" Plastic Spacer- Not used on 14" wide chairs | Not used on 14" wide chairs |
$0.61
|
|
|
| 11 | 100704 | M6 x 90 CLS8.8 DIN931 HHCS ZC |
$1.81
|
EA |
|
|
| 12 | 000001 | Lower Frame Pivot CAT |
$31.64
|
EA |
|
