Catalyst 5
Name: Catalyst 5: Catalyst Angle Adjustable Backrest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

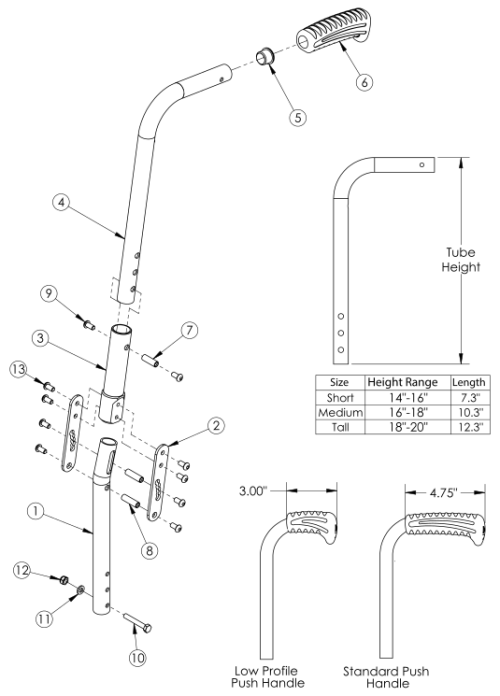

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 3, 7 - 13 | 500031 | Angle Adjustable Back Post Lower Assembly, Catalyst | $119.03 | EA | ||
| 4a, 5, 6a | 500032 | Angle Adjustable Back Post Short Upper Assembly with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present | $73.69 | EA | |
| 4b, 5, 6a | 500033 | Angle Adjustable Back Post Medium Upper Assembly with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present | $76.23 | EA | |
| 4c, 5, 6a | 500034 | Angle Adjustable Back Post Tall Upper Assembly with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present | $78.79 | EA | |
| 4d, 5, 6a | 113315 | Backtube Angle Adjustable Upper w/ Push Handle Short with Backcane Extension, Drum Brake, Catalyst 5/VX- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | $50.86 | EA | |
| 4e, 5, 6a | 113308 | Backtube Angle Adjustable Upper w/ Push Handle Medium with Backcane Extension, Drum Brake, Catalyst 5/VX- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | $50.86 | EA | |
| 4f, 5, 6a | 113309 | Backtube Angle Adjustable Upper w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | $50.86 | EA | |
| 4a, 5, 6b | 002755 | Angle Adjustable Back Post Short Upper Assembly with Low Profile Push Handle | $73.69 | EA | ||
| 4b, 5, 6b | 002756 | Angle Adjustable Back Post Medium Upper Assembly with Low Profile Push Handle | $76.23 | EA | ||
| 4c, 5, 6b | 002757 | Angle Adjustable Back Post Tall Upper Assembly with Low Profile Push Handle | $78.79 | EA | ||
| 1 | 000146 | Angle Adjustable Backrest Tube Lower CAT | $23.68 | EA | ||
| 2 | 000148 | Angle Adjustable Backrest Mounting Plate CAT | $8.77 | |||
| 3 | 000147 | Angle Adjustable Backrest Housing CAT | $109.66 | EA | ||
| 5 | 100803 | Tube End Plug 7/8" | $1.66 | EA | ||
| 6a | 109433 | Ergo Push Handle Grip 7/8" Standard with Instruction | N/A | EA | Please Call | |
| 6b | 109431 | Ergo Push Handle Grip 7/8" Low Profile with Instruction | N/A | EA | Please Call | |
| 7 | 000065 | M6 x 23.68 Threaded Barrel | $4.34 | EA | ||
| 8 | 000066 | M6 x 27 Threaded Barrel | $4.68 | |||
| 9 | 101184 | M6 x 10 BTN SHCS BLKZC w/Patch | $1.66 | EA | ||
| 10 | 100681 | M6 x 40 CLS8.8 DIN931 HHCS ZC | $1.66 | EA | ||
| 11 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 12 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 13 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch | $1.66 | EA |
