Catalyst 5
Name: Catalyst 5: Catalyst Stroller Handle Back Post (depth Adjustable)
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

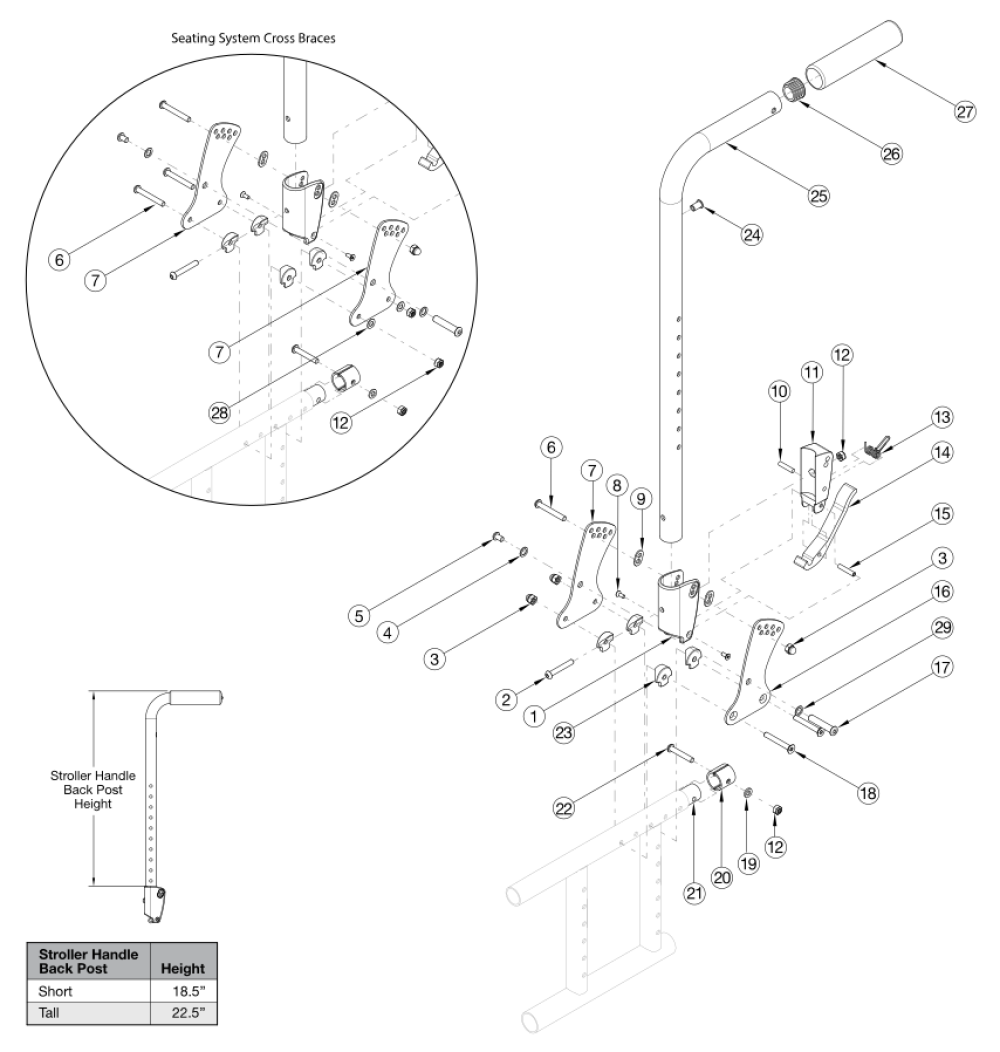

Part Picture
(Click on image to enlarge)
This backrest style was released February 8th, 2021
If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 15, 16a, 17 - 20, 22 - 24, 25a, 26, 27, 29 | 112597 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Short, Left Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $185.96 | EA | |
| 1 - 15, 16b, 17 - 20, 22 - 24, 25a, 26, 27, 29 | 112598 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Short, Right Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $185.96 | EA | |
| 1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27, 29 | 112599 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Tall, Left Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $185.96 | EA | |
| 1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27, 29 | 112600 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Tall, Right Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $185.96 | EA | |
| 1 - 15, 17 - 20, 22 - 24, 25a, 26, 27, 28 | 112601 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Seating Cross Braces, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $190.93 | EA | |
| 1 - 15, 17 - 20, 22 - 24, 25b, 26, 27, 28 | 112602 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Seating Cross Braces, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $190.93 | EA | |
| 24, 25a, 26, 27 | 506811 | Stroller Handle Back Post with Grip Assembly, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $52.15 | EA | |
| 24, 25b, 26, 27 | 506812 | Stroller Handle Back Post with Grip Assembly, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | $52.15 | EA | |
| 1 - 15, 16a, 17 - 20, 22 - 23, 29 | 112603 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Left Side | $140.28 | EA | ||
| 1 - 15, 16b, 17 - 20, 22 - 23, 29 | 112604 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Right Side | $140.28 | EA | ||
| 1 - 15, 17 - 20, 22 - 23, 28 | 112605 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, One Side | $145.25 | EA | ||
| 1 - 15, 17 - 20, 22 - 23, 28 | 112606 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, PAIR | $290.49 | EA | ||
| 1, 9 | 503834 | Cover Plate, Latch Insert Kit | $26.60 | EA | ||
| 2 | 100797 | M6 x 40 BHCS BLK ZC | $1.10 | EA | ||
| 3 | 100558 | M6 NYL INS Domed Cap L/N ZC | $1.10 | EA | ||
| 4 | 101701 | Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W | $2.76 | EA | ||
| 5 | 101184 | M6 x 10 BTN SHCS BLKZC w/Patch | $1.66 | EA | ||
| 6 | 100670 | M6 x 45 BTN SHCS BLK ZC | $1.66 | EA | ||
| 7 | 111833 | Depth Adjustable Back Plate, Folding- Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. | Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. | $24.37 | EA | |
| 8 | 101818 | M4 x 10 FHCS BLKZC w/Patch | $1.10 | EA | ||
| 9 | 001897 | Washer, Dual, PSA | $2.19 | EA | ||
| 10 | 102694 | Dowel Pin, M5 X 24, Blk Zn | $1.66 | EA | ||
| 11 | 001895 | Latch Insert, Folding Backrest | $6.93 | EA | ||
| 12 | 100658 | M6 Nylock Nut Blk Zn- Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. | Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. | $1.10 | EA | |
| 13 | 001896 | Spring, Backrest Latch | $0.56 | EA | ||
| 14 | 001893 | Latch Lever, Backrest | $14.01 | EA | ||
| 15 | 002513 | Threaded Barrel, 5mm OD x M4 | $2.04 | EA | ||
| 16a | 111835 | Depth Adjustable Back Plate, Inner, Folding, Left- Only used when standard cross braces are present | Only used when standard cross braces are present | $24.37 | EA | |
| 16b | 111834 | Depth Adjustable Back Plate, Inner, Folding, Right- Only used when standard cross braces are present | Only used when standard cross braces are present | $24.37 | EA | |
| 17 | 003284 | Binding Post, 8mm x 40mm x M6 | $1.53 | EA | ||
| 18 | 101592 | M6 x 45 CLS10.9 DIN7991 FHCS BLKZC | $2.76 | EA | ||
| 19 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 20 | 114443 | Tube Spacer, Black, 1" OD x .083" x .80 LG- Replacement for part number 001230 | Replacement for part number 001230 | $3.54 | EA | |
| 21 | 000605 | Depth Adjustable Frame Extension Tube, Catalyst/Spark | $39.00 | EA | ||
| 22 | 101811 | M6 x 35 BHCS Blk Zn | $1.10 | EA | ||
| 23 | 000612 | 1" Half Saddle Washer | $2.02 | |||
| 26 | 100804 | Tube End Plug 1" | $1.66 | EA | ||
| 28 | 102803 | Washer Flat .250 x .500 x .027 HX BLZ- Only used when seating system cross braces are present | Only used when seating system cross braces are present | $1.66 | EA | |
| 29 | 101861 | Nylon Washer 5/16 x 1/2 x .03- Only used when standard cross braces are present | Only used when standard cross braces are present | $0.56 | EA |
