Catalyst 5
Name: Catalyst 5: (discontinued) Catalyst Height Adjustable Depth Adjustable Backrest With Hardware
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

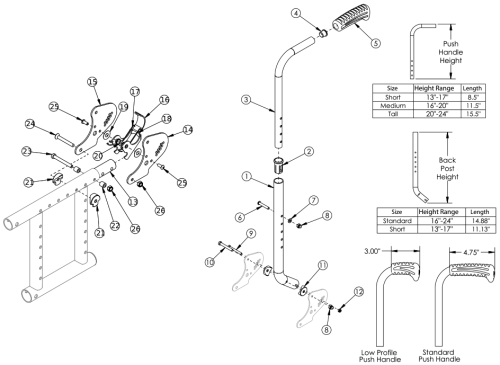

Part Picture
(Click on image to enlarge)
This backrest style discontinued February 8th, 2021
Not compatible with Drum Brake. A backrest retrofit to the Catalyst Height Adjustable Straight with Push Handle (Depth Adjustable) is required if retrofitting Drum Brake.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2, 3b, 4, 5a - 13, 14a, 15 - 26 | 111319 | Backrest Assembly Depth Adjustable Height Adjustable Medium w/ Standard Grip w/ Attaching Hardware - Left Side | N/A | EA | Please Call | |
| 1a, 2, 3b, 4, 5a - 13, 14b, 15 - 26 | 111320 | Backrest Assembly Depth Adjustable Height Adjustable Medium w/ Standard Grip w/ Attaching Hardware - Right Side |
$283.33
|
EA |
|
|
| 1a, 2, 3c, 4, 5a - 13, 14b, 15 - 26 | 111322 | Backrest Assembly Depth Adjustable Height Adjustable Tall w/ Standard Grip w/ Attaching Hardware - Right Side |
$283.33
|
EA |
|
|
| 1a, 2, 3b, 4, 5b - 13, 14b, 15 - 26 | 111326 | Backrest Assembly Depth Adjustable Height Adjustable Medium w/ Low Profile Grip w/ Attaching Hardware - Right Side |
$283.33
|
EA |
|
|
| 1a, 2, 3c, 4, 5b - 13, 14b, 15 - 26 | 111328 | Backrest Assembly Depth Adjustable Height Adjustable Tall w/ Low Profile Grip w/ Attaching Hardware - Right Side |
$283.33
|
EA |
|
|
| 1a, 2, 3b, 4, 5a - 8 | 501257 | Backrest Assembly Depth Adjustable Height Adjustable Medium w/ Standard Grip |
$138.65
|
EA |
|
|
| 1a, 2, 3c, 4, 5a - 8 | 501258 | Backrest Assembly Depth Adjustable Height Adjustable Tall w/ Standard Grip |
$138.65
|
EA |
|
|
| 1a, 2, 3b, 4, 5b - 8 | 503296 | Backrest Assembly Depth Adjustable Height Adjustable Medium w/ Low Profile Grip |
$138.65
|
EA |
|
|
| 1a, 2, 3c, 4, 5b - 8 | 503297 | Backrest Assembly Depth Adjustable Height Adjustable Tall w/ Low Profile Grip |
$138.65
|
EA |
|
|
| 3a, 4, 5a | 501654 | Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Standard Grip |
$86.62
|
EA |
|
|
| 3b, 4, 5a | 501655 | Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Standard Grip |
$86.62
|
EA |
|
|
| 3c, 4, 5a | 501656 | Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Standard Grip |
$86.62
|
EA |
|
|
| 3a, 4, 5b | 002762 | Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Low Profile Grip |
$86.62
|
EA |
|
|
| 3b, 4, 5b | 002763 | Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Low Profile Grip |
$86.62
|
EA |
|
|
| 3c, 4, 5b | 002764 | Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Low Profile Grip |
$86.62
|
EA |
|
|
| 13, 14b, 15 - 26 | 500739 | Depth Adjustable Backrest Hardware Assm Right CAT |
$169.00
|
EA |
|
|
| 13, 15 - 26 | 501227 | Depth Adjustable Backrest Hardware Assm SPARK/ OPEN SEAT |
$169.00
|
EA |
|
|
| 8 - 12 | 111164 | Depth Adjustable Backrest Attaching Hardware Kit |
$10.82
|
EA |
|
|
| 1a | 000986 | Depth Adjustable Straight Back Tube Medium/Tall CAT/ SPARK |
$41.00
|
EA |
|
|
| 2 | 000034 | Sleeve 3/4" x 1 1/2" |
$4.18
|
EA |
|
|
| 4 | 100638 | Tube End Plug 3/4" |
$2.41
|
EA |
|
|
| 5a | 109432 | Ergo Push Handle Grip 3/4" Standard with Instruction |
$7.65
|
EA |
|
|
| 5b | 109430 | Ergo Push Handle Grip 3/4" Low Profile with Instruction |
$7.65
|
EA |
|
|
| 6 | 101811 | M6 x 35 BHCS Blk Zn |
$1.19
|
EA |
|
|
| 7 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 8 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 9 | 101186 | M5 X 45 CLS12.9 DIN912 SHCS P/THD BLZ |
$3.60
|
EA |
|
|
| 10 | 101123 | M6 x 45 Low SHCS BLK ZC |
$1.81
|
EA |
|
|
| 11 | 000055 | Saddle 1" |
$1.81
|
EA |
|
|
| 12 | 100657 | M5 Nylock Nut Blk Zn |
$0.61
|
EA |
|
|
| 13 | 000605 | Depth Adjustable Frame Extension Tube, Catalyst/Spark |
$42.41
|
EA |
|
|
| 14b | 000604R | Depth Adjustable Backrest Plate Inside Right CAT/ SPARK |
$24.39
|
EA |
|
|
| 15 | 000611 | Depth Adjustable Backrest Side Plate CAT/ SPARK |
$24.39
|
|
||
| 16 | 000670 | Depth Adjustable Backrest Latch CAT/ SPARK |
$34.13
|
EA |
|
|
| 17 | 000613R | Depth Adjustable Backrest Latch Spring Right CAT/ SPARK |
$2.90
|
EA |
|
|
| 18 | 000613L | Depth Adjustable Backrest Latch Spring Left CAT/ SPARK |
$2.90
|
EA |
|
|
| 19 | 000428 | Wear Washer |
$3.00
|
EA |
|
|
| 20 | 000420 | Backrest Latch Pivot Bushing |
$2.92
|
|
||
| 21 | 000612 | 1" Half Saddle Washer |
$2.19
|
|
||
| 22 | 000240 | Backrest Latch Strike Bushing / Close Mount Handrim Spacer |
$4.08
|
|
||
| 23 | 101124 | M6 x 50 Low SHCS BLK ZC |
$1.81
|
EA |
|
|
| 24 | 101592 | M6 x 45 CLS10.9 DIN7991 FHCS BLKZC |
$3.00
|
EA |
|
|
| 25 | 100669 | M5 x 10 BTN SHCS BLKZC w/Patch |
$1.81
|
EA |
|
|
| 26 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
