Cr45
Name: CR45: Cr45 Forks And Stems
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

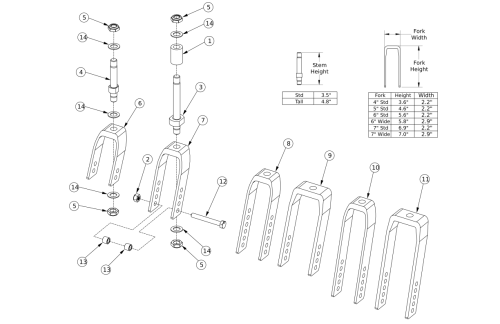

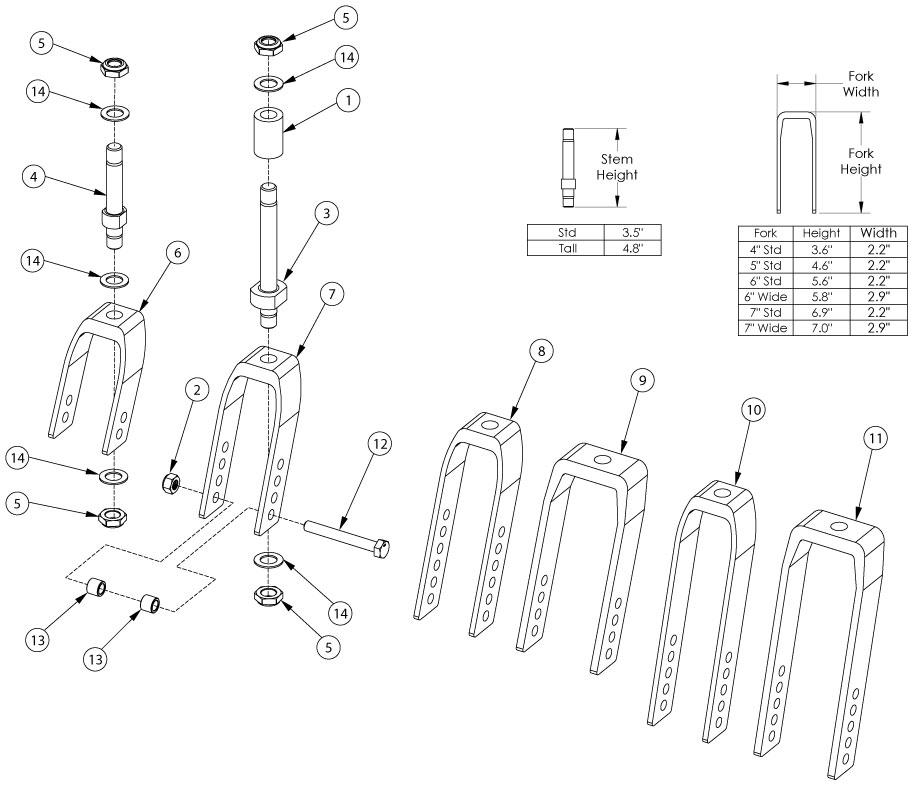

Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 4, 5, 6, 14 | 112904 | Fork Assembly, Black, 4" Std Stem, Tilt |
$74.06
|
EA |
|
|
| 4, 5, 7, 14 | 503816 | Fork Assembly 5" Std Stem, Tilt |
$65.65
|
EA |
|
|
| 4, 5, 8, 14 | 503814 | Fork Assembly 6" Std Stem, Tilt |
$65.65
|
EA |
|
|
| 4, 5, 9, 14 | 503817 | Fork Assembly 6" Wide Std Stem, Tilt- Only used with 2" wide casters. | Only used with 2" wide casters. |
$91.95
|
EA |
|
| 4, 5, 10, 14 | 503815 | Fork Assembly 7" Std Stem, Tilt |
$65.65
|
EA |
|
|
| 4, 5, 11, 14 | 503818 | Fork Assembly 7" Wide Std Stem, Tilt- Only used with 2" wide casters. | Only used with 2" wide casters. |
$91.95
|
EA |
|
| 1, 3, 5, 6, 14 | 506153 | Fork Assembly 4" Tall Stem, Tilt |
$82.31
|
EA |
|
|
| 1, 3, 5, 7, 14 | 506369 | Fork Assembly 5" Tall Stem Focus |
$139.16
|
EA |
|
|
| 1, 3, 5, 8, 14 | 506370 | Fork Assembly 6" Tall Stem Focus |
$139.16
|
EA |
|
|
| 1, 3, 5, 9, 14 | 506371 | Fork Assembly 6" Wide Tall Stem Focus- Only used with 2" wide casters. | Only used with 2" wide casters. |
$161.71
|
EA |
|
| 1, 3, 5, 10, 14 | 506372 | Fork Assembly 7" Tall Stem Focus |
$139.16
|
EA |
|
|
| 2, 12a, 13a | 502653 | Caster Attachment Hardware Kit CAT/FCS |
$8.82
|
EA |
|
|
| 2, 12b, 13b | 502654 | Caster Attachment Hardware Kit for 6" and 7" Wide Fork, CAT/FCS- Only used with 2" wide casters | Only used with 2" wide casters |
$19.34
|
EA |
|
| 1 | 002476 | Spacer, 3/4" OD x 1/2" ID x 1.23 |
$2.40
|
EA |
|
|
| 2 | 100659 | M8 Nylock Nut Blk Zn |
$1.17
|
EA |
|
|
| 1, 3, 5, 14 | 506374 | Caster Stem Tall, Adult Tilt |
$30.15
|
EA |
|
|
| 4, 5, 14 | 503819 | Caster Stem Standard, Focus |
$19.94
|
EA |
|
|
| 5 | 100529 | M12 x 1.25mm Lock Nut Black |
$1.50
|
EA |
|
|
| 5, 6 | 506492 | Caster Fork 4", Liberty |
$50.32
|
EA |
|
|
| 5, 7 | 503823 | Caster Fork 5" Focus |
$50.32
|
EA |
|
|
| 5, 8 | 503824 | Caster Fork 6" Focus |
$50.32
|
EA |
|
|
| 5, 9 | 503825 | Caster Fork 6" Wide Focus- Only used with 2" wide casters | Only used with 2" wide casters |
$72.89
|
EA |
|
| 5, 10 | 503826 | Caster Fork 7" Focus |
$50.32
|
EA |
|
|
| 5, 11 | 503827 | Caster Fork 7" Wide Focus- Only used with 2" wide casters | Only used with 2" wide casters |
$72.89
|
EA |
|
| 12a | 101829 | M8 x 65 HHCS Blk Zn |
$3.53
|
EA |
|
|
| 12b | 101831 | M8 x 80 HHCS Blk Zn- Only used with 2" wide casters | Only used with 2" wide casters |
$3.44
|
EA |
|
| 13a | 100792 | Caster Spacer D8 x D12 x 10mm / Close Mount Handrim Spacer- Used with all casters except 6x2 | Used with all casters except 6x2 |
$2.40
|
|
|
| 13b | 001246 | Caster Spacer Black 6 x 2 Poly .472ODX.319IDX.370LG- Only used with 6" x 2" casters | Only used with 6" x 2" casters |
$6.53
|
|
|
| 14 | 100682 | Washer 1/2" .518 x .875 x .047 F/W Black Zinc |
$1.17
|
EA |
|
