Ethos

Name: Ethos: Rigid Height Adjustable Back Post With Adjustable Height Rigidizer Bar
Manufacturer: Ki Mobility

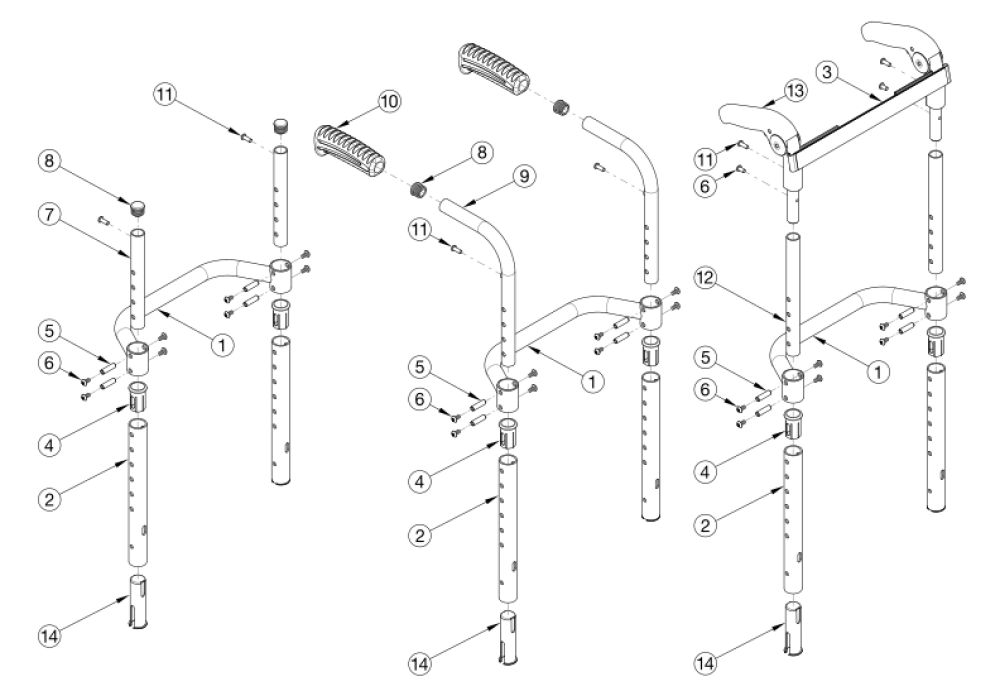

Rigid Height Adjustable Back Post With Adjustable Height Rigidizer Bar parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
8, 9a, 10a 502602 Standard Push Handle Assembly, Short- Used with short back height range
$39.09
EA
8, 9b, 10a 117064 Standard Push Handle Assembly, Medium- Used with medium back height range
$15.32
EA
8, 9c, 10a 117065 Standard Push Handle Assembly, Tall- Used with tall back height range
$16.50
EA
8, 9d, 10b 107205 Low Profile Push Handle Assembly, Short- Used with short back height range
$40.54
EA
8, 9e, 10b 117066 Low Profile Push Handle Assembly, Medium- Used with medium back height range
$14.99
EA
8, 9f, 10b 117067 Low Profile Push Handle Assembly, Tall- Used with tall back height range
$16.18
EA
6, 11, 12c, 13 117068 Fold Down Push Handle Assembly, Height Adjustable, Short- Used with short back height range
$109.38
EA
6, 11, 12b, 13 117069 Fold Down Push Handle Assembly, Height Adjustable, Medium- Used with medium back height range
$109.38
EA
6, 11, 12a, 13 117070 Fold Down Push Handle Assembly, Height Adjustable, Tall- Used with tall back height range
$109.38
EA
2a, 4 - 6, 14 117071 Height Adjustable Back Post with Sleeve Short- Accommodates the short back height range when the fold down push handle is present and the back height is 13" or lower.
$51.41
EA
2b, 4 - 6, 14 117072 Height Adjustable Back Post with Sleeve Medium- Accommodates the short back height range when the standard, low profile, bolt-on, or omit push handle is present. Accommodates the medium back height range when the fold down push handle is present and the back height is 14" or higher
$56.51
EA
2c, 4 - 6, 14 117073 Height Adjustable Back Post with Sleeve Tall- Accommodates the medium back height range when the standard, low profile, bolt-on, or omit push handle is present. Accommodates the tall back height range when the fold down push handle is present.
$61.45
EA
2d, 4 - 6, 14 116891 Height Adjustable Back Post with Sleeves Extra Tall- Accommodates the tall back height range when the standard, low profile, bolt-on, or omit push handle is present.
$49.76
EA
1a 000527 Adjustable Height Rigidizer Bar 12" Wide
$92.53
EA
1b 000528 Adjustable Height Rigidizer Bar 13" Wide
$92.53
EA
1c 000185 Adjustable Height Rigidizer Bar 14" Wide
$92.53
EA
1d 000186 Adjustable Height Rigidizer Bar 15" Wide
$92.53
EA
1e 000187 Adjustable Height Rigidizer Bar 16" Wide
$92.53
EA
1f 000188 Adjustable Height Rigidizer Bar 17" Wide
$92.53
EA
1g 000189 Adjustable Height Rigidizer Bar 18" Wide
$92.53
EA
1h 000190 Adjustable Height Rigidizer Bar 19" Wide
$92.53
EA
1i 000191 Adjustable Height Rigidizer Bar 20" Wide
$92.53
EA
2a 115325 Back Tube 7.25"
$27.14
2b 115326 Back Tube 9.25"
$32.25
2c 115327 Back Tube 11.25"
$37.19
2d 115340 Back Tube 13.25"
$41.05
3a 001749 Tension Strap Folding Handle 12-13 Wide
$21.86
EA
3b 001750 Tension Strap Folding Handle 14-15 Wide
$23.30
EA
3c 001751 Tension Strap Folding Handle 16-17 Wide
$24.60
EA
3d 001752 Tension Strap Folding Handle 18-19 Wide
$26.05
EA
3e 001753 Tension Strap Folding Handle 20-22 Wide
$27.38
EA
4 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
5 000073 M5 x 24 Threaded Barrel
$4.23
EA
6 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
7a 002422 Backtube Extension, 6.25"- Used with short back height range
$15.24
EA
7b 115314 Backtube Extension 9", Rigid- Used with medium or tall back height ranges
$51.11
EA
8 100638 Tube End Plug 3/4"
$2.36
EA
10a 109432 Ergo Push Handle Grip 3/4" Standard with Instruction
$7.76
EA
10b 109430 Ergo Push Handle Grip 3/4" Low Profile with Instruction N/A EA Please Call
11 100734 M5 x 16 PHMS ZC- Used to mount back upholstery and/or Fold Down Push Handle
$1.77
EA
13 001735 Folding Handle Assembly Rigid- This is to replace an existing Fold Down Push Handle. If wanting to retrofit to the Fold Down Push Handle, order one of the following complete assemblies based on back height range: 117068, 117069, 117070.
$52.92
EA
14 115540 Tube Sleeve
$4.63
