Ethos

Name: Ethos: Ethos Tubular Open Footrest
Manufacturer: Ki Mobility

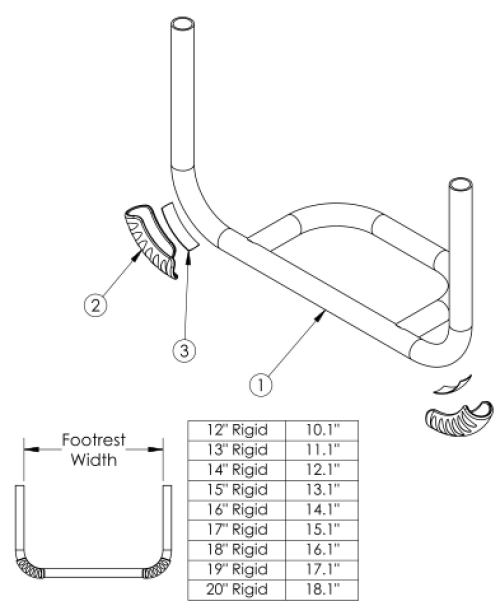

Ethos Tubular Open Footrest parts diagram
(Click on image to enlarge)

Footplate Length Measuring GuideUse Short Footrest if 0" taper and footrest length is 9" - 10.5" or if 1" or 2" taper and footrest length is 9" - 15.5" See Ethos Seat Frame page for hardware to attach footrest tubes to chair.
Pos. Part # Description Price UOM Buy
2, 3 501739 Footrest Protector w/ Instructions Kit Left Rigid
$15.00
EA
2, 3 501740 Footrest Protector w/ Instructions Kit Right Rigid
$15.00
EA
2, 3 501741 Footrest Protector w/ Instructions Kit PAIR Rigid
$30.00
EA
1a 004206 12" Open Loop Non-Tapered Footrest- Used on 12" wide with 0" taper
$38.79
EA
1b 004207 13" Open Loop Non-Tapered Footrest- Used on 13" wide with 0" taper
$39.01
EA
1c 004208 14" Open Loop Non-Tapered Footrest- Used on 14" wide with 0" taper
$40.06
EA
1d 004209 15" Open Loop Non-Tapered Footrest- Used on 15" wide with 0" taper
$40.49
EA
1e 004210 16" Open Loop Non-Tapered Footrest- Used on 16" wide with 0" taper
$40.91
EA
1f 004211 17" Open Loop Non-Tapered Footrest- Used on 17" wide with 0" taper
$41.65
EA
1g 004212 18" Open Loop Non-Tapered Footrest- Used on 18" wide with 0" taper
$42.29
EA
1h 004213 19" Open Loop Non-Tapered Footrest- Used on 19" wide with 0" taper
$43.14
EA
1i 004214 20" Open Loop Non-Tapered Footrest- Used on 20" wide with 0" taper
$43.56
EA
1j 004376 12" Open Loop Non-Tapered Footrest, Short- Used on 12" wide with 0" taper
$38.79
EA
1k 004377 13" Open Loop Non-Tapered Footrest, Short- Used on 13" wide with 0" taper
$39.01
EA
1l 004378 14" Open Loop Non-Tapered Footrest, Short- Used on 14" wide with 0" taper
$40.06
EA
1m 004379 15" Open Loop Non-Tapered Footrest, Short- Used on 15" wide with 0" taper
$40.49
EA
1n 004380 16" Open Loop Non-Tapered Footrest, Short- Used on 16" wide with 0" taper
$40.91
EA
1o 004381 17" Open Loop Non-Tapered Footrest, Short- Used on 17" wide with 0" taper
$41.65
EA
1p 004382 18" Open Loop Non-Tapered Footrest, Short- Used on 18" wide with 0" taper
$42.29
EA
1q 004383 19" Open Loop Non-Tapered Footrest, Short- Used on 19" wide with 0" taper
$43.14
EA
1r 004384 20" Open Loop Non-Tapered Footrest, Short- Used on 20" wide with 0" taper
$43.56
EA
1s 000214 Footrest Tubular 12" Rigid- Used on 14" wide with 1" taper and 16" wide with 2" taper
$84.44
EA
1t 000215 Footrest Tubular 13" Rigid- Used on 15" wide with 1" taper and 17" wide with 2" taper
$84.44
EA
1u 000216 Footrest Tubular 14" Rigid- Used on 16" wide with 1" taper and 18" wide with 2" taper
$84.44
EA
1v 000217 Footrest Tubular 15" Rigid- Used on 17" wide with 1" taper and 19" wide with 2" taper
$84.44
EA
1w 000218 Footrest Tubular 16" Rigid- Used on 18" wide with 1" taper and 20" wide with 2" taper
$84.44
EA
1x 000219 Footrest Tubular 17" Rigid- Used on 19" wide with 1" taper
$84.44
EA
1y 000220 Footrest Tubular 18" Rigid- Used on 20" wide with 1" taper
$84.44
EA
1z 004385 12" Footrest Tubular, Short- Used on 14" wide with 1" taper and 16" wide with 2" taper
$81.98
EA
1aa 004386 13" Footrest Tubular, Short- Used on 15" wide with 1" taper and 17" wide with 2" taper
$81.98
EA
1ab 004387 14" Footrest Tubular, Short- Used on 16" wide with 1" taper and 18" wide with 2" taper
$81.98
EA
1ac 004388 15" Footrest Tubular, Short- Used on 17" wide with 1" taper and 19" wide with 2" taper
$81.98
EA
1ad 004389 16" Footrest Tubular, Short- Used on 18" wide with 1" taper and 20" wide with 2" taper
$81.98
EA
1ae 004390 17" Footrest Tubular, Short- Used on 19" wide with 1" taper
$81.98
EA
1af 004391 18" Footrest Tubular, Short- Used on 20" wide with 1" taper
$81.98
EA
