Ethos
Name: Ethos: Ethos Single Sided Fork And Stem
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

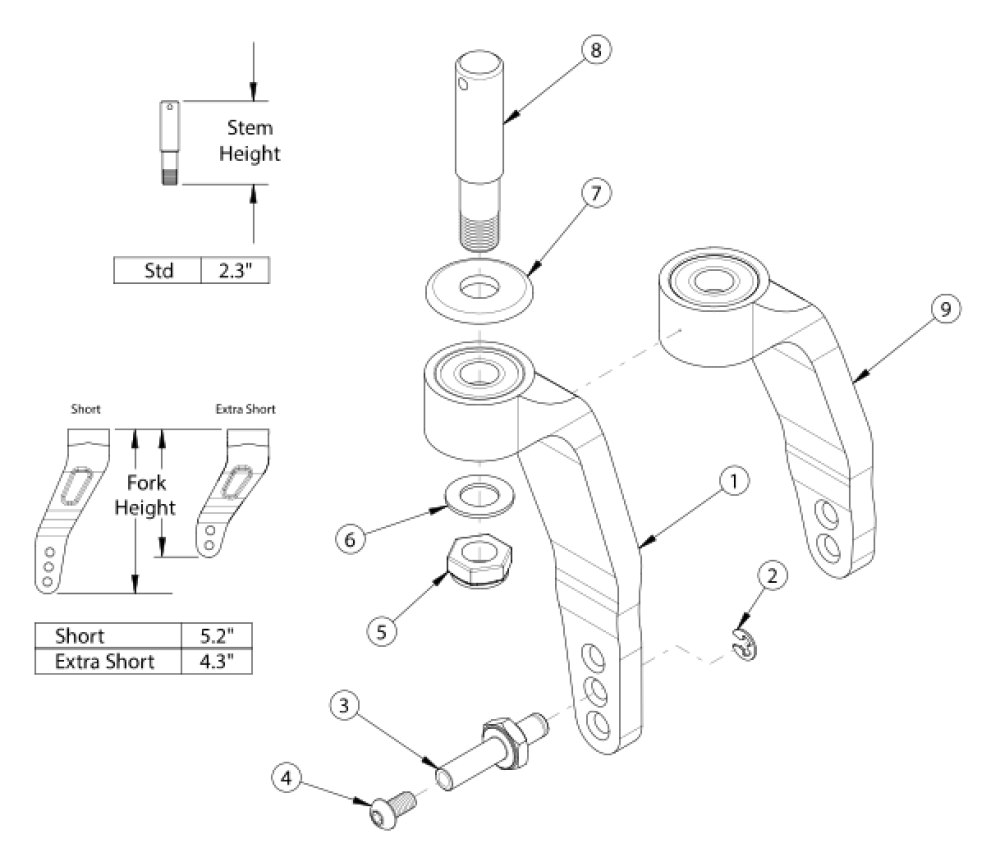

Part Picture
(Click on image to enlarge)
Ethos Caster and Fork Change Reference | Color Anodizing ReferenceIf retro-fitting to this fork, new caster sleeves may be required
New front base frame is required if retro-fitting from a Frog Leg Fork
Use extra short forks with 3"-5" casters. Use short forks with 6" casters.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 4, 7a | 501800 | Caster Fork Single Sided Short Right Black Anodized | $113.98 | EA | ||
| 1a, 2 - 4, 7b | 501800_ _ _ | Caster Fork Single Sided Short Right Color Anodized | $71.17 | EA | ||
| 1b, 2 - 4, 7a | 501801 | Caster Fork Single Sided Short Left Black Anodized | $113.98 | EA | ||
| 1b, 2 - 4, 7b | 501801_ _ _ | Caster Fork Single Sided Short Left Color Anodized | $71.17 | EA | ||
| 9a, 2 - 4, 7a | 111878 | Caster Fork Single Sided Extra Short Right Black Anodized, ETHOS- Cannot be used with 6" casters | Cannot be used with 6" casters | $113.98 | EA | |
| 9b, 2 - 4, 7a | 111879 | Caster Fork Single Sided Extra Short Left Black Anodized, ETHOS- Cannot be used with 6" casters | Cannot be used with 6" casters | $113.98 | EA | |
| 2 | 102364 | Side-Mount External Retaining Ring (E-Style) Black-Finish Steel | $0.56 | EA | ||
| 3 | 001354 | Axle Shaft for Single Sided Fork | $3.28 | EA | ||
| 4 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch | $1.66 | EA | ||
| 2 - 4 | 501799 | Single Sided Axle Assembly | $4.68 | EA | ||
| 5 | 101459 | 1/2-20 NTE JAM NYL INS L/N BLK ZC | $1.66 | EA | ||
| 6 | 100682 | Washer 1/2" .518 x .875 x .047 F/W Black Zinc | $1.10 | EA | ||
| 5, 6, 8 | 112905 | Single Sided Standard Stem Assembly- Replaced assembly part number 501797 | Replaced assembly part number 501797 | $84.38 | EA | |
| 7a | 001355 | Caster Bearing Cap Black Anodized | $3.87 | EA | ||
| 7b | 001355_ _ _ | Color Anodized Caster Bearing Cap | N/A | EA | Please Call |
