Name: Ethos: Ethos Hybrid Angle Adjustable Footrest
Manufacturer: Ki Mobility

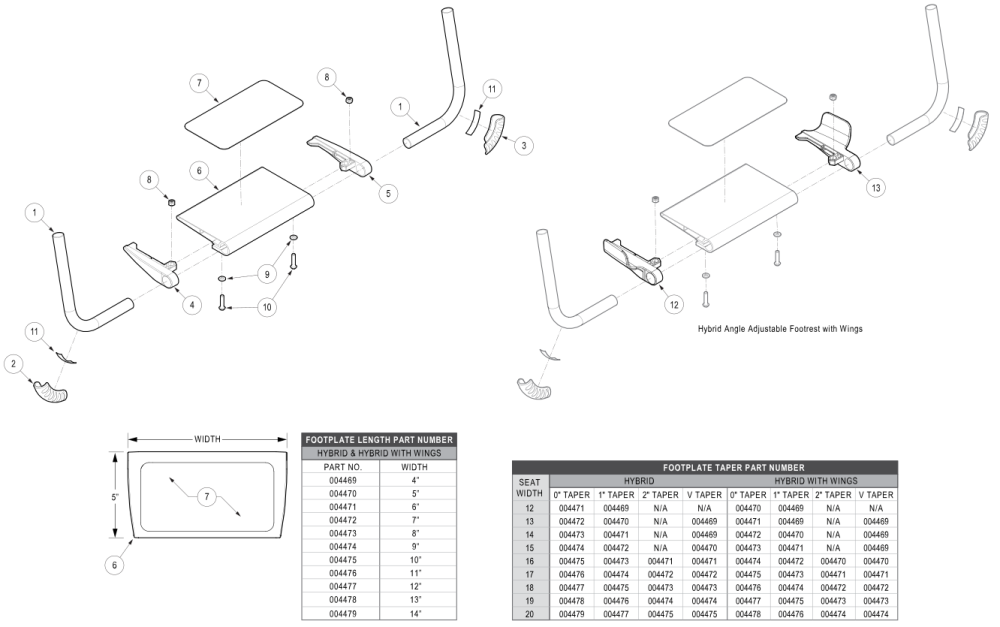

Ethos Hybrid Angle Adjustable Footrest parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
2, 11 501740 Footrest Protector w/ Instructions Kit Right Rigid
$14.49
EA
3, 11 501739 Footrest Protector w/ Instructions Kit Left Rigid
$14.49
EA
2, 3, 11 501741 Footrest Protector w/ Instructions Kit PAIR Rigid
$28.99
EA
1a 003964 Footrest Tube Angle Adjustable 4.65" Rigid- Used on 12" - 13" wide with 1" taper no matter what the footrest length
$7.15
1b 000221 Footrest Tube Angle Adjustable 5.6" Rigid- Used on 12" - 20" wide with 0" taper, 14" - 20" wide with 1" taper and 16" - 20" with 2" taper
$26.37
1c 004375 Footrest Tube Angle Adjustable, Short, 5.65" Rigid- Used on 12" - 20" with 0" taper, 14" - 20" with 1" taper and 16" - 20" with 2" taper
$25.59
1d 004118 V Front Footrest Tube, Standard- Used on 13" - 20" wide with V taper
$10.00
1e 004373 V Front Footrest Tube, Short- Used on 13" - 20" wide with V taper
$10.00
4 003949 Footrest Cap Right
$4.90
EA
5 003950 Footrest Cap Left
$4.90
EA
6a, 7a 004469 Hybrid Angle Adjustable Footplate 4" with Grip
$40.15
EA
6b, 7a 004470 Hybrid Angle Adjustable Footplate 5" with Grip
$42.09
EA
6c, 7b 004471 Hybrid Angle Adjustable Footplate 6" with Grip
$48.01
EA
6d, 7b 004472 Hybrid Angle Adjustable Footplate 7" with Grip
$50.56
EA
6e, 7c 004473 Hybrid Angle Adjustable Footplate 8" with Grip
$57.81
EA
6f, 7c 004474 Hybrid Angle Adjustable Footplate 9" with Grip
$61.18
EA
6g, 7d 004475 Hybrid Angle Adjustable Footplate 10" with Grip
$68.13
EA
6h, 7d 004476 Hybrid Angle Adjustable Footplate 11" with Grip
$72.21
EA
6i, 7e 004477 Hybrid Angle Adjustable Footplate 12" with Grip
$79.26
EA
6j, 7e 004478 Hybrid Angle Adjustable Footplate 13" with Grip
$81.30
EA
6k, 7e 004479 Hybrid Angle Adjustable Footplate 14" with Grip
$84.37
EA
8 100658 M6 Nylock Nut Blk Zn
$1.13
EA
9 100746 M6 Flat Washer Blk Zn
$1.71
EA
10 101593 M6 x 25 BTN SHCS BLKZC
$1.71
EA
12 003951 Footrest Cap Right with Wing
$6.84
EA
13 003952 Footrest Cap Left with Wing
$6.84
EA
