Name: Ethos: Ethos Angle Adjustable Footrest
Manufacturer: Ki Mobility

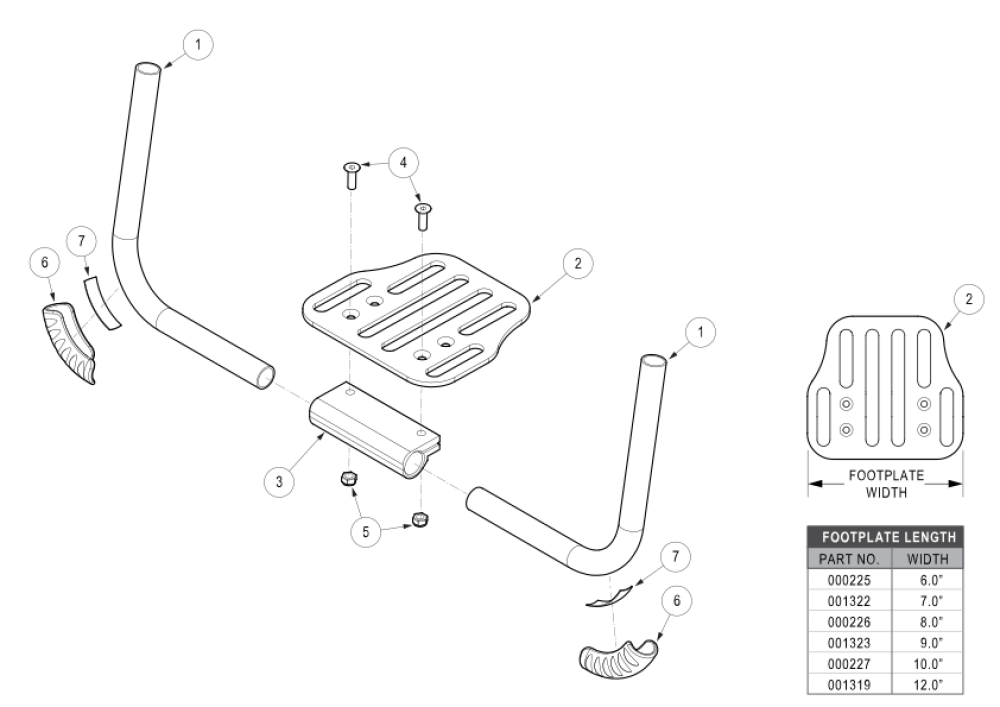

Ethos Angle Adjustable Footrest parts diagram
(Click on image to enlarge)

Footplate Length Measuring GuideUse Short Footrest if 0" taper and footrest length is 9" - 10.5" or if 1" or 2" taper and footrest length is 9" - 15.5" See Ethos Seat Frame page for hardware to attach footrest tubes to chair.
Pos.Part #DescriptionPriceBuy
1b, 2b, 3 - 5109715Angle Adjustable Footrest Assembly 12", Ethos- Used on 12" wide with 0" taper
$146.62
1a, 2a, 3 - 5109716Angle Adjustable Footrest Assembly 12", 1" Taper, Ethos- Used on 12" wide with 1" taper
$123.85
1b, 2c, 3 - 5109717Angle Adjustable Footrest Assembly 13", Ethos- Used on 13" wide with 0" taper, 14" wide with 1" taper or 16" with 2" taper
$165.70
1a, 2b, 3 - 5109718Angle Adjustable Footrest Assembly 13", 1" Taper, Ethos- Used on 13" wide with 1" taper
$111.78
1c, 2d, 3 - 5109719Angle Adjustable Footrest Assembly 14", Ethos- Used on 14" wide with 0" taper
$146.62
1c, 2e, 3 - 5109720Angle Adjustable Footrest Assembly 15", Ethos- Used on 15" wide with 0" taper, 16" wide with 1" taper or 18" wide with 2" taper
$172.71
1b, 2d, 3 - 5109721Angle Adjustable Footrest Assembly 15", 1" Taper, Ethos- Used on 15" wide with 1" taper or 17" wide with 2" taper
$146.62
1d, 2f, 3 - 5109722Angle Adjustable Footrest Assembly 16", Ethos- Used on 16" wide with 0" taper, 18" wide with 1" taper or 20" wide with 2" taper
$146.62
1d, 2f, 3 - 5109723Angle Adjustable Footrest Assembly 17", Ethos- Used on 17" wide with 0" taper or 19" wide with 1" taper
$146.62
1c, 2f, 3 - 5109724Angle Adjustable Footrest Assembly 17", 1" Taper, Ethos- Used on 17" wide with 1" taper or 19" wide with 2" taper
$146.62
1e, 2f, 3 - 5109725Angle Adjustable Footrest Assembly 18", Ethos- Used on 18" wide with 0" taper or 20" wide with 1" taper
$146.62
1e, 2f, 3 - 5109726Angle Adjustable Footrest Assembly 19", Ethos- Used on 19" wide with 0" taper
$146.62
1e, 2f, 3 - 5109727Angle Adjustable Footrest Assembly 20", Ethos- Used on 20" wide with 0" taper
$146.62
1g, 2b, 3 - 5109728Angle Adjustable Footrest Assembly Short 12", Ethos- Used on 12" wide with 0" taper
$145.22
1f, 2a, 3 - 5109729Angle Adjustable Footrest Assembly Short 12", 1" Taper, Ethos- Used on 12" wide with 1" taper
$123.85
1g, 2c, 3 - 5109730Angle Adjustable Footrest Assembly Short 13", Ethos- Used on 13" wide with 0" taper, 14" wide with 1" taper or 16" with 2" taper
$164.30
1f, 2b, 3 - 5109731Angle Adjustable Footrest Assembly Short 13", 1" Taper, Ethos- Used on 13" wide with 1" taper
$111.78
1h, 2d, 3 - 5109732Angle Adjustable Footrest Assembly Short 14", Ethos- Used on 14" wide with 0" taper
$145.22
1h, 2e, 3 - 5109733Angle Adjustable Footrest Assembly Short 15", Ethos- Used on 15" wide with 0" taper, 16" wide with 1" taper or 18" wide with 2" taper
$171.31
1g, 2d, 3 - 5109734Angle Adjustable Footrest Assembly Short 15", 1" Taper, Ethos- Used on 15" wide with 1" taper or 17" wide with 2" taper
$145.22
1i, 2f, 3 - 5109735Angle Adjustable Footrest Assembly Short 16", Ethos- Used on 16" wide with 0" taper, 18" wide with 1" taper or 20" wide with 2" taper
$145.22
1i, 2f, 3 - 5109736Angle Adjustable Footrest Assembly Short 17", Ethos- Used on 17" wide with 0" taper or 19" wide with 1" taper
$145.22
1h, 2f, 3 - 5109737Angle Adjustable Footrest Assembly Short 17", 1" Taper, Ethos- Used on 17" wide with 1" taper or 19" wide with 2" taper
$145.22
1j, 2f, 3 - 5109738Angle Adjustable Footrest Assembly Short 18", Ethos- Used on 18" wide with 0" taper or 20" wide with 1" taper
$145.22
1j, 2f, 3 - 5109739Angle Adjustable Footrest Assembly Short 19", Ethos- Used on 19" wide with 0" taper
$145.22
1j, 2f, 3 - 5109740Angle Adjustable Footrest Assembly Short 20", Ethos- Used on 20" wide with 0" taper
$145.22
6, 7501739Footrest Protector w/ Instructions Kit Left Rigid
$13.14
6, 7501740Footrest Protector w/ Instructions Kit Right Rigid
$13.14
6, 7501741Footrest Protector w/ Instructions Kit PAIR Rigid
$26.28
1a003964Footrest Tube Angle Adjustable 4.65" Rigid ()- Used on 12" - 13" wide with 1" taper
$6.48
1b000221Footrest Tube Angle Adjustable 5.6" Rigid ()- Used on 12" - 13" wide with 0" taper, 14" - 15" wide with 1" taper or 16" - 17" wide with 2" taper
$23.90
1c000222Footrest Tube Angle Adjustable 6.6" Rigid ()- Used on 14" - 15" wide with 0" taper, 16" - 17" wide with 1" taper or 18" - 19" wide with 2" taper
$23.90
1d000223Footrest Tube Angle Adjustable 7.6" Rigid ()- Used on 16" - 17" wide with 0" taper, 18" - 19" wide with 1" taper or 20" wide with 2" taper
$23.90
1e000224Footrest Tube Angle Adjustable 8.6" Rigid ()- Used on 18" - 20" wide with 0" taper or 20" wide with 1" taper
$23.90
1f004374Footrest Tube Angle Adjustable, Short, 4.65" Rigid ()- Used on 12" - 13" wide with 1" taper
$6.48
1g004375Footrest Tube Angle Adjustable, Short, 5.65" Rigid ()- Used on 12" - 13" wide with 0" taper, 14" - 15" wide with 1" taper or 16" - 17" wide with 2" taper
$23.20
1h005264Footrest Tube Angle Adjustable, Short, 6.65" Rigid ()- Used on 14" - 15" wide with 0" taper, 16" - 17" wide with 1" taper or 18" - 19" wide with 2" taper
$23.20
1i005265Footrest Tube Angle Adjustable, Short, 7.65" Rigid ()- Used on 16" - 17" wide with 0" taper, 18" - 19" wide with 1" taper or 20" wide with 2" taper
$23.20
1j005266Footrest Tube Angle Adjustable, Short, 8.65" ()- Used on 18" - 20" wide with 0" taper or 20" wide with 1" taper
$23.20
2a000225Footrest Platform Angle Adjustable 6"- Used on 12" wide with 1" taper
$77.07
2b001322Footrest Platform Angle Adjustable 7"- Used on 12" wide with 0" taper or 13" wide with 1" taper
$65.00
2c000226Footrest Platform Angle Adjustable 8"- Used on 13" wide with 0" taper, 14" wide with 1" taper or 16" with 2" taper
$84.08
2d001323Footrest Platform Angle Adjustable 9"- Used on 14" wide with 0" taper, 15" wide with 1" taper or 17" wide with 2" taper
$65.00
2e000227Footrest Platform Angle Adjustable 10"- Used on 15" wide with 0" taper, 16" wide with 1" taper or 18" wide with 2" taper
$91.09
2f001319Footrest Platform Angle Adjustable 12"- Used on 16" - 20" wide with 0" taper, 17" - 20" wide with 1" taper or 19" - 20" wide with 2" taper
$65.00
3100789Footrest Adjustable Clamp 5"
$28.66
4100662M6 x 25 FSHCS BLK ZC ()
$1.55
5100658M6 Nylock Nut Blk Zn ()
$1.03
