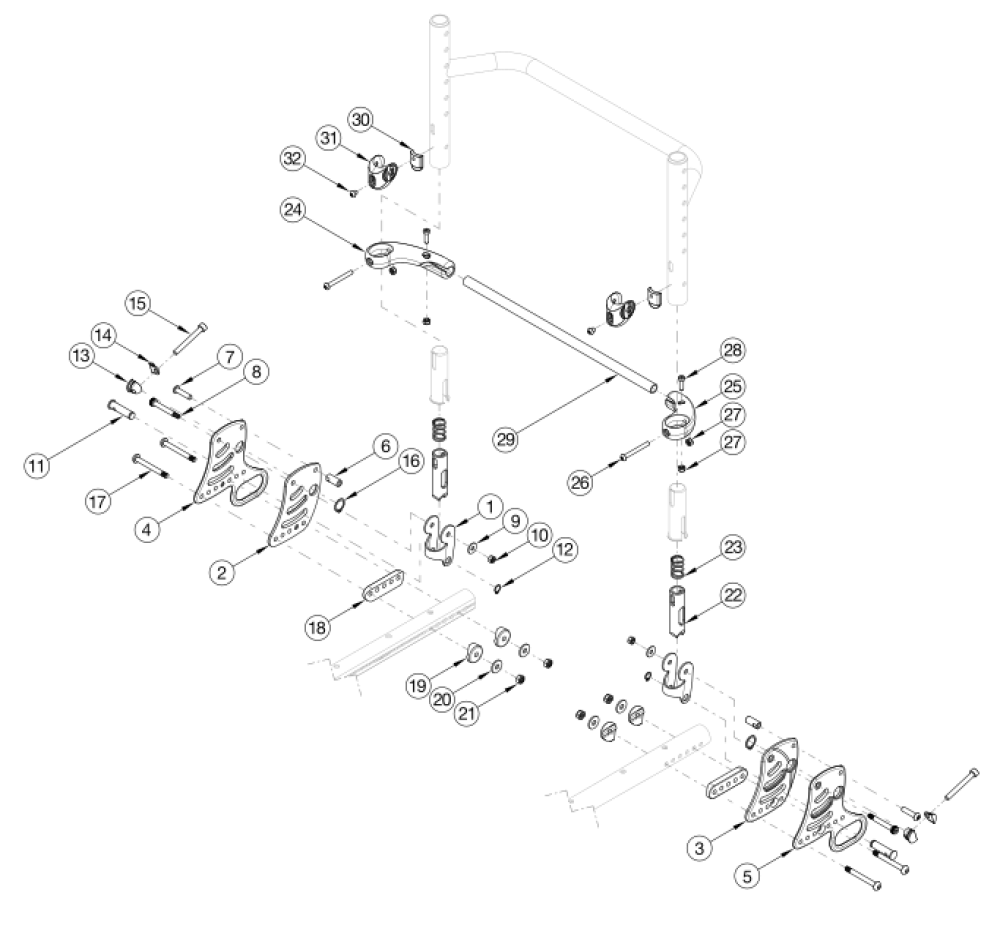

Pos. | Part # | Description | Remarks | Price | Buy |
---|---|---|---|---|---|
1a, 1b, 2, 3a, 4a, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b | 109680 | Ethos Backrest Bracket Mount Kit, Black Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | $398.12 | |
1a, 1b, 2, 3b, 4b, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b | 109681_ _ _ | Ethos Backrest Bracket Mount Kit, Color Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | $422.42 | |
1a, 1b, 2, 3c, 4c, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b | 109682 | Ethos Transit Backrest Bracket Mount Kit, Black Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. | $339.14 | |
1a | 000055 | Saddle 1" ()- If swing away arms are not present, use quantity 4. Use quantity 2 if swing away arms are present. | If swing away arms are not present, use quantity 4. Use quantity 2 if swing away arms are present. | $1.55 | |
1b | 004117 | Saddle M6 ID x 1 OD x .25 T ()- If swing away arms are present, use quantity 2 of 000055 and quantity 2 of 004117 | If swing away arms are present, use quantity 2 of 000055 and quantity 2 of 004117 | $0.46 | |
2 | 001762 | Arc Adjustment Cam () | $3.90 | ||
3a | 003711 | Back Bracket Right, Black Anodized | $55.69 | ||
3b | 003711_ _ _ | Color Anodized Back Bracket, Right | N/A | Please Call | |
4a | 003712 | Back Bracket Left, Black Anodized | $55.69 | ||
4b | 003712_ _ _ | Color Anodized Back Bracket, Left | N/A | Please Call | |
4c | 109296 | Back Bracket with Transit, Black, Rigid | $26.20 | ||
5 | 003713 | Strike Hex () | $5.15 | ||
6 | 003734 | Pivot Assembly () | $57.23 | ||
6, 21 | 108107 | Backrest Pivot Replacement Kit w/Instruction (PAIR) | $114.46 | ||
7a | 003739 | Backrest Release Bar 12" Wide, Black Anodized | $20.60 | ||
7b | 003740 | Backrest Release Bar 13" Wide, Black Anodized | $20.60 | ||
7c | 003741 | Backrest Release Bar 14" Wide, Black Anodized | $20.60 | ||
7d | 003742 | Backrest Release Bar 15" Wide, Black Anodized | $20.60 | ||
7e | 003743 | Backrest Release Bar 16" Wide, Black Anodized | $20.60 | ||
7f | 003744 | Backrest Release Bar 17" Wide, Black Anodized | $20.60 | ||
7g | 003745 | Backrest Release Bar 18" Wide, Black Anodized | $20.60 | ||
7h | 003746 | Backrest Release Bar 19" Wide, Black Anodized | $20.60 | ||
7i | 003747 | Backrest Release Bar 20" Wide, Black Anodized | $20.60 | ||
7j | 109642_ _ _ | Ethos Backrest Release Bar 12" Wide, Painted | $50.00 | ||
7k | 109643_ _ _ | Ethos Backrest Release Bar 13" Wide, Painted | $50.00 | ||
7l | 109644_ _ _ | Ethos Backrest Release Bar 14" Wide, Painted | $50.00 | ||
7m | 109645_ _ _ | Ethos Backrest Release Bar 15" Wide, Painted | $50.00 | ||
7n | 109646_ _ _ | Ethos Backrest Release Bar 16" Wide, Painted | $50.00 | ||
7o | 109647_ _ _ | Ethos Backrest Release Bar 17" Wide, Painted | $50.00 | ||
7p | 109648_ _ _ | Ethos Backrest Release Bar 18" Wide, Painted | $50.00 | ||
7q | 109649_ _ _ | Ethos Backrest Release Bar 19" Wide, Painted | $50.00 | ||
7r | 109650_ _ _ | Ethos Backrest Release Bar 20" Wide, Painted | $50.00 | ||
7a, 8 | 107190 | Backrest Release Bar Kit, 12" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7b, 8 | 107191 | Backrest Release Bar Kit, 13" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7c, 8 | 107192 | Backrest Release Bar Kit, 14" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7d, 8 | 107193 | Backrest Release Bar Kit, 15" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7e, 8 | 107194 | Backrest Release Bar Kit, 16" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7f, 8 | 107195 | Backrest Release Bar Kit, 17" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7g, 8 | 107196 | Backrest Release Bar Kit, 18" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7h, 8 | 107197 | Backrest Release Bar Kit, 19" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7i, 8 | 107198 | Backrest Release Bar Kit, 20" Wide, Black Anodized with Backrest Release Bar Ends | $28.12 | ||
7j, 8 | 109654_ _ _ | Ethos Backrest Release Bar Kit 12" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7k, 8 | 109655_ _ _ | Ethos Backrest Release Bar Kit 13" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7l, 8 | 109656_ _ _ | Ethos Backrest Release Bar Kit 14" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7m, 8 | 109657_ _ _ | Ethos Backrest Release Bar Kit 15" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7n, 8 | 109658_ _ _ | Ethos Backrest Release Bar Kit 16" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7o, 8 | 109659_ _ _ | Ethos Backrest Release Bar Kit 17" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7p, 8 | 109660_ _ _ | Ethos Backrest Release Bar Kit 18" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7q, 8 | 109661_ _ _ | Ethos Backrest Release Bar Kit 19" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
7r, 8 | 109662_ _ _ | Ethos Backrest Release Bar Kit 20" Wide, Painted with Backrest Release Bar Ends | $55.72 | ||
8 | 003750 | Backrest Release Bar End () | $2.86 | ||
9a | 003846 | M6 x 50 BHCS, Custom, Blk Zc ()- Used if Swing Away Arms are not present | Used if Swing Away Arms are not present | $14.33 | |
9b | 003232 | M6 x 55 BHCS Blk Zc ()- Used if Swing Away Arms are present | Used if Swing Away Arms are present | $8.76 | |
10a | 003848 | Back Bracket Saddle 1 1/8" ()- Used if Swing Away Arms are not present | Used if Swing Away Arms are not present | $1.06 | |
10b | 004116 | Saddle, Swing Away Arm, 1 1/8" Tube ()- Used if Swing Away Arms are present | Used if Swing Away Arms are present | $1.11 | |
11 | 003849 | Saddle For Dimple 1 1/8" () | $0.43 | ||
12 | 100658 | M6 Nylock Nut Blk Zn () | $1.03 | ||
13 | 100746 | M6 Flat Washer Blk Zn () | $1.55 | ||
14 | 101593 | M6 x 25 BTN SHCS BLKZC () | $1.55 | ||
15 | 101835 | M6 Lock Washer Blk Zn () | $0.52 | ||
16 | 101853 | M6 Washer Blk Zn () | $0.52 | ||
17 | 102614 | M5 Split Lock Washer BLK ZC () | $0.52 | ||
18 | 102621 | M5 x 8 BHCS BLK ZC () | $0.52 | ||
19 | 103022 | M5 Washer, Blk Zn () | $0.52 | ||
20 | 103227 | M6 x 30 Long Shoulder BHCS BZ () | $4.12 | ||
21 | 103279 | #8-16 Tri-Lobular Plastic Screw BZ () | $0.52 | ||
22 | 103283 | M5 Top Lock Nut BZ () | $0.52 | ||
23a | 103284 | M6 x 35 Shoulder Bolt BZ ()- Used if Swing Away Arms are not present | Used if Swing Away Arms are not present | $4.64 | |
23b | 103397 | M6 x 40 Shoulder Screw BLK ZC ()- Used if Swing Away Arms are present | Used if Swing Away Arms are present | $2.50 |
