Catalyst 4

Name: Catalyst 4: Catalyst 4 Anti-tip Receiver
Manufacturer: Ki Mobility

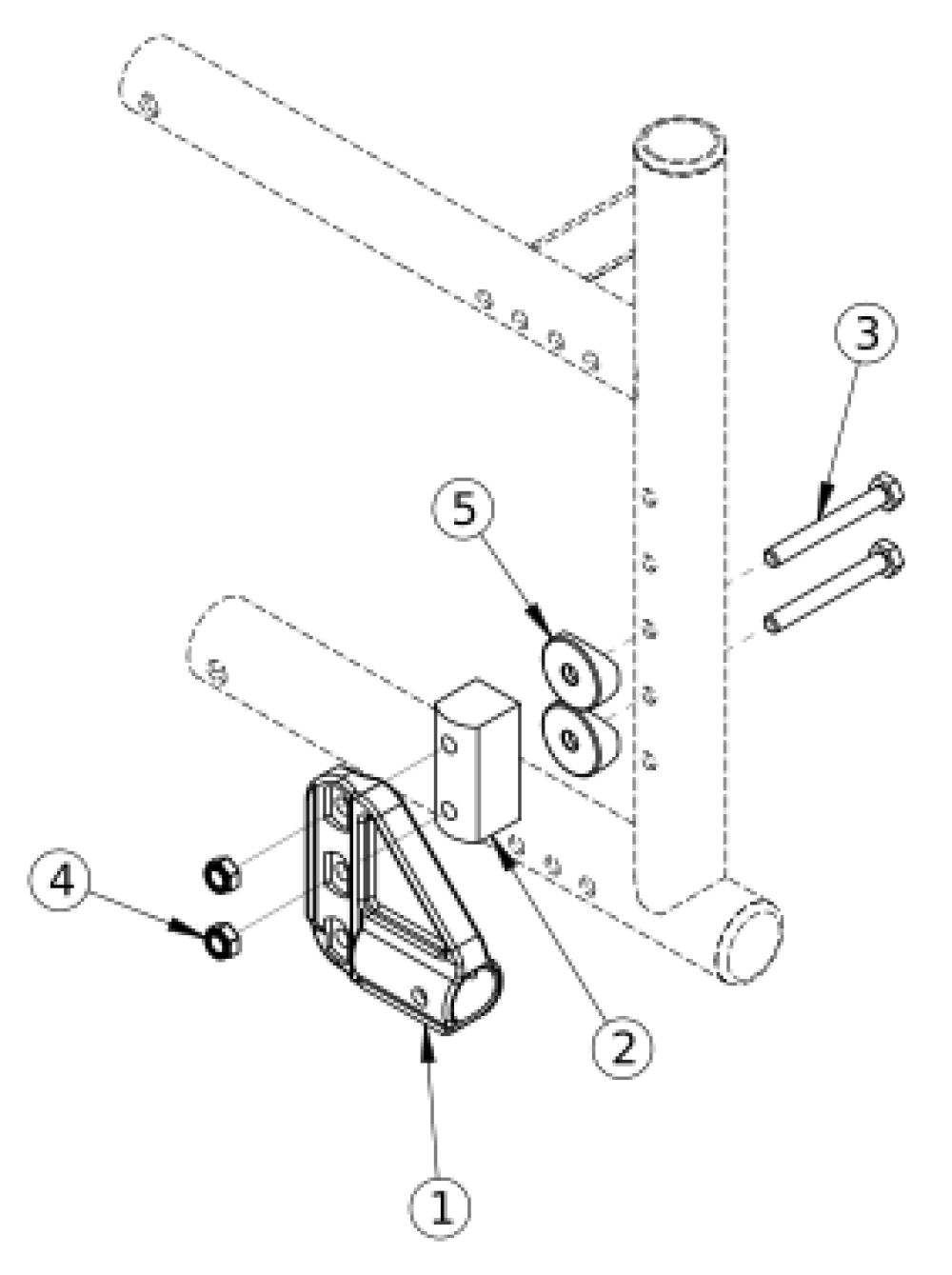

Catalyst 4 Anti-tip Receiver parts diagram

(Click on image to enlarge)

Attachments:

Catalyst 4 Anti-tip Receiver

Pos.	Part #	Description	Remarks	Price	Buy
1a	000046	Anti Tip Receiver CAT- Used prior to November 14, 2018 invoice date	Used prior to November 14, 2018 invoice date	N/A	Please Call
1b	004539	Anti Tip Receiver, Catalyst- Used if chair has an invoice date after November 13, 2018. Replaced 000046	Used if chair has an invoice date after November 13, 2018. Replaced 000046	$14.64
2	002329	Amputee Anti-Tip Spacer CAT- Used when Anti-Tips are present with Reverse Mount Offset Axle Bracket	Used when Anti-Tips are present with Reverse Mount Offset Axle Bracket	$52.47
3a	101826	M6 x 50 HHCS Blk Zn- Used when Amputee Anti-Tip Spacer is not present	Used when Amputee Anti-Tip Spacer is not present	$2.10
3b	100544	M6 x 75 CLS 8.8 DIN931 HHCS ZC ()- Used with Amputee Anti-Tip Spacer	Used with Amputee Anti-Tip Spacer	$1.58
4	100658	M6 Nylock Nut Blk Zn		$1.05
5	000056	Saddle 1 1/8" ()- Only used with Amputee Anti-Tip Spacer	Only used with Amputee Anti-Tip Spacer	$1.58
