Catalyst 4 Replacement Parts by Ki Mobility

Loading...Catalyst 4

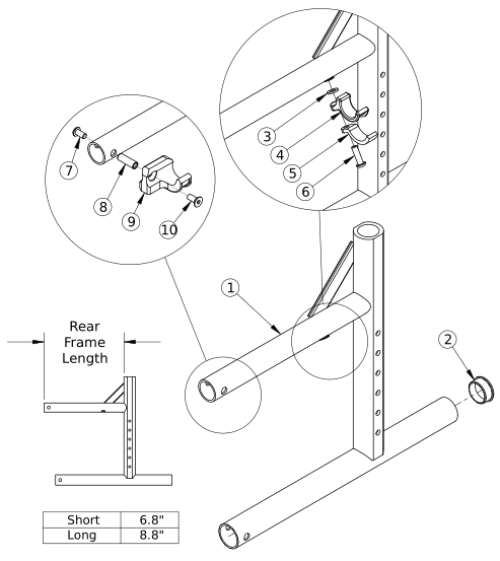

Name: Catalyst 4: Catalyst 4 Rear Frame
Manufacturer: Ki Mobility

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	Buy
3, 4, 5, 6	501005	Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$17.06
7, 8, 9a, 10	111569	Seat Hook and Support Hardware Kit, Seating System, Right Side, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$28.98
7, 8, 9b, 10	111570	Seat Hook and Support Hardware Kit, Seating System, Left Side, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$28.98
1a, 2	100184_ _ _	Frame Assm Cat 4 Rear Left Short _ _ _		N/A	Please Call
1c, 2	100182_ _ _	Frame Assm Cat 4 Rear Right Short _ _ _		N/A	Please Call
1b, 2	100185_ _ _	Frame Assm Cat 4 Rear Left Long _ _ _		N/A	Please Call
1d, 2	100183_ _ _	Frame Assm Cat 4 Rear Right Long _ _ _		N/A	Please Call
2	100532	Tube End Plug 1 1/8"		$2.58
3	100831	1/2" Washer OD .040" Thick		$1.55
4	000003	Seat Hook CAT		$7.55
5	000004	Seat Hook Support CAT		$6.42
6	100668	M6 x 20 CLS10.9 BTN SHCS ZC w/Patch		$1.55
7	100667	M6 x 12 BTN SHCS BLKZC w/Patch		$1.55
8	000065	M6 x 23.68 Threaded Barrel		$4.05
9a	000960R	Seat Hook Open Frame Right Front Frame / Left Rear Frame CAT		$21.32
9b	000960L	Seat Hook Open Frame Left Front Frame / Right Rear Frame CAT		$21.32
10	101594	M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch		$2.06
