Catalyst 4

Name: Catalyst 4: Catalyst Swing Away Armrest
Manufacturer: Ki Mobility

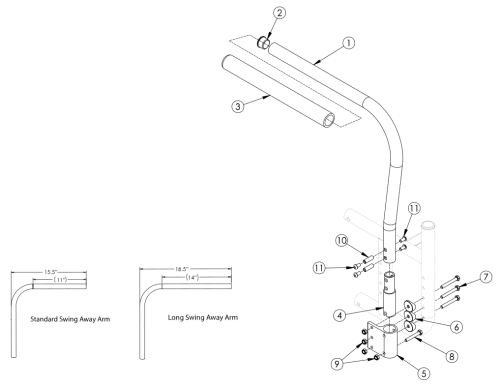

Catalyst Swing Away Armrest parts diagram
(Click on image to enlarge)

For call out #7 - please reference the "Catalyst Axle Plate" parts manual pages to ensure the proper hardware is selected for the chair configuration. If retrofitting, receivers are needed.
Pos. Part # Description Price UOM Buy
1a, 2 - 4, 10, 11 500500 Tubular Swing Away Armrest Assembly Left CAT
$140.83
EA
1b, 2 - 4, 10, 11 500501 Tubular Swing Away Armrest Assembly Right CAT
$140.83
EA
1a, 1b, 2 - 4, 10, 11 500588 Tubular Swing Away Armrest Assembly Pair CAT
$281.65
EA
1c, 2 - 4, 10, 11 501480 Tubular Long Swing Away Armrest Assembly Left CAT- Check Invoice for length when replacing armrests
$140.83
EA
1d, 2 - 4, 10, 11 501481 Tubular Long Swing Away Armrest Assembly Right CAT- Check Invoice for length when replacing armrests
$140.83
EA
1c, 1d, 2 - 4, 10, 11 501482 Tubular Long Swing Away Armrest Assembly Pair CAT- Check Invoice for length when replacing armrests
$281.65
EA
5, 6, 7, 8, 9 502283 Tubular Swing Away Armrest Receiver Kit CAT
$63.83
EA
1a, 2 - 11 502284 Tubular Swing Away Armrest w/ Receiver Kit Left CAT
$204.13
EA
1b, 2 - 11 502285 Tubular Swing Away Armrest w/ Receiver Kit Right CAT
$204.13
EA
1a, 1b, 2 - 11 502286 Tubular Swing Away Armrest w/ Receiver Kit PAIR CAT
$408.26
EA
1c, 2 - 11 502287 Tubular Long Swing Away Armrest w/ Receiver Kit Left CAT- Check Invoice for length when replacing armrests
$200.00
EA
1d, 2 - 11 502288 Tubular Long Swing Away Armrest w/ Receiver Kit Right CAT- Check Invoice for length when replacing armrests
$200.00
EA
1c, 1d, 2 - 11 502289 Tubular Long Swing Away Armrest w/ Receiver Kit PAIR CAT- Check Invoice for length when replacing armrests
$400.03
EA
2 100804 Tube End Plug 1"
$1.77
EA
4 000267 Armrest Swing Away Lower CAT
$38.24
EA
5 000044 Armrest Swing Away Receiver Cat
$49.15
EA
6 000056 Saddle 1 1/8"
$1.77
7 100674 M6 x 45 CLS10.9 DIN931 HHCS ZC
$1.77
8 100681 M6 x 40 CLS8.8 DIN931 HHCS ZC
$1.77
EA
9 100658 M6 Nylock Nut Blk Zn
$1.17
EA
10 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
11 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
