Catalyst 4

Name: Catalyst 4: Catalyst 4 Height Adjustable Flip Back T-arm
Manufacturer: Ki Mobility

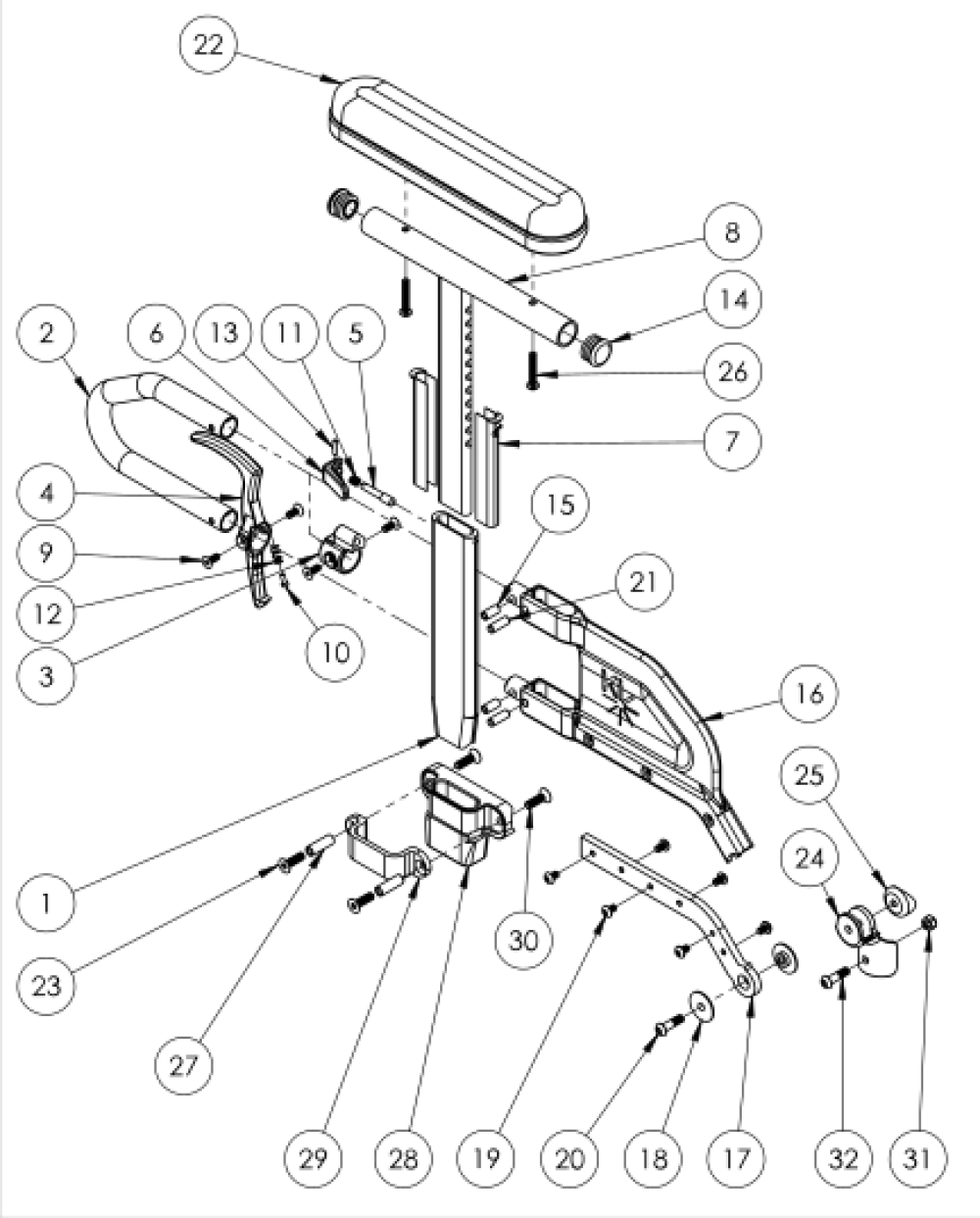

Catalyst 4 Height Adjustable Flip Back T-arm parts diagram
(Click on image to enlarge)

Short Side Shield used with 14"-17" Seat Depths. Long Side Shield used with 18"-20" Seat Depths.
Pos.Part #DescriptionPriceBuy
1 - 7, 9 - 13, 15, 16a, 17a, 18 - 21004158Height Adjustable Flip Back T-Arm Lower Assembly Short- Does not include t-arm upper, arm pad or arm pad screws
$56.26
1 - 7, 9 - 13, 15, 16b, 17b, 18 - 21004159Height Adjustable Flip Back T-Arm Lower Assembly Long- Does not include t-arm upper, arm pad or arm pad screws
$56.26
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21003459Height Adjustable Flip Back T-Arm Short Desk- Does not include arm pad or arm pad screws
$131.27
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21003460Height Adjustable Flip Back T-Arm Short Full- Does not include arm pad or arm pad screws
$131.27
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21003461Height Adjustable Flip Back T-Arm Long Desk- Does not include arm pad or arm pad screws
$131.27
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21003462Height Adjustable Flip Back T-Arm Long Full- Does not include arm pad or arm pad screws
$131.27
1 - 7, 9 - 13, 15, 16a, 17a, 18 - 21, 24, 25505617Height Adjustable Flip Back T-Arm Short Retrofit Assembly, Catalyst 4- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side.
$193.15
1 - 7, 9 - 13, 15, 16b, 17b, 18 - 21, 24, 25505618Height Adjustable Flip Back T-Arm Long Retrofit Assembly, Catalyst 4- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side.
$195.25
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 24 - 26, 31, 32505266Height Adjustable Flip Back T-Arm Short Desk with Standard Pad Assembly, Catalyst 4
$175.91
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 24 - 26, 31, 32505267Height Adjustable Flip Back T-Arm Short Full with Standard Pad Assembly, Catalyst 4
$175.91
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 24 - 26, 31, 32505268Height Adjustable Flip Back T-Arm Long Desk with Standard Pad Assembly, Catalyst 4
$175.91
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 24 - 26, 31, 32505269Height Adjustable Flip Back T-Arm Long Full with Standard Pad Assembly, Catalyst 4
$175.91
1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 23 - 32505270Height Adjustable Flip Back T-Arm Short Desk with Standard Pad and Receiver Assembly, Catalyst 4
$235.21
1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 23 - 32505271Height Adjustable Flip Back T-Arm Short Full with Standard Pad and Receiver Assembly, Catalyst 4
$235.21
1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 23 - 32505272Height Adjustable Flip Back T-Arm Long Desk with Standard Pad and Receiver Assembly, Catalyst 4
$235.21
1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 23 - 32505273Height Adjustable Flip Back T-Arm Long Full with Standard Pad and Receiver Assembly, Catalyst 4
$235.21
18, 20, 24, 25003730Armrest Flip Back Height Adj T-Arm Hinge Assembly Catalyst 4
$21.00
3, 5, 6, 9, 11, 13504560Height Adjustable Flip Back T-Arm Latch Assembly
$45.43
4, 9, 10, 12504561Height Adjustable Flip Back T-Arm Release Lever Assembly
$11.63
23, 27 - 30501730Height Adj T-Arm Receiver Assm 1" CAT
$55.64
31, 32504577Height Adjustable Flip Back T-Arm Mounting Hardware Assembly- This kit contains various mounting hardware for multiple configurations
$13.65
1003420T-Arm Post
$23.10
2000095Height Adj T Armrest Transfer Tube
$28.06
7000090Height Adj T Armrest Shim ()
$2.55
8a, 14112906Height Adj T Armrest Upper Desk w/ Tube End Plug
$78.17
8b, 14112907Height Adj T Armrest Upper Full w/ Tube End Plug
$78.17
14100803Tube End Plug 7/8"
$1.58
15, 16a, 21504562Height Adjustable Flip Back T-Arm Side Shield Short
$29.41
15, 16b, 21504563Height Adjustable Flip Back T-Arm Side Shield Long
$29.41
17a, 19504564Height Adjustable Flip Back T-Arm Metal Insert Short
$33.61
17b, 19504565Height Adjustable Flip Back T-Arm Metal Insert Long
$35.71
18, 20504566Height Adjustable Flip Back T-Arm Hinge Bolt / Bushing Kit
$3.15
22a100500Arm Pad Full
$23.63
22b100501Arm Pad Desk
$23.63
23100866M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch ()
$2.63
24003425Height Adjustable Flip Back T-Arm Hinge, Catalyst 4
$15.75
25003426Height Adjustable Flip Back T-Arm Hinge Spacer, Catalyst
$2.10
26100696M5 x 30mm PPH Capscrew
$1.58
27000065M6 x 23.68 Threaded Barrel
$4.13
28000087Height Adjustable T-Arm Receiver 1" CAT
$15.24
29000088Height Adj T Armrest Bracket
$27.41
30100667M6 x 12 BTN SHCS BLKZC w/Patch
$1.58
