Catalyst 4
Name: Catalyst 4: Catalyst 4 Axle Bracket
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

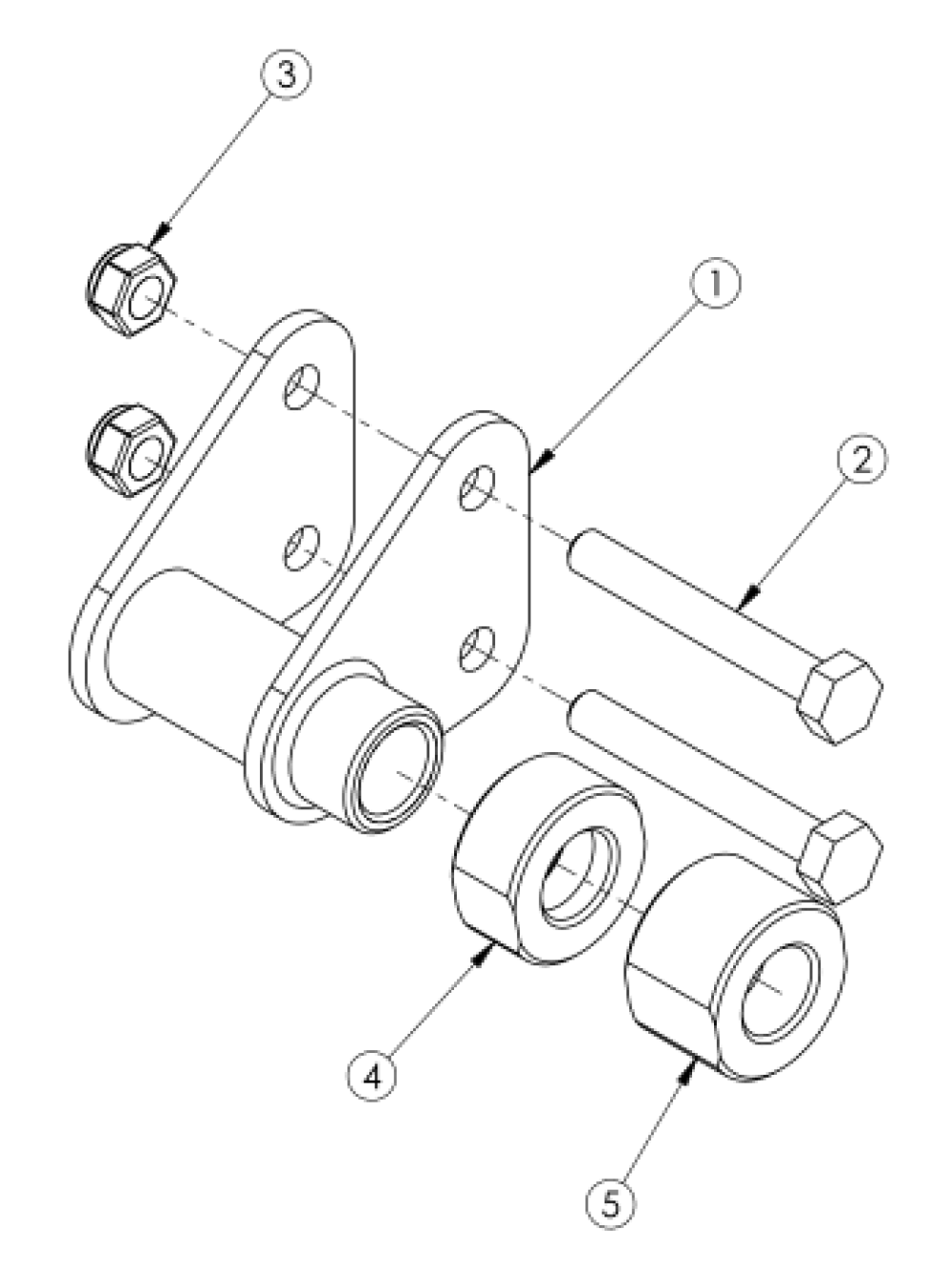

Part Picture
(Click on image to enlarge)
Axles and ReceiversSee Catalyst Anti-Tip Receivers page when reverse mounting Axle Bracket for all hardware used.
See Axles and Receivers reference for axle bracket usage
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a | 000052R | Axle Bracket Offset Right | $46.11 | EA | ||
| 1b | 000052L | Axle Bracket Offset Left | $46.11 | EA | ||
| 1c | 000281R | Extended Axle Bracket Offset Right | $46.11 | EA | ||
| 1d | 000281L | Extended Axle Bracket Offset Left | $46.11 | EA | ||
| 1e | 114491 | CAT 4 Axle Bracket, Right- Used when MAXX Mag wheels are present | Used when MAXX Mag wheels are present | $46.60 | EA | |
| 1f | 114492 | CAT 4 Axle Bracket, Left- Used when MAXX Mag wheels are present | Used when MAXX Mag wheels are present | $46.60 | EA | |
| 2a | 100674 | M6 x 45 CLS10.9 DIN931 HHCS ZC- Used for Axle Plate only | Used for Axle Plate only | $1.66 | ||
| 2b | 101826 | M6 x 50 HHCS Blk Zn- Used for Anti-Tip or Swing Away Arm Bracket | Used for Anti-Tip or Swing Away Arm Bracket | $2.21 | EA | |
| 2c | 100676 | M6 x 55 CLS10.9 DIN931 HHCS ZC- Used for Anti-Tip and Swing Away Arm Bracket | Used for Anti-Tip and Swing Away Arm Bracket | $1.66 | EA | |
| 3 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 4 | 101891 | Axle Spacer .15" CAT4- Used as needed to increase rear wheel spacing | Used as needed to increase rear wheel spacing | $18.69 | EA | |
| 5 | 101892 | Axle Spacer .35" CAT4- Used as needed to increase rear wheel spacing | Used as needed to increase rear wheel spacing | $18.69 | EA |
