Catalyst 4
Name: Catalyst 4: Catalyst 4 Caster Housing
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

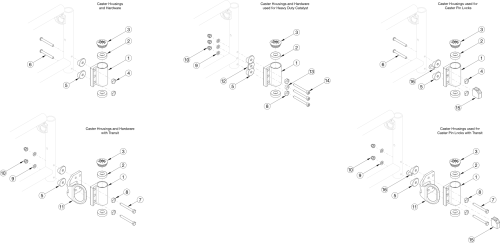

Part Picture
(Click on image to enlarge)
If replacing a caster housing and the chair has caster pin locks, please see Catalyst Caster Pin Locks page.
Please Note: The shown orientation of the caster housing above is in the "Forward" position.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 6 | 501172 | Standard Caster Housing Assembly, Black, Left, No Transit, Standard Weight Capacity, Catalyst | $48.70 | EA | ||
| 1a, 2, 3, 5, 8, 9, 10, 12, 13, 14 | 114594 | Standard Caster Housing Assembly, Black, Left, No Transit, Heavy Duty Weight Capacity, Catalyst | $83.23 | EA | ||
| 1b, 2 - 6 | 501173 | Standard Caster Housing Assembly, Black, Right, No Transit, Standard Weight Capacity, Catalyst | $48.70 | EA | ||
| 1b, 2, 3, 5, 8, 9, 10, 12, 13, 14 | 114595 | Standard Caster Housing Assembly, Black, Right, No Transit, Heavy Duty Weight Capacity, Catalyst | $83.23 | EA | ||
| 1a, 1b, 2 - 6 | 501174 | Standard Caster Housing Assembly, Black, PAIR, No Transit, Standard Weight Capacity, Catalyst | $97.42 | EA | ||
| 1a, 1b, 2, 3, 5, 8, 9, 10, 12, 13, 14 | 114596 | Standard Caster Housing Assembly, Black, PAIR, No Transit, Heavy Duty Weight Capacity, Catalyst | $166.47 | EA | ||
| 1a, 2, 3, 5, 7 - 10 | 501175 | Standard Caster Housing Assembly, Black, Left, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly | $53.41 | EA | |
| 1b, 2, 3, 5, 7 - 10 | 501176 | Standard Caster Housing Assembly, Black, Right, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly | $53.41 | EA | |
| 1a, 1b, 2, 3, 5, 7 - 10 | 501177 | Standard Caster Housing Assembly, Black, PAIR, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly | $106.84 | EA | |
| 1a, 2 | 100526 | Caster Housing Left, Black, CAT/Liberty | $39.54 | EA | ||
| 1b, 2 | 100527 | Caster Housing Right, Black, CAT/Liberty | $39.54 | EA | ||
| 1c, 2 | 001431 | Standard Caster Housing for Caster Pin Lock, Left, Catalyst, Black- Not available with Heavy Duty option | Not available with Heavy Duty option | $39.54 | EA | |
| 1d, 2 | 001432 | Standard Caster Housing for Caster Pin Lock, Right, Catalyst, Black- Not available with Heavy Duty option | Not available with Heavy Duty option | $39.54 | EA | |
| 2 | 100530 | Bearing M28 x 1/2" 6001RS | $12.62 | EA | ||
| 3 | 102005 | Ki Caster Housing Cap | $1.23 | EA | ||
| 4, 6 | 112171 | Standard Caster Housing Attaching Hardware for Swing Away Frame, No Transit, Standard Weight Capacity, PAIR | $13.58 | EA | ||
| 4, 6, 15, 16 | 114599 | Standard Caster Housing Attaching Hardware for Swing Away Frame with Caster Pin Locks, No Transit, Standard Weight Capacity, PAIR- Not all hardware used with Caster Pin Locks is shown in image | Not all hardware used with Caster Pin Locks is shown in image | $62.76 | EA | |
| 4, 5, 6 | 114600 | Standard Caster Housing Attaching Hardware Including Saddles for Swing Away Frame, No Transit, Standard Weight Capacity, PAIR | $20.21 | EA | ||
| 4, 5, 6, 15, 16 | 114601 | Standard Caster Housing Attaching Hardware Including Saddles for Swing Away Frame with Caster Pin Locks, No Transit, Standard Weight Capacity, PAIR- Not all hardware used with Caster Pin Locks is shown in image | Not all hardware used with Caster Pin Locks is shown in image | $66.08 | EA | |
| 5 | 000056 | Saddle 1 1/8" | $1.66 | |||
| 7 - 10 | 112956 | Standard Caster Housing Attaching Hardware for Swing Away Frame, Transit, Standard Weight Capacity, PAIR- Transit Brackets not included in assembly | Transit Brackets not included in assembly | $24.15 | EA | |
| 7 - 10, 15, 16 | 114602 | Standard Caster Housing Attaching Hardware for Swing Away Frame with Caster Pin Locks, Transit, Standard Weight Capacity, PAIR- Transit Brackets not included in assembly. Not all hardware used with Caster Pin Locks is shown in image | Transit Brackets not included in assembly. Not all hardware used with Caster Pin Locks is shown in image | $73.33 | EA | |
| 5, 7 - 10 | 114603 | Standard Caster Housing Attaching Hardware Including Saddles for Swing Away Frame, Transit, Standard Weight Capacity, PAIR- Transit Brackets not included in assembly | Transit Brackets not included in assembly | $30.79 | EA | |
| 5, 7 - 10, 15, 16 | 114604 | Standard Caster Housing Attaching Hardware Including Saddles for Swing Away Frame with Caster Pin Locks, Transit, Standard Weight Capacity, PAIR- Transit Brackets not included in assembly. Not all hardware used with Caster Pin Locks is shown in image | Transit Brackets not included in assembly. Not all hardware used with Caster Pin Locks is shown in image | $79.97 | EA | |
| 7 | 100677 | M6 x 60 CLS10.9 DIN931 HHCS ZC | $1.66 | EA | ||
| 8 | 100510 | Eccentric Washer | $1.73 | |||
| 9 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 10 | 100558 | M6 NYL INS Domed Cap L/N ZC | $1.10 | EA | ||
| 12 | 111813 | 1 1/8" Half Saddle- Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | $5.85 | EA | |
| 13 | 111544 | Eccentric Washer, 0.50” Diameter- Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | $5.39 | EA | |
| 14 | 111814 | M6 x 55 SHCS, 45mm Shoulder, 10 mm Thread, CLS 12.9- Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | Only used if Heavy Duty option is present on chairs starting with serial numbers C40043964, C50099247 or CVX0099946 | $5.39 | ||
| 15 | 200417 | Caster Lock Mounting Block CAT | $22.39 | EA | ||
| 16 | 101721 | M6 x 16 Btn SHCS w/ Patch | $2.21 | EA | ||
| 8, 9, 10, 13, 14 | 114597 | Standard Caster Housing Attaching Hardware for Swing Away Frame, Heavy Duty Weight Capacity, PAIR | $66.59 | EA | ||
| 5, 8, 9, 10, 12, 13, 14 | 114598 | Standard Caster Housing Attaching Hardware Including Saddles for Swing Away Frame, Heavy Duty Weight Capacity, PAIR | $84.92 | EA |
