loadingLoading... Ethos

Ethos

Name: Ethos: Iso Towers
Manufacturer: Ki Mobility

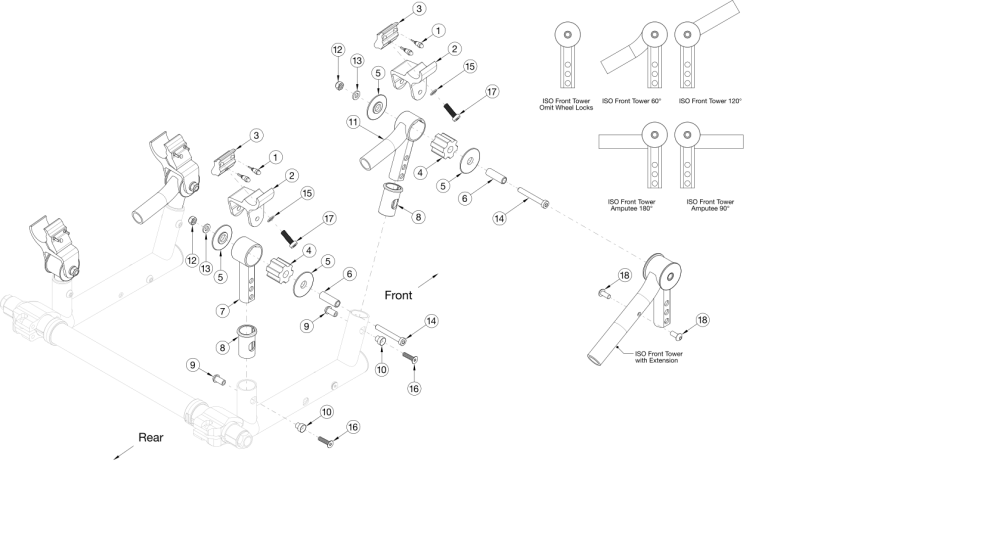

Iso Towers parts diagram
(Click on image to enlarge)

ISO Towers are modified per order and must be ordered through Customer Service. Serial number required upon order.Customer Service reference DCN0511
Attachments:
Pos. Part # Description Price UOM Buy
1 - 3, 15, 17 108077 Rear ISO Clamp Assembly with Hardware Kit
$32.11
EA
2, 3, 15, 17 108078 Front ISO Clamp Assembly with Hardware Kit
$26.40
EA
1, 3 108076 ISO Clamp Inside with Button
$15.43
2 003850 ISO Clamp Outside
$14.37
3 003851 ISO Clamp Inside
$12.58
4a 003859 Polymer Bushing 50 Durometer (Red)
$6.33
4b 003860 Polymer Bushing 60 Durometer (Blue)
$6.33
4c 004544 Polymer Bushing 70 Durometer (Black)
$6.33
4d 004545 Polymer Bushing 80 Durometer (Green)
$6.33
5 003861 Iso Strut Washer
$5.61
6 003863 ISO Barrel
$8.47
7 108183 Rear ISO Tower
$20.56
8a 003867 Vertical Upright Bushing With Flat, Black
$2.28
8b 108060_ _ _ Vertical Upright Bushing, Highlight Color
$2.13
EA
9 003869 M5 Barrel Nut
$20.38
10 003870 Barrel, M5 FHCS
$9.70
11a 108187 Front ISO Tower 120°, Right
$25.12
EA
11b 110040 Front ISO Tower with Extension 120°, Right
$105.08
EA
11c 108189 Front ISO Tower 120°, Left
$25.12
EA
11d 110041 Front ISO Tower with Extension 120°, Left
$105.08
EA
11e 108188 Front ISO Tower 60°, Right
$25.12
EA
11f 110042 Front ISO Tower with Extension 60°, Right
$105.08
EA
11g 108190 Front ISO Tower 60°, Left
$25.12
EA
11h 110043 Front ISO Tower with Extension 60°, Left
$105.08
EA
11i 108184 Front ISO Tower, Omit Wheel Locks
$20.56
11j 108185 Front ISO Tower, Amputee 90°
$31.72
11k 110038 Front ISO Tower with Extension, Amputee 90°
$111.69
11l 108186 Front ISO Tower, Amputee 180°
$31.72
11m 110039 Front ISO Tower with Extension, Amputee 180°
$111.69
12 100658 M6 Nylock Nut Blk Zn
$1.17
EA
13 100746 M6 Flat Washer Blk Zn
$1.77
EA
14 101123 M6 x 45 Low SHCS BLK ZC
$1.77
EA
15 102326 Flat Washer ID .254" x OD .396" Thickness .047" Zinc
$0.60
16 103322 M5 x 20 FHCS Blk Zc
$1.14
17 103396 M6 x 20 LHCS Blk Zc
$1.72
18 102621 M5 x 8 BHCS BLK ZC
$0.60
EA
