Catalyst 5 Ti

Name: Catalyst 5 Ti: Catalyst 5 Swing-in Anti-tip
Manufacturer: Ki Mobility

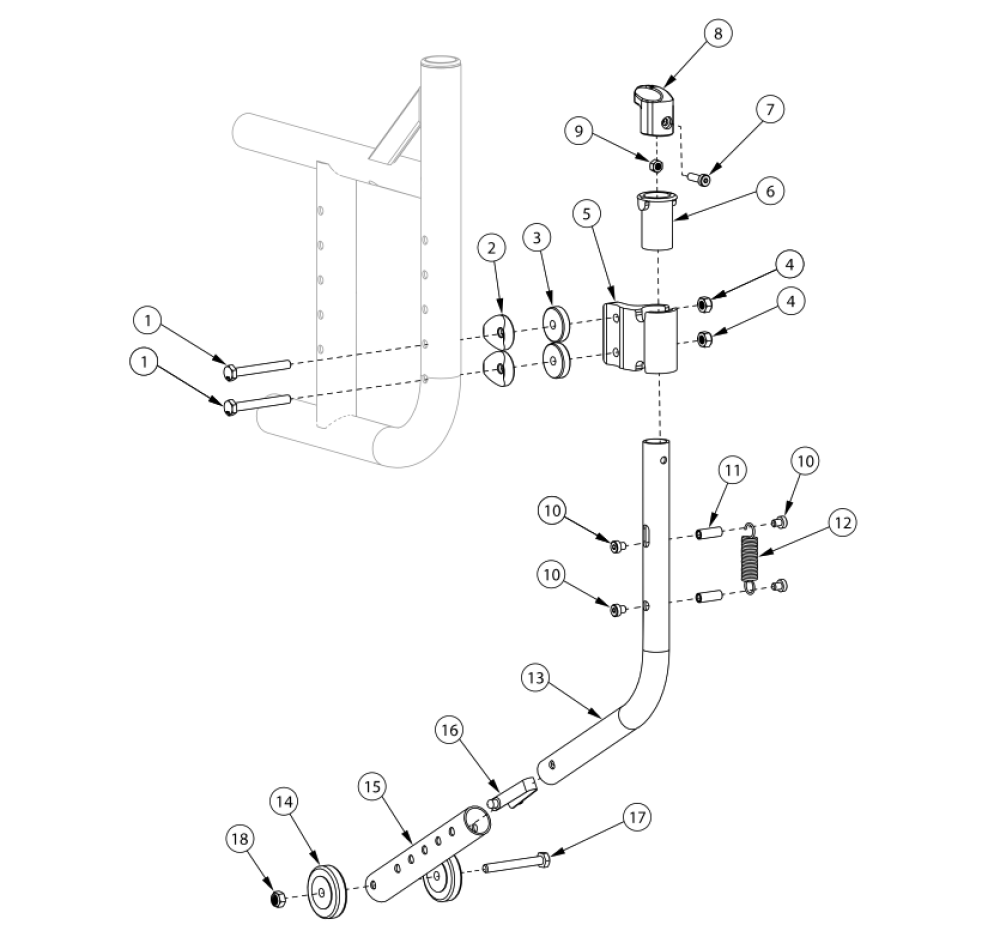

Catalyst 5 Swing-in Anti-tip parts diagram
(Click on image to enlarge)

Not available with Heavy Duty Option
Pos. Part # Description Price UOM Buy
1 - 12, 13a, 14, 15a, 16 - 18 107720 Swing-In Anti-Tip Short Assembly, CAT5 (PAIR)- Used is rear seat height is less than 16"
$352.80
EA
1 - 12, 13c, 14, 15a, 16 - 18 107721 Swing-In Anti-Tip Long Assembly, CAT5 (PAIR)- Used if rear seat height is 16" or greater
$352.80
EA
1 - 12, 13b, 14, 15b, 16 - 18 107722 Swing-In Anti-Tip Steel, Short Assembly, Left, CAT5- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered
$176.39
EA
1 - 12, 13b, 14, 15b, 16 - 18 109276 Swing-In Anti-Tip Steel, Short Assembly, Right, CAT5- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered
$176.39
EA
1 - 12, 13d, 14, 15b, 16 - 18 107723 Swing-In Anti-Tip Steel, Long Assembly, Left CAT5- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered
$176.39
EA
1 - 12, 13d, 14, 15b, 16 - 18 109277 Swing-In Anti-Tip Steel, Long Assembly, Right CAT5- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered
$176.39
EA
4, 10 - 12, 13a, 14, 15a, 16 - 18 107724 Swing-In Anti-Tip Short Assembly Replacement, CAT5- Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is present on chair
$79.96
EA
4, 10 - 12, 13c, 14, 15a, 16 - 18 107725 Swing-In Anti-Tip Long Assembly Replacement, CAT5- Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is present on chair
$79.96
EA
4, 10 - 12, 13b, 14, 15b, 16 - 18 107726 Swing-In Anti-Tip Steel Short Assembly Replacement, CAT5- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is present on chair
$79.96
EA
4, 10 - 12, 13d, 14, 15b, 16 - 18 107727 Swing-In Anti-Tip Steel Long Assembly Replacement, CAT5- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is present on chair
$79.96
EA
1a 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC
$1.77
EA
1b 100679 M6 x 65 CLS 8.8 DIN931 HHCS ZC- Used in place of 100677 when Swing Away Arms or Transit are present on chair
$1.77
1c 100680 M6 x 70 CLS 8.8 DIN931 HHCS ZC- Used in place of 100677 and 100679 when Swing Away Arms and Transit are both present on chair
$1.77
1d 100544 M6 x 75 CLS 8.8 DIN931 HHCS ZC- Used in place of 100677, 100679 and 100680 as needed
$1.77
2 000056 Saddle 1 1/8"- Used if Swing Away Arms or Transit is present on chair
$1.77
3 003516 1.0" OD x 0.25" Thick Spacer Washer- Used if Swing Away Arms and Transit are present on chair in addition to the 000056 saddles
$8.50
4 100658 M6 Nylock Nut Blk Zn
$1.17
EA
5 003510INST Swing In Anti-Tip Housing with Instruction
$25.06
EA
6 003511INST Swing In Anti-Tip Sleeve with Instruction
$2.36
EA
7 102801 M5 x 16, Low SHCS, Blk Zn
$1.77
EA
8 003515INST Swing In Anti-Tip Knob with Instruction
$3.53
EA
9 100657 M5 Nylock Nut Blk Zn
$0.60
EA
5 - 9 506289 Catalyst Swing-In Anti-Tip Housing Assembly
$33.29
EA
10 102796 M5 x 6, Low SHCS, Blk Zn
$4.70
11 003518 M5 x 19mm Threaded Barrel
$5.88
12 003514INST Spring. Ext, .50 OD x 2.0 LG x 050 W with Instruction
$2.36
EA
13a 003512 Swing In Anti-Tip Tube Short- Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is ordered
$11.77
EA
13b 003523 Swing In Anti-Tip Tube, Steel, Short- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered
$11.77
EA
13c 003513 Swing In Anti-Tip Tube Long- Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is ordered
$11.77
EA
13d 003524 Swing In Anti-Tip Tube, Steel, Long- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered
$11.77
EA
14, 15a, 17, 18 112365 Extension Assembly, Anti-Tip, Long
$27.84
EA
14, 15b, 17, 18 112367 Extension Assembly, Anti-Tip, Long, E-Coat
$25.77
EA
16 100534 Detent Button Lower
$4.02
EA
