Catalyst 5 Ti Replacement Parts in Anti-tips / Catalyst Rear Anti-tip by Ki Mobility

Loading...

Anti-tips » Catalyst Rear Anti-tip

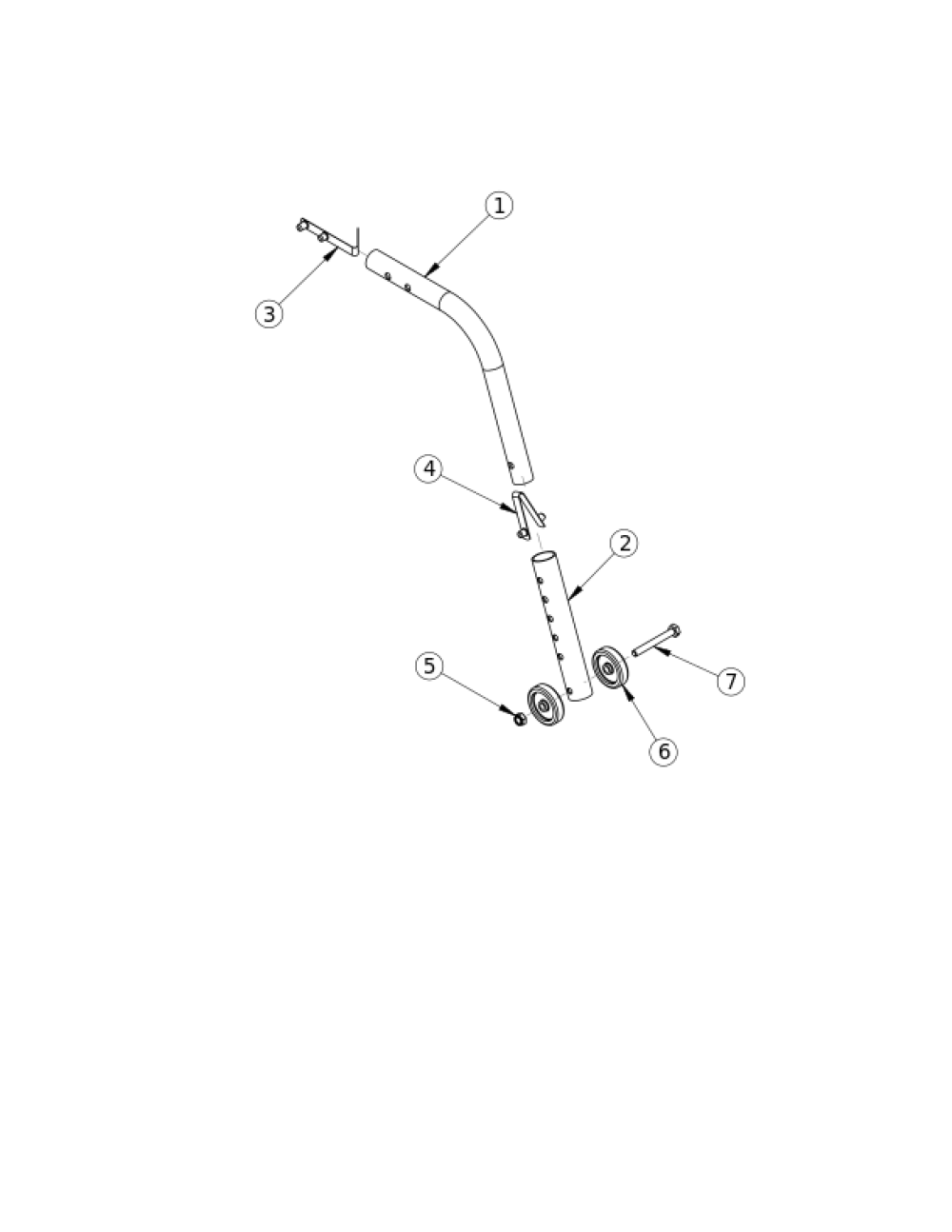

Catalyst Rear Anti-tip parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionRemarksPriceBuy
1a, 2a, 3 - 7501506Anti Tip ShortUsed with 18/20" Wheels on Catalyst
$55.22
1b, 2b, 3 - 7501507Anti Tip MediumUsed with 22/24" Wheels on Catalyst
$55.22
1c, 2b, 3 - 7501508Anti Tip LongUsed with 25/26" Wheels on Catalyst
$55.22
1d, 2a, 3 - 7503131Anti Tip Extra ShortUsed as needed with low seat heights
$79.95
1e, 2b, 3 - 7501509Anti Tip Extra LongUsed with Reclining Backrest Option
$55.22
1a000991Anti Tip Tube Upper ShortUsed with 18/20" Wheels on Catalyst
$10.41
1b000077Anti Tip Tube Upper MediumUsed with 22/24" Wheels on Catalyst
$17.67
1c000078Anti Tip Tube Upper LongUsed with 25/26" Wheels on Catalyst
$17.67
1d102836Anti-Tip Tube Upper Extra ShortUsed as needed with low seat heights
$23.14
1e000993Anti Tip Tube Upper Extra LongUsed with Reclining Backrest Option
$10.41
2a000992Anti Tip Extension ShortUsed with 18/20" Wheels on Catalyst
$8.33
2b000076Anti Tip Extension LongUsed with 22-26" Wheels on Catalyst
$13.24
3100533Detent Button
$3.42
4100534Detent Button Lower
$3.42
5100658M6 Nylock Nut Blk Zn
$1.00
6100506Anti Tip Tube Wheel
$3.72
7101826M6 x 50 HHCS Blk Zn
$2.00
