Catalyst 5 Ti

Name: Catalyst 5 Ti: Catalyst 5ti Rear Frame
Manufacturer: Ki Mobility

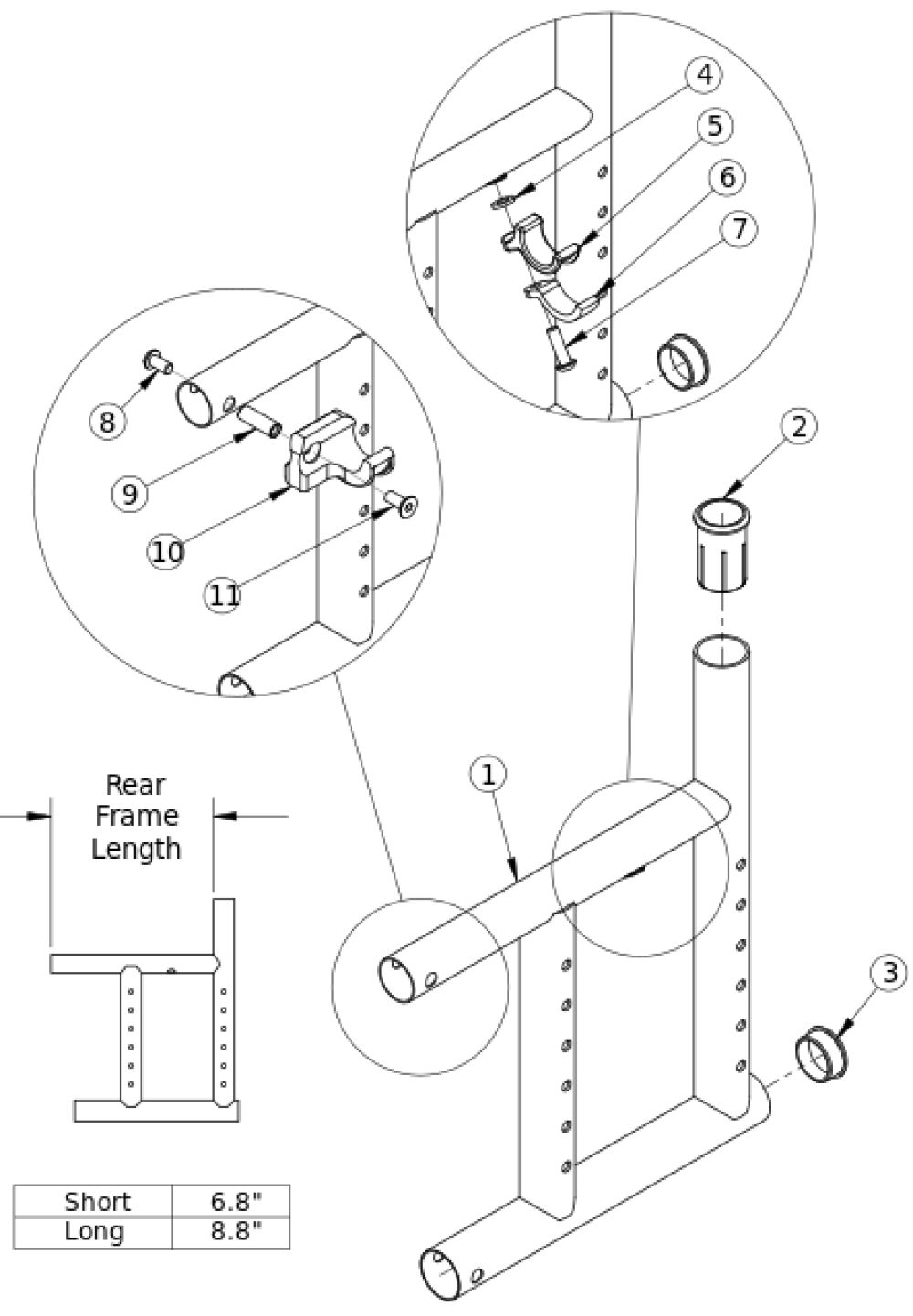

Catalyst 5ti Rear Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
4, 5, 6, 7a 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each
$19.48
EA
4, 5, 6, 7b 114528 Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$20.07
EA
1c, 2, 3 100277 Frame Assm Cat TI Rear Left Short
$627.04
EA
1a, 2, 3 100275 Frame Assm Cat TI Rear Right Short
$627.04
EA
1d, 2, 3 100278 Frame Assm Cat TI Rear Left Long
$627.04
EA
1b, 2, 3 100276 Frame Assm Cat TI Rear Right Long
$627.04
EA
1c, 2, 3 114424 Frame Assm Cat TI Rear with Side Guard Mount Modification Left Short
$627.04
EA
1a, 2, 3 114422 Frame Assm Cat TI Rear with Side Guard Mount Modification Right Short
$627.04
EA
1d, 2, 3 114425 Frame Assm Cat TI Rear with Side Guard Mount Modification Left Long
$627.04
EA
1b, 2, 3 114423 Frame Assm Cat TI Rear with Side Guard Mount Modification Right Long
$627.04
EA
2 000030 Backrest Sleeve Cat
$3.94
EA
3 100532 Tube End Plug 1 1/8"
$2.94
EA
4 100831 1/2" Washer OD .040" Thick
$1.77
EA
5 000003 Seat Hook, Catalyst
$8.62
EA
6 000004 Seat Hook Support, Catalyst
$7.34
EA
7a 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.77
EA
7b 101180 M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity
$2.36
EA
8 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
9 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
10a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.35
EA
10b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.35
EA
11 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.36
EA
