Catalyst 5 Ti

Name: Catalyst 5 Ti: (discontinued) Catalyst 5 Standard Axle Plate
Manufacturer: Ki Mobility

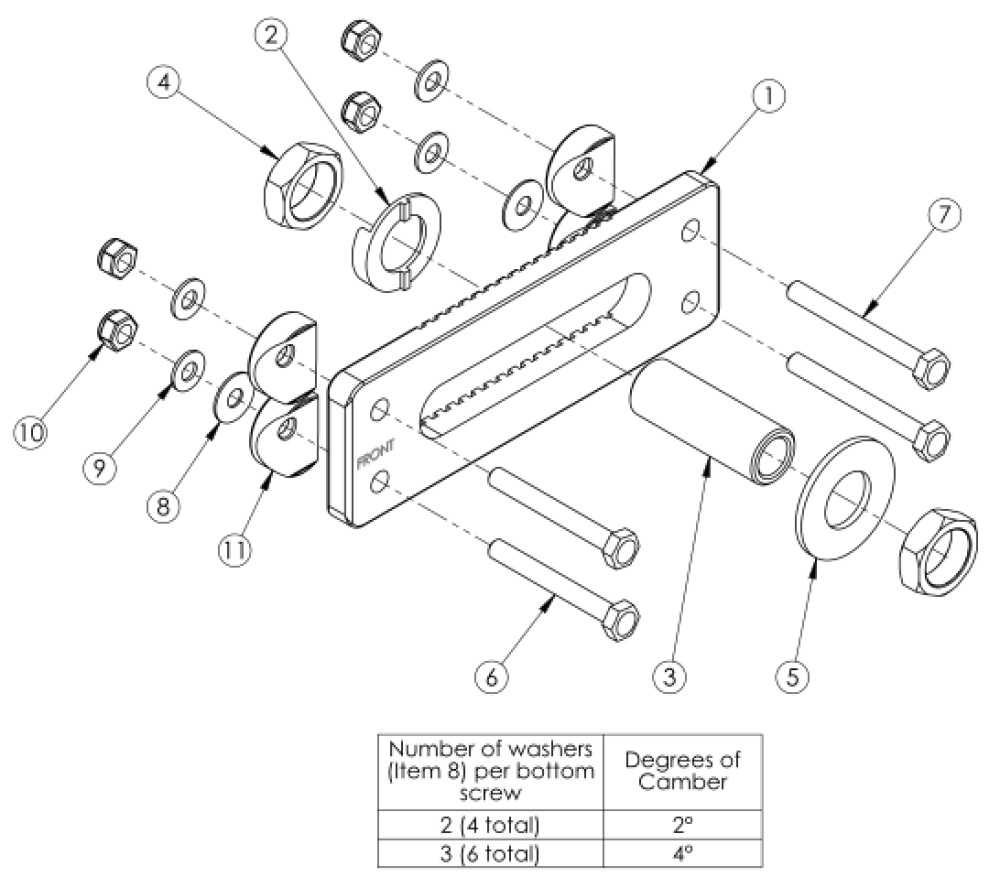

(discontinued) Catalyst 5 Standard Axle Plate parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
6a, 7b, 7c, 9, 10 503275 Axle Plate Hardware Kit Cat 5 for Anti Tips (Pair)
$63.51
EA
6a, 7c, 7d, 9, 10, 11 503276 Axle Plate Hardware Kit Cat 5 for Anti Tips and Transit and Swing Away Arms (Pair)
$81.13
EA
6b, 7b, 9, 10 503278 Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips (Pair)
$63.51
EA
6b, 7b, 7c, 7d, 9, 10 503279 Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips and Transit
$67.03
EA
1 - 5 500506 Standard Axle Plate Assembly 1/2" N/A EA Please Call
2 - 5 500504 Axle Receiver Assembly 1/2"
$34.17
EA
1 000028 Axle Plate Standard N/A EA Please Call
2 004444 Axle Plate Index Washer- Replaced 000051 and 004678
$9.20
EA
3 100756 Axle Receiver 1/2" Diameter
$19.79
EA
4 100514 Axle Receiver Nut M18 x D12 x 8mm
$1.73
EA
5 004445 Axle Plate Flat Washer- Replaced 000465
$2.08
EA
6b 100674 M6 x 45 CLS10.9 DIN931 HHCS ZC- Used with Depth Adjustable and Spark Rear Frames
$1.77
7a 101826 M6 x 50 HHCS Blk Zn- Used when attaching axle plate only
$2.36
EA
7b 100676 M6 x 55 CLS10.9 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip, transit or swing away arm bracket
$1.77
EA
7c 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip and transit or swing away arm bracket
$1.77
EA
7d 100679 M6 x 65 CLS 8.8 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip, transit and swing away arm brackets
$1.77
8 100763 Washer #12 Thin
$1.73
9 100746 M6 Flat Washer Blk Zn
$1.77
EA
10 100658 M6 Nylock Nut Blk Zn
$1.17
EA
11 000056 Saddle 1 1/8"- Used with transit or swing away arm bracket
$1.77
