Catalyst 5 Ti
Name: Catalyst 5 Ti: Catalyst Height Adjustable Low T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

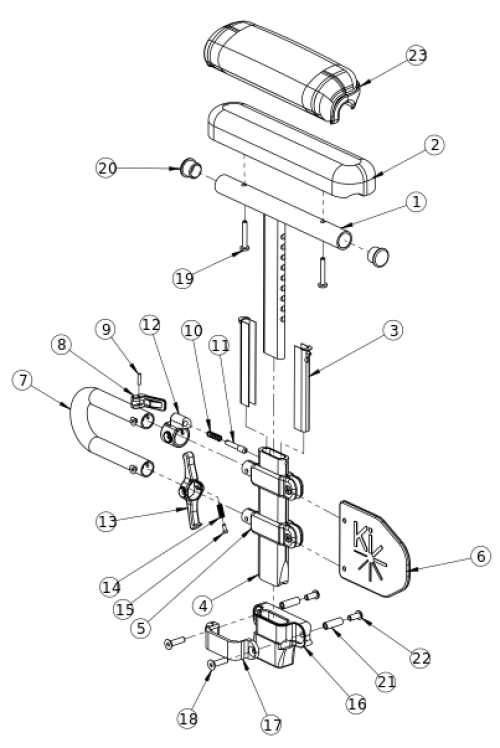

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2b, 3 - 18, 19a, 20 - 22 | 113452 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and Receiver PAIR | $462.34 | EA | ||
| 1a, 2b, 3 - 18, 19a, 20 - 22 | 113347 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and Receiver Right | $231.17 | EA | ||
| 1a, 2b, 3 - 18, 19a, 20 - 22 | 113348 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and Receiver Left | $231.17 | EA | ||
| 1a, 2b, 3 - 15, 19a, 20 | 503167 | Height Adj T-Arm Assm Low, Desk w/ Std Pad Right | $168.85 | EA | ||
| 1a, 2b, 3 - 15, 19a, 20 | 503168 | Height Adj T-Arm Assm Low, Desk w/ Std Pad Left | $168.85 | EA | ||
| 1b, 2a, 3 - 18, 19a, 20 - 22 | 113453 | Height Adj T-Arm Assm Low, Full w/ Std Pad and Receiver PAIR | $462.34 | EA | ||
| 1b, 2a, 3 - 18, 19a, 20 - 22 | 113349 | Height Adj T-Arm Assm Low, Full w/ Std Pad and Receiver Right | $231.17 | EA | ||
| 1b, 2a, 3 - 18, 19a, 20 - 22 | 113350 | Height Adj T-Arm Assm Low, Full w/ Std Pad and Receiver Left | $231.17 | EA | ||
| 1b, 2a, 3 - 15, 19a, 20 | 503169 | Height Adj T-Arm Assm Low, Full w/ Std Pad Right | $168.85 | EA | ||
| 1b, 2a, 3 - 15, 19a, 20 | 503170 | Height Adj T-Arm Assm Low, Full w/ Std Pad Left | $168.85 | EA | ||
| 1a, 3 - 18, 19b, 20 - 22, 23b | 113454 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and Receiver PAIR | $481.57 | EA | ||
| 1a, 3 - 18, 19b, 20 - 22, 23b | 113351 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and Receiver Right | $240.79 | EA | ||
| 1a, 3 - 18, 19b, 20 - 22, 23b | 113352 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and Receiver Left | $240.79 | EA | ||
| 1a, 3 - 15, 19b, 20, 23b | 503183 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad Right | $178.47 | EA | ||
| 1a, 3 - 15, 19b, 20, 23b | 503184 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad Left | $178.47 | EA | ||
| 1b, 3 - 18, 19b, 20 - 22, 23a | 113455 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and Receiver PAIR | $481.57 | EA | ||
| 1b, 3 - 18, 19b, 20 - 22, 23a | 113353 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and Receiver Right | $240.79 | EA | ||
| 1b, 3 - 18, 19b, 20 - 22, 23a | 113354 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and Receiver Left | $240.79 | EA | ||
| 1b, 3 - 15, 19b, 20, 23a | 503185 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad Right | $178.47 | EA | ||
| 1b, 3 - 15, 19b, 20, 23a | 503186 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad Left | $178.47 | EA | ||
| 1a, 3 - 15, 20 | 002681 | Arm T Height Adj Low, Desk Right Assembly | $140.71 | EA | ||
| 1a, 3 - 15, 20 | 002682 | Arm T Height Adj Low, Desk Left Assembly | $140.71 | EA | ||
| 1b, 3 - 15, 20 | 002683 | Arm T Height Adj Low, Full Right Assembly | $140.71 | EA | ||
| 1b, 3 - 15, 20 | 002684 | Arm T Height Adj Low, Full Left Assembly | $140.71 | EA | ||
| 16 - 18, 21, 22 | 501730 | Height Adj T-Arm Receiver Assm 1" CAT | $58.44 | EA | ||
| 1a, 20 | 002648 | Post Weldment, T-Arm, Low, Desk | $70.43 | EA | ||
| 1b, 20 | 002649 | Post Weldment, T-Arm, Low, Full | $72.82 | EA | ||
| 2a | 100500 | Arm Pad Full | $24.82 | EA | ||
| 2b | 100501 | Arm Pad Desk | $24.82 | EA | ||
| 3 | 000090 | Height Adj T Armrest Shim | $2.68 | |||
| 4 | 002105 | Tube, Outer, T-Arm, Low | $31.10 | EA | ||
| 5 | 000092 | Height Adj T Armrest Clamp | N/A | Please Call | ||
| 6 | 002107 | Sideguard, T-Arm, Low | N/A | EA | Please Call | |
| 7 | 002104 | Transfer Tube, T-Arm, Low | $17.65 | EA | ||
| 8 | 000098 | Height Adj Armrest Lever | N/A | EA | Please Call | |
| 9 | 200257 | Dowel Pin 1/8 x 1/2 | $2.76 | EA | ||
| 10 | 000134 | Height Adj Armrest Lever Spring | $1.17 | EA | ||
| 11 | 000099 | Height Adj Armrest Lever Pin | $20.09 | EA | ||
| 12 | 000096 | Height Adj T Armrest Pin Lock Housing | $15.45 | EA | ||
| 8 - 12 | 500541 | Arm Height Adj T Upper Lever Assembly | $42.59 | EA | ||
| 13 | 002106 | Lever, T-Arm, Low | $3.64 | EA | ||
| 14 | 000135 | Height Adj T Armrest Release Lever Spring | $1.14 | EA | ||
| 15 | 000152 | Height Adj T Armrest Release Spring Button | $1.14 | EA | ||
| 16 | 000087 | Height Adjustable T-Arm Receiver 1" CAT | $16.01 | EA | ||
| 17 | 000088 | Height Adj T Armrest Bracket | $28.79 | EA | ||
| 18 | 100866 | M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch | $2.76 | |||
| 19a | 100696 | M5 x 30mm PPH Capscrew- Used with Standard Arm Pads | Used with Standard Arm Pads | $1.66 | EA | |
| 19b | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads | Used with Waterfall Arm Pads | $1.66 | ||
| 20 | 100803 | Tube End Plug 7/8" | $1.66 | EA | ||
| 21 | 000065 | M6 x 23.68 Threaded Barrel | $4.34 | EA | ||
| 22 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch | $1.66 | EA | ||
| 23a | 102452 | Waterfall Arm Pad Full | $34.44 | EA | ||
| 23b | 102521 | Waterfall Arm Pad Desk | $34.44 | EA |
