Catalyst 5 Ti

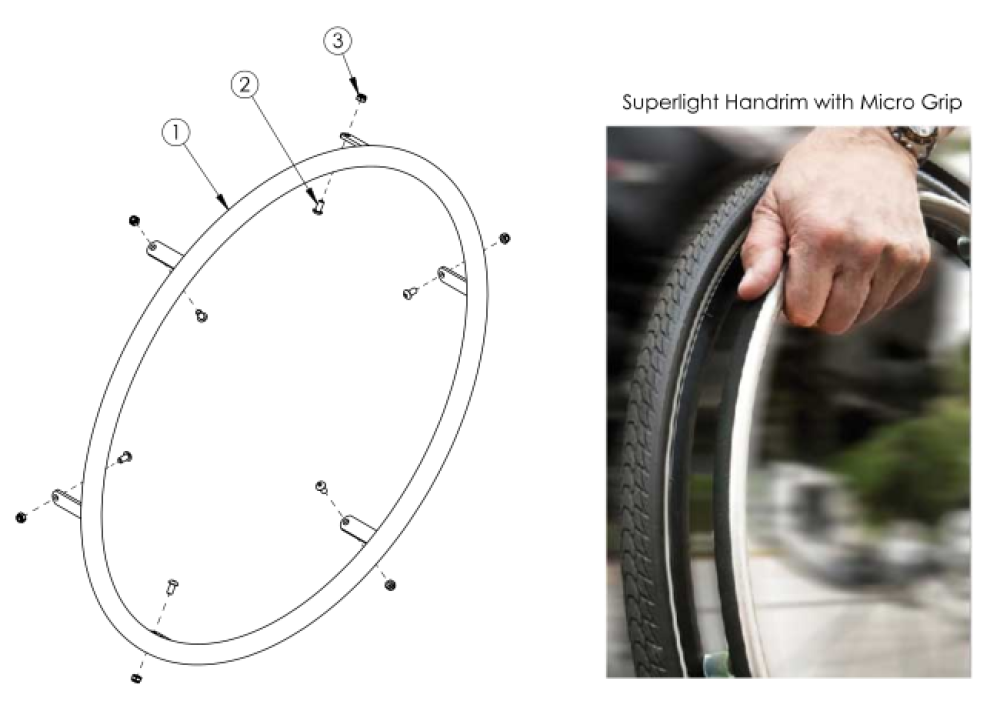

Name: Catalyst 5 Ti: Superlight Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Not available with Heavy Duty Option
Tab mounted handrims must be installed prior to the tire being installed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2b, 3 | 502174 | Handrim Hardware Kit, 6 Tab, EACH- Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel | Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel |
$18.00
|
EA |
|
| 2a | 502170 | Handrim Hardware Kit, Superlight, EACH- Used with Superlight Spoke | Used with Superlight Spoke |
$18.00
|
EA |
|
| 1a | 101161 | Handrim Superlight Aluminum Anodized 24", 6 Tab |
$106.76
|
EA |
|
|
| 1b | 505585 | Handrim Superlight Aluminum Anodized 24" w/ Micro Grip |
$149.52
|
EA |
|
|
| 1c | 101160 | Handrim Superlight Aluminum Anodized 25", 6 Tab |
$106.76
|
EA |
|
|
| 1d | 505586 | Handrim Superlight Aluminum Anodized 25" w/ Micro Grip |
$150.80
|
EA |
|
|
| 2a | 100536 | M5 x 12 BTN SHCS ZC- Used with Superlight Spoke | Used with Superlight Spoke |
$2.41
|
|
|
| 2b | 100669 | M5 x 10 BTN SHCS BLKZC w/Patch- Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel | Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel |
$1.81
|
EA |
|
| 3 | 100657 | M5 Nylock Nut Blk Zn- Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel | Used with Spinergy, Topolino, MAXX Spoke, and Spoke wheel |
$0.61
|
EA |
|
