Catalyst 5 Ti
Name: Catalyst 5 Ti: Short Thro Scissor Wheel Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

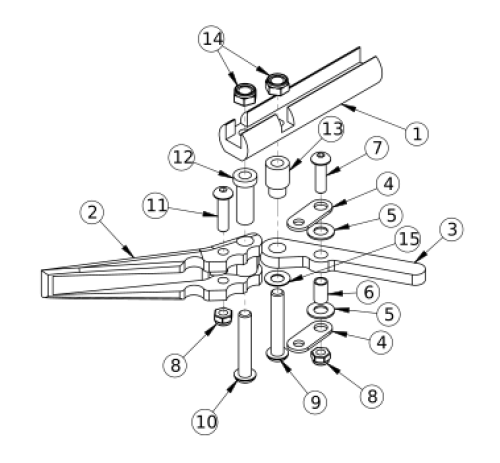

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 15 | 506657 | Short Thro Scissor Wheel Lock Assembly with Instruction, Left- This kit contains 102544 wheel lock along with an instruction for reversing the wheel lock. | This kit contains 102544 wheel lock along with an instruction for reversing the wheel lock. | $105.02 | EA | |
| 1b, 2 - 15 | 506658 | Short Thro Scissor Wheel Lock Assembly with Instruction, Right- This kit contains 102546 wheel lock along with an instruction for reversing the wheel lock. | This kit contains 102546 wheel lock along with an instruction for reversing the wheel lock. | $105.02 | EA | |
| 1a, 1b, 2 - 15 | 500993 | Wheel Lock Short Thro Scissor Assembly with Instruction, PAIR | $210.04 | EA | ||
| 1a | 000364L | Scissor Lock Mount Bar Left | $10.64 | EA | ||
| 1b | 000364R | Scissor Lock Mount Bar Right | $10.64 | EA | ||
| 2 | 000365 | Scissor Lock Handle | $12.55 | EA | ||
| 3 | 000366 | Scissor Lock Brake Arm | $19.32 | EA | ||
| 4 | 000367 | Scissor Lock Link | $3.94 | |||
| 5 | 000369 | Flat Washer .5 x .257 x .0032 Plastic | $1.05 | |||
| 6 | 000368 | Scissor Lock Bushing | $7.74 | EA | ||
| 7 | 101716 | M5 x 16 SHCS Blk Zn | $1.13 | EA | ||
| 8 | 100657 | M5 Nylock Nut Blk Zn | $0.58 | EA | ||
| 9 | 101119 | M6 X 32 BHCS bright | $1.22 | EA | ||
| 10 | 100797 | M6 x 40 BHCS BLK ZC | $1.13 | EA | ||
| 11 | 101560 | M5 x 30 BTN SHCS ZC | $2.28 | EA | ||
| 12 | 000370 | Scissor Lock Pivot Bushing | $3.94 | EA | ||
| 13 | 000371 | Scissor Lock Arm Bushing | $3.87 | EA | ||
| 14 | 100658 | M6 Nylock Nut Blk Zn | $1.13 | EA | ||
| 15 | 000372 | Scissor Lock Disc Spring | $2.55 | EA |
