loadingLoading... Catalyst 5Vx

Catalyst 5vx

Name: Catalyst 5Vx: Catalyst Armrests - Height Adjustable Tall T-arm
Manufacturer: Ki Mobility

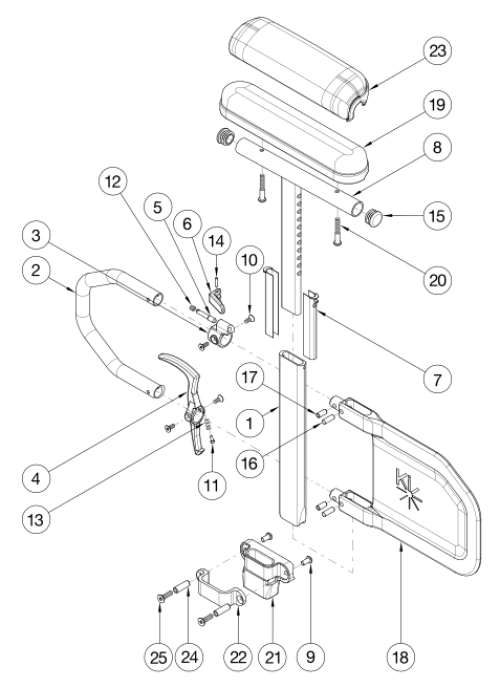

Catalyst Armrests - Height Adjustable Tall T-arm parts diagram
(Click on image to enlarge)

Receiver and Hardware update effective 11/25/24 Short assemblies are used with 14" - 17" Seat Depths. Long assemblies are used with 18" - 20" Seat Depths. If retrofitting, Receivers are needed. If retrofitting to Height Adjustable Tall T-Arms and One Arm Drive is present, a new drive shaft may be required. In addition to a new drive shaft, order the corresponding hardware kit: 109438 for Blade Style One Arm Drive, 503433 for Hex Style One Arm Drive or 112898 for Quick Release One Arm Drive.
Pos. Part # Description Price UOM Buy
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22, 24 116202 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Full, 1" Receiver
$346.70
EA
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22, 24 116203 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Full, 1" Receiver, Pair Cat
$693.40
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22, 24 116204 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Full, 1" Receiver
$346.70
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22, 24 116205 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Full, 1" Receiver, Pair Cat
$693.40
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24 116210 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Desk, 1" Receiver
$346.70
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24 116211 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Desk, 1" Receiver, Pair Cat
$693.40
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24 116212 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Desk, 1" Receiver
$346.70
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24 116213 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Desk, 1" Receiver, Pair Cat
$693.40
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a, 24 116206 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, 1" Receiver
$357.15
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a, 24 116207 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, 1" Receiver, Pair Cat
$714.32
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a, 24 116208 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Full, 1" Receiver
$357.15
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a, 24 116209 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Full, 1" Receiver, Pair Cat
$714.32
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24 116214 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, 1" Receiver
$357.15
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24 116215 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, 1" Receiver, Pair Cat
$714.32
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24 116216 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Desk, 1" Receiver
$357.15
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24 116217 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Desk, 1" Receiver, Pair Cat
$714.32
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116196 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full
$278.94
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116197 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full, Pair
$557.87
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116164 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full
$278.94
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116165 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full, Pair
$557.87
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116194 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk
$278.94
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116195 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk, Pair
$557.87
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116162 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk
$278.94
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116163 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk, Pair
$557.87
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116200 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full
$289.38
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116201 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, Pair
$578.79
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116168 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full
$289.38
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116169 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full, Pair
$578.79
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116198 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk
$289.38
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116199 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, Pair
$578.79
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116166 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk
$289.38
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116167 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk, Pair
$578.79
EA
1 - 7, 10 - 14, 16, 17, 18a 114150 Height Adjustable T-Arm Short Lower Assembly, Tall- Does not include t-arm upper, arm pad or arm pad screws
$162.66
EA
1 - 7, 10 - 14, 16, 17, 18b 114151 Height Adjustable T-Arm Long Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$162.66
EA
1 - 7, 8a, 10 - 18a 114432 Height Adjustable T-Arm Short Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$248.33
EA
1 - 7, 8b, 10 - 18a 114433 Height Adjustable T-Arm Short Side Shield, Full, Tall- Does not include arm pad or arm pad screws
$248.33
EA
1 - 7, 8a, 10 - 18b 114434 Height Adjustable T-Arm Long Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$248.33
EA
1 - 7, 8b, 10 - 18b 114435 Height Adjustable T-Arm Full, Long, Tall- Does not include arm pad or arm pad screws
$248.33
EA
4, 10, 11, 13 116375 Height Adjustable Tall T-Arm Release Lever Assembly
$9.69
EA
16, 17, 18a 116376 Height Adj Tall T-Arm Long Side Shield Assembly
$44.73
EA
16, 17, 18b 116377 Height Adjustable Tall T-Arm Short Shield Assembly
$18.77
EA
9, 21, 22, 24 501730 Height Adj T-Arm Receiver Assm 1" CAT
$63.55
EA
1 113137 Height Adjustable T-Arm Post, Tall
$28.66
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$37.47
EA
3, 5, 6, 10, 12, 14 116378 Height Adjustable Tall T-Arm Upper Latch Assembly
$46.32
EA
7 000090 Height Adjustable T Armrest Shim
$2.92
8a, 15 116379 Height Adjustable Tall T Armrest Upper Desk w/ Tube End Plug
$87.54
EA
8b, 15 116380 Height Adjustable Tall T Armrest Upper Full w/ Tube End Plug
$87.54
EA
9 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.81
EA
10 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.19
EA
11 000152 Height Adjustable T Armrest Release Spring Button
$1.23
EA
13 000135 Height Adjustable T Armrest Release Lever Spring
$1.23
EA
15 100803 Tube End Plug 7/8"
$1.81
EA
16 003641 .25" x .75" Dowel Pin
$1.19
EA
17 003457 M5 x 14mm Barrel Nut
$1.19
EA
19a 100500 Arm Pad Full
$26.98
EA
19b 100501 Arm Pad Desk
$26.98
EA
20a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.81
EA
20b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.81
21 122221 T-Arm Receiver 1", Cat
$17.41
EA
22 122222 Height Adjustable T Armrest Bracket, CAT/SPARK
$31.30
EA
23a 102452 Waterfall Arm Pad Full
$37.44
EA
23b 102521 Waterfall Arm Pad Desk
$37.44
EA
24 122055 Binding Post, Flat Head, M6, .38”
$5.57
