Catalyst 5vx
Name: Catalyst 5Vx: Catalyst Height Adjustable T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

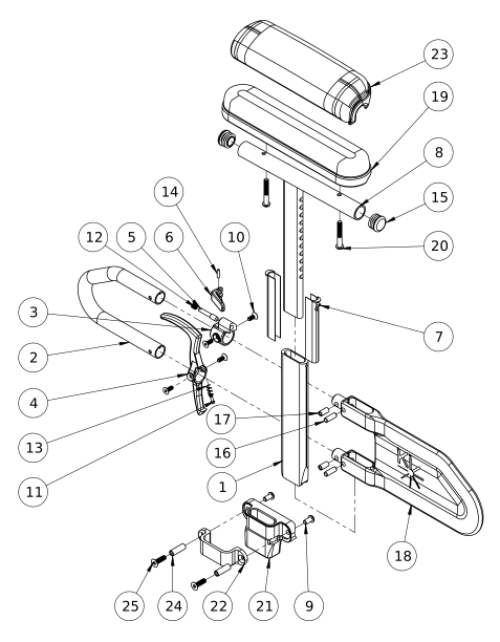

Part Picture
(Click on image to enlarge)
Receiver and Hardware update effective 11/25/24
Short assemblies are used with 14-17 Seat Depths. Long assemblies are used with 18"-20" Seat Depths
If retrofitting, Receivers are needed.
This design effective November 10, 2017 for long panels and December 6, 2017 for short panels
If retrofitting to Height Adjustable T-Arms and One Arm Drive is present, a new drive shaft may be required. In addition to a new drive shaft, order the corresponding hardware kit: 109438 for Blade Style One Arm Drive, 503433 for Hex Style One Arm Drive or 112898 for Quick Release One Arm Drive
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 7, 8a, 9 - 18a, 19a, 20a, 21, 22, 24 | 505500 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver, PAIR CAT |
$617.43
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 19a, 20a, 21, 22, 24 | 505499 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver |
$308.72
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 19a, 20a, 21, 22, 24 | 505653 | Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver, PAIR CAT |
$617.43
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 19a, 20a, 21, 22, 24 | 505652 | Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver |
$308.72
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24 | 505502 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver, PAIR CAT |
$617.43
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24 | 505501 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver CAT |
$308.72
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24 | 505655 | Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver, PAIR CAT |
$617.43
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24 | 505654 | Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver CAT |
$308.72
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23a, 24 | 505504 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver, PAIR CAT |
$639.42
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23a, 24 | 505503 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver CAT |
$319.71
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23a, 24 | 505657 | Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver, PAIR CAT |
$639.42
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23a, 24 | 505656 | Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver CAT |
$319.71
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24 | 505506 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver, PAIR CAT |
$639.42
|
EA |
|
|
| 1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24 | 505505 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver CAT |
$319.71
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24 | 505659 | Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver, PAIR CAT |
$639.42
|
EA |
|
|
| 1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24 | 505658 | Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver CAT |
$319.71
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 19a, 20a | 505492 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, PAIR |
$536.12
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 19a, 20a | 505491 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full |
$268.07
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 19a, 20a | 505645 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Full, Pair |
$536.12
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 19a, 20a | 505644 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Full |
$268.07
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 19b, 20a | 505494 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, PAIR |
$536.12
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 19b, 20a | 505493 | Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk |
$268.07
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 19b, 20a | 505647 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Desk, Pair |
$536.12
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 19b, 20a | 505646 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Standard Pad Desk |
$268.07
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 20b, 23a | 505496 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, PAIR |
$557.04
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 20b, 23a | 505495 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full |
$278.51
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 20b, 23a | 505649 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Full, Pair |
$557.04
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 20b, 23a | 505648 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Full |
$278.51
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 20b, 23b | 505498 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, PAIR |
$557.04
|
EA |
|
|
| 1 - 7, 8a, 10 - 18a, 20b, 23b | 505497 | Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk |
$278.51
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 20b, 23b | 505651 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Desk, Pair |
$557.04
|
EA |
|
|
| 1 - 7, 8a, 10 - 18b, 20b, 23b | 505650 | Height Adjustable T-Arm Assembly w/ Short Side Shield and Waterfall Pad Desk |
$278.51
|
EA |
|
|
| 3, 5, 6, 10, 12, 14 | 505490 | Height Adjustable T-Arm Upper Latch Assembly |
$46.32
|
EA |
|
|
| 4, 10, 11, 13 | 505507 | Height Adjustable T-Arm Release Lever Assembly |
$9.69
|
EA |
|
|
| 16, 17, 18a | 505508 | Height Adj T-Arm Long Side Shield Assembly |
$44.73
|
EA |
|
|
| 16, 17, 18b | 506082 | Height Adjustable T-Arm Short Shield Assembly |
$18.77
|
EA |
|
|
| 9, 21, 22, 24 | 501730 | Height Adj T-Arm Receiver Assm 1" CAT |
$63.55
|
EA |
|
|
| 1 - 7, 10 - 14, 16, 17, 18b | 004160 | Height Adjustable T-Arm Lower Assembly Short- Does not include t-arm upper, arm pad or arm pad screws | Does not include t-arm upper, arm pad or arm pad screws |
$151.79
|
EA |
|
| 1 - 7, 10 - 14, 16, 17, 18a | 004161 | Height Adjustable T-Arm Lower Assembly Long- Does not include t-arm upper, arm pad or arm pad screws | Does not include t-arm upper, arm pad or arm pad screws |
$151.79
|
EA |
|
| 1 - 7, 8a, 10 - 18a | 003465 | Height Adjustable T-Arm Long Desk- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws |
$237.46
|
EA |
|
| 1 - 7, 8b, 10 - 18a | 003466 | Height Adjustable T-Arm Long Full- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws |
$237.46
|
EA |
|
| 1 - 7, 8a, 10 - 18b | 003463 | Height Adjustable T-Arm Short Desk- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws |
$237.46
|
EA |
|
| 1 - 7, 8b, 10 - 18b | 003464 | Height Adjustable T-Arm Short Full- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws |
$237.46
|
EA |
|
| 1 | 000089 | Height Adjustable T Armrest Post |
$28.66
|
EA |
|
|
| 2 | 000095 | Height Adjustable T Armrest Transfer Tube |
$32.04
|
EA |
|
|
| 7 | 000090 | Height Adjustable T Armrest Shim |
$2.92
|
|
||
| 8a, 15 | 112906 | Height Adjustable T Armrest Upper Desk w/ Tube End Plug |
$87.54
|
EA |
|
|
| 8b, 15 | 112907 | Height Adjustable T Armrest Upper Full w/ Tube End Plug |
$87.54
|
EA |
|
|
| 9 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch |
$1.81
|
EA |
|
|
| 10 | 003458 | M5 X 12mm FHCS BLK ZN W/ Patch |
$1.19
|
|
||
| 11 | 000152 | Height Adjustable T Armrest Release Spring Button |
$1.23
|
EA |
|
|
| 13 | 000135 | Height Adjustable T Armrest Release Lever Spring |
$1.23
|
EA |
|
|
| 15 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
|
| 16 | 003641 | .25" x .75" Dowel Pin |
$1.19
|
EA |
|
|
| 17 | 003457 | M5 x 14mm Barrel Nut |
$1.19
|
EA |
|
|
| 19a | 100500 | Arm Pad Full |
$26.98
|
EA |
|
|
| 19b | 100501 | Arm Pad Desk |
$26.98
|
EA |
|
|
| 20a | 100696 | M5 x 30mm PPH Capscrew- Used with Standard Arm Pads | Used with Standard Arm Pads |
$1.81
|
EA |
|
| 20b | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads | Used with Waterfall Arm Pads |
$1.81
|
|
|
| 21 | 122221 | T-Arm Receiver 1", Cat |
$17.41
|
EA |
|
|
| 22 | 122222 | Height Adjustable T Armrest Bracket, CAT/SPARK |
$31.30
|
EA |
|
|
| 23a | 102452 | Waterfall Arm Pad Full |
$37.44
|
EA |
|
|
| 23b | 102521 | Waterfall Arm Pad Desk |
$37.44
|
EA |
|
|
| 24 | 122055 | Binding Post, Flat Head, M6, .38” |
$5.57
|
|
