Catalyst 5Vx Replacement Parts in Front Frame / Catalyst 80 Degree Fixed Front Frame by Ki Mobility

Loading...

Front Frame » Catalyst 80 Degree Fixed Front Frame

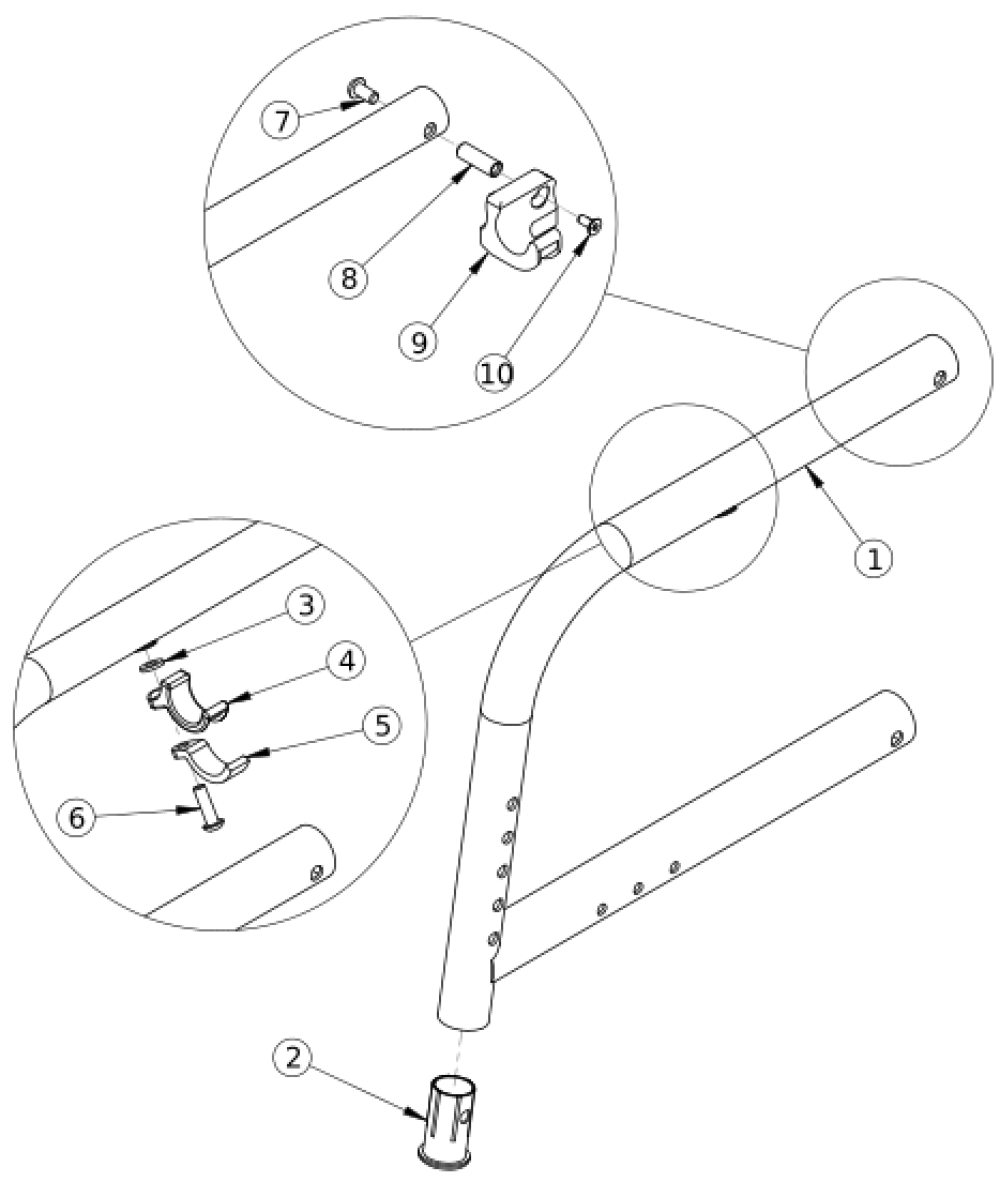

Catalyst 80 Degree Fixed Front Frame parts diagram
(Click on image to enlarge)

Color Codes
Frame assemblies based on Seat Depth
Pos.Part #DescriptionRemarksPriceBuy
1a, 2100388_ _ _Frame Assm Cat Front Fixed 80 Left 14 _ _ _N/APlease Call
1b, 2100390_ _ _Frame Assm Cat Front Fixed 80 Left 15 _ _ _N/APlease Call
1c, 2100392_ _ _Frame Assm Cat Front Fixed 80 Left 16 _ _ _N/APlease Call
1d, 2100394_ _ _Frame Assm Cat Front Fixed 80 Left 17 _ _ _N/APlease Call
1e, 2501617_ _ _Frame Assm Cat Front Fixed 80 Left 18 _ _ _N/APlease Call
1f, 2501618_ _ _Frame Assm Cat Front Fixed 80 Left 19 _ _ _N/APlease Call
1g, 2100396_ _ _Frame Assm Cat Front Fixed 80 Left 20 _ _ _
$119.20
1h, 2100387_ _ _Frame Assm Cat Front Fixed 80 Right 14 _ _ _N/APlease Call
1i, 2100389_ _ _Frame Assm Cat Front Fixed 80 Right 15 _ _ _N/APlease Call
1j, 2100391_ _ _Frame Assm Cat Front Fixed 80 Right 16 _ _ _N/APlease Call
1k, 2100393_ _ _Frame Assm Cat Front Fixed 80 Right 17 _ _ _N/APlease Call
1l, 2501619_ _ _Frame Assm Cat Front Fixed 80 Right 18 _ _ _N/APlease Call
1m, 2501620_ _ _Frame Assm Cat Front Fixed 80 Right 19 _ _ _N/APlease Call
1n, 2100395_ _ _Frame Assm Cat Front Fixed 80 Right 20 _ _ _N/APlease Call
2000034Sleeve 3/4" x 1 1/2"
$3.59
31008311/2" Washer OD .040" Thick
$1.55
4000003Seat Hook CAT
$7.55
5000004Seat Hook Support CAT
$6.42
6100668M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.55
3, 4, 5, 6501005Seat Hook and Support Hardware Kit, CatalystThis kit contains quantity of 1 each
$17.06
