Name: Catalyst 5Vx: Catalyst 5vx Side Frame Assembly
Manufacturer: Ki Mobility

(Click on image to enlarge)

Attachments:

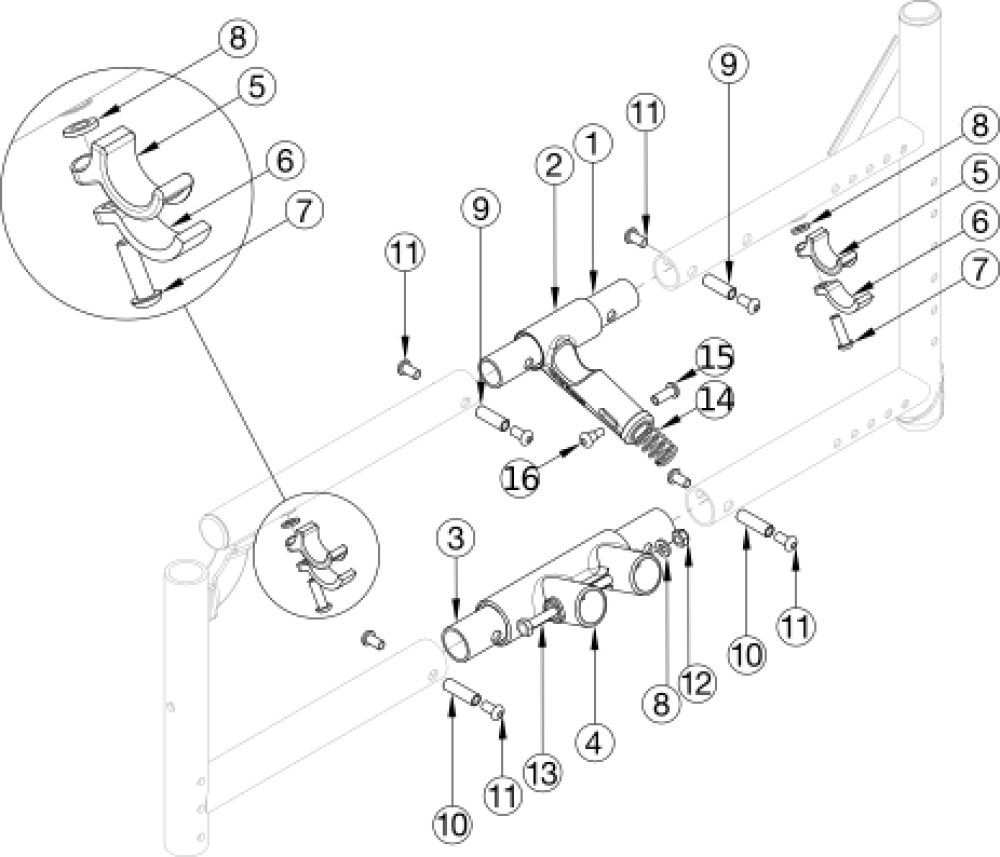

Catalyst 5vx Side Frame Assembly

Pos.	Part #	Description	Remarks	Price
1	000011	Frame Connector Upper CAT		$4.49
2a	001454	Upper Frame Pivot 14" Wide CAT- If wanting to replace the Upper Pivot, order the Upper Pivot Assembly 500024	If wanting to replace the Upper Pivot, order the Upper Pivot Assembly 500024	$22.10
2b	000002	Upper Frame Pivot 15" - 22" Wide CAT- If wanting to replace the Upper Pivot, order the Upper Pivot Assembly based on the chair width	If wanting to replace the Upper Pivot, order the Upper Pivot Assembly based on the chair width	$22.33
3	000009	Frame Connector Lower CAT		$4.49
4	000001	Lower Frame Pivot CAT		$27.17
5	000003	Seat Hook CAT ()		$7.55
6	000004	Seat Hook Support CAT ()		$6.42
7	100668	M6 x 20 CLS10.9 BTN SHCS ZC w/Patch ()		$1.55
8	100831	1/2" Washer OD .040" Thick ()		$1.55
5, 6, 7, 8	501005	Seat Hook and Support Hardware Kit, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$17.06
9	000065	M6 x 23.68 Threaded Barrel ()- Additional 2 are needed with chairs 18"-20" deep	Additional 2 are needed with chairs 18"-20" deep	$4.05
10	000066	M6 x 27 Threaded Barrel ()		$4.37
11	100667	M6 x 12 BTN SHCS BLKZC w/Patch ()		$1.55
12	000336	Latch Block		$36.78
13	101819	M6 x 40 FHCS Blk Zn		$1.03
14	100658	M6 Nylock Nut Blk Zn ()		$1.03
15	100704	M6 x 90 CLS8.8 DIN931 HHCS ZC		$1.55
16	000118	Pivot Spring CAT- If wanting to replace the Pivot Spring, order the Upper Pivot Assembly based on the chair width	If wanting to replace the Pivot Spring, order the Upper Pivot Assembly based on the chair width	$3.34
17	100760	Bind Post CAT- If wanting to replace the Bind Post, order the Upper Pivot Assembly based on the chair width	If wanting to replace the Bind Post, order the Upper Pivot Assembly based on the chair width	$1.84
18	100761	Bind Post Screw CAT- If wanting to replace the Bind Post Screw, order the Upper Pivot Assembly based on the chair width	If wanting to replace the Bind Post Screw, order the Upper Pivot Assembly based on the chair width	$4.00
19	100746	M6 Flat Washer Blk Zn		$1.55
2a, 16 - 18	500024	Upper Pivot Assembly 14"- This kit also contains the 14" slider link (not pictured)	This kit also contains the 14" slider link (not pictured)	$43.89
2b, 16 - 18	500025	Upper Pivot Assembly 15"- This kit also contains the 15" slider link (not pictured)	This kit also contains the 15" slider link (not pictured)	$43.89
2b, 16 - 18	500026	Upper Pivot Assembly 16"- This kit also contains the 16" slider link (not pictured)	This kit also contains the 16" slider link (not pictured)	$43.89
2b, 16 - 18	500027	Upper Pivot Assembly 17"- This kit also contains the 17" slider link (not pictured)	This kit also contains the 17" slider link (not pictured)	$43.89
2b, 16 - 18	500028	Upper Pivot Assembly 18"- This kit also contains the 18" slider link (not pictured)	This kit also contains the 18" slider link (not pictured)	$43.89
2b, 16 - 18	500029	Upper Pivot Assembly 19"- This kit also contains the 19" slider link (not pictured)	This kit also contains the 19" slider link (not pictured)	$43.89
2b, 16 - 18	500030	Upper Pivot Assembly 20"- This kit also contains the 20" slider link (not pictured)	This kit also contains the 20" slider link (not pictured)	$43.89
2b, 16 - 18	501479	Upper Pivot Assembly 21/22"- This kit also contains the 21/22" slider link (not pictured)	This kit also contains the 21/22" slider link (not pictured)	$43.89
