Name: Catalyst 5Vx: Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

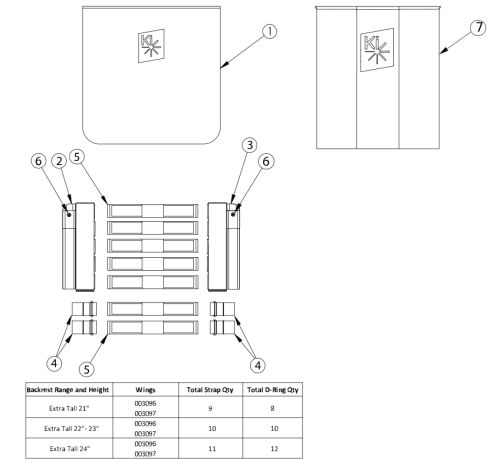

Part Picture
(Click on image to enlarge)
Assemblies contain the cover, amount of straps and d-rings used for the tallest height of 24"
Attaching hardware is not included with the back upholstery assemblies
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 4, 5a | 506794 | Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 21" - 24", Extra Tall Backposts |
$666.13
|
EA |
|
|
| 1b, 2 - 4, 5b | 506795 | Back Upholstery Assembly Tension Adjustable with Standard Cover 17W, 21" - 24", Extra Tall Backposts |
$619.55
|
EA |
|
|
| 1c, 2 - 4, 5c | 506796 | Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 21" - 24", Extra Tall Backposts |
$619.55
|
EA |
|
|
| 1d, 2 - 4, 5d | 506797 | Back Upholstery Assembly Tension Adjustable with Standard Cover 19W, 21" - 24", Extra Tall Backposts |
$657.98
|
EA |
|
|
| 1e, 2 - 4, 5e | 506798 | Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 21" - 24", Extra Tall Backposts |
$657.98
|
EA |
|
|
| 1f, 2 - 4, 5f | 506799 | Back Upholstery Assembly Tension Adjustable with Standard Cover 21W, 21" - 24", Extra Tall Backposts |
$657.98
|
EA |
|
|
| 1g, 2 - 4, 5g | 506800 | Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 21" - 24", Extra Tall Backposts |
$675.45
|
EA |
|
|
| 2 - 4, 5a, 7a | 108028 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 21" - 24", Extra Tall Backposts |
$497.59
|
EA |
|
|
| 2 - 4, 5b, 7b | 108029 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 17W, 21" - 24", Extra Tall Backposts |
$449.60
|
EA |
|
|
| 2 - 4, 5c, 7c | 108030 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 21" - 24", Extra Tall Backposts |
$449.60
|
EA |
|
|
| 2 - 4, 5d, 7d | 108031 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 19W, 21" - 24", Extra Tall Backposts |
$453.19
|
EA |
|
|
| 2 - 4, 5e, 7e | 108032 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 21" - 24", Extra Tall Backposts |
$453.19
|
EA |
|
|
| 2 - 4, 5f, 7f | 108033 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 21W, 21" - 24", Extra Tall Backposts |
$453.19
|
EA |
|
|
| 2 - 4, 5g, 7g | 108034 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 21" - 24", Extra Tall Backposts |
$471.18
|
EA |
|
|
| 1a | 003237 | Backrest Cover 16" CAT/Liberty x 21-24" |
$239.90
|
EA |
|
|
| 1b | 003047 | Backrest Cover 17" CAT/Liberty x 21-24" |
$191.93
|
EA |
|
|
| 1c | 003053 | Backrest Cover 18" CAT/Liberty x 21-24" |
$191.93
|
EA |
|
|
| 1d | 003059 | Backrest Cover 19" CAT/Liberty x 21-24" |
$191.93
|
EA |
|
|
| 1e | 003065 | Backrest Cover 20" CAT/Liberty x 21-24" |
$191.93
|
EA |
|
|
| 1f | 003071 | Backrest Cover 21" CAT/Liberty x 21-24" |
$191.93
|
EA |
|
|
| 1g | 003075 | Backrest Cover 22" CAT/Liberty x 21-24" |
$209.92
|
EA |
|
|
| 2 | 003097 | Tension Adjustable Upholstery Wing 9.5" Height Left |
$71.98
|
EA |
|
|
| 3 | 003096 | Tension Adjustable Upholstery Wing 9.5" Height Right |
$71.98
|
EA |
|
|
| 4 | 100973 | Back Upholstery D-Ring |
$12.01
|
|
||
| 5a | 002533 | Back Upholstery Strap 19.3"- Used on 16" chair widths | Used on 16" chair widths |
$14.40
|
EA |
|
| 5b | 002534 | Back Upholstery Strap 21.3"- Used on 17" chair widths | Used on 17" chair widths |
$14.40
|
EA |
|
| 5c | 002535 | Back Upholstery Strap 23.3"- Used on 18" chair widths | Used on 18" chair widths |
$14.40
|
EA |
|
| 5d | 002536 | Back Upholstery Strap 25.3"- Used on 19" chair widths | Used on 19" chair widths |
$18.00
|
EA |
|
| 5e | 002537 | Back Upholstery Strap 27.3"- Used on 20" chair widths | Used on 20" chair widths |
$18.00
|
EA |
|
| 5f | 002538 | Back Upholstery Strap 29.3"- Used on 21" chair widths | Used on 21" chair widths |
$18.00
|
EA |
|
| 5g | 002539 | Back Upholstery Strap 31.3"- Used on 22" chair widths | Used on 22" chair widths |
$18.00
|
EA |
|
| 6 | 100734 | M5 x 16 PHMS ZC |
$1.81
|
EA |
|
|
| 7a | 003908 | Air Mesh Backrest Cover 16C 15R Width x 21-24" Height |
$327.25
|
EA |
|
|
| 7b | 003917 | Air Mesh Backrest Cover 17C 16R Width x 21-24" Height |
$279.27
|
EA |
|
|
| 7c | 003923 | Air Mesh Backrest Cover 18C 17R Width x 21-24" Height |
$279.27
|
EA |
|
|
| 7d | 003929 | Air Mesh Backrest Cover 19C 18R Width x 21-24" Height |
$279.27
|
EA |
|
|
| 7e | 003935 | Air Mesh Backrest Cover 20C 19R Width x 21-24" Height |
$279.27
|
EA |
|
|
| 7f | 003941 | Air Mesh Backrest Cover 21C 20R Width x 21-24" Height |
$279.27
|
EA |
|
|
| 7g | 003945 | Air Mesh Backrest Cover 22C 21R Width x 21-24" Height |
$297.27
|
EA |
|
