loadingLoading... Catalyst 5Vx

Catalyst 5vx

Name: Catalyst 5Vx: (discontinued) Short Thro Scissor Wheel Lock
Manufacturer: Ki Mobility

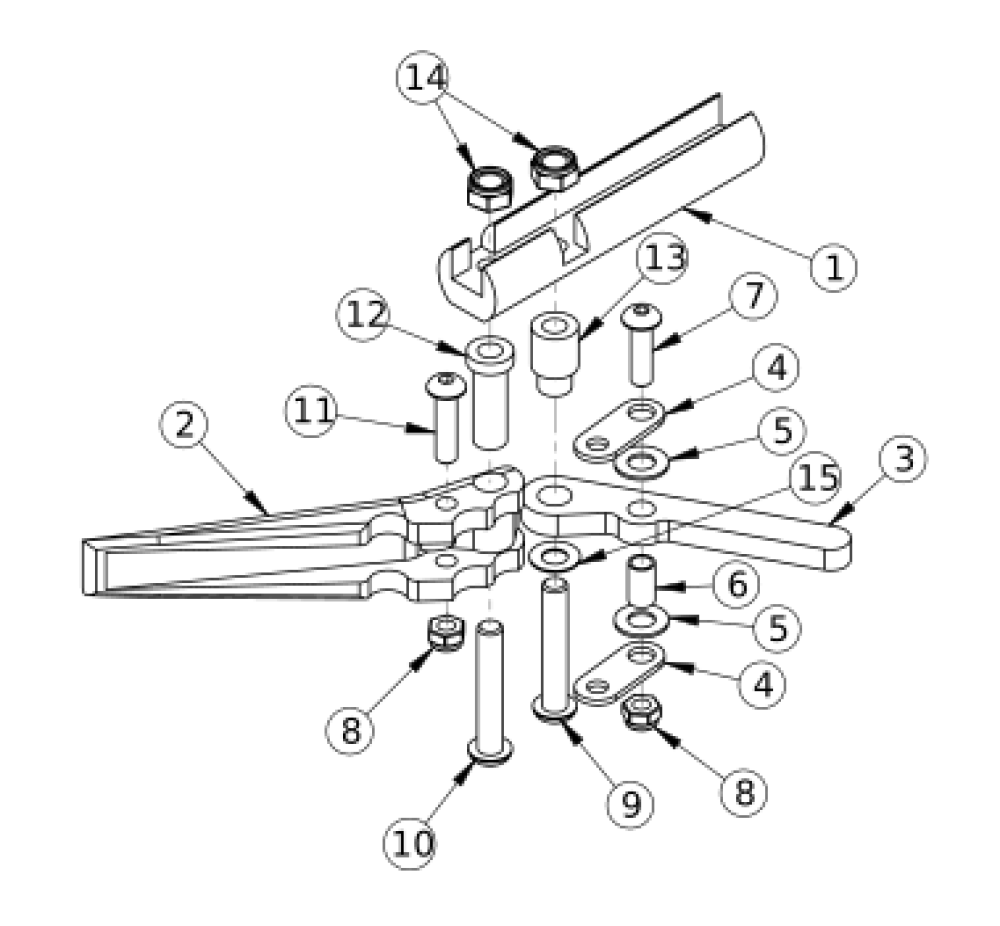

(discontinued) Short Thro Scissor Wheel Lock parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 2 - 15 506657 Short Thro Scissor Wheel Lock Assembly with Instruction, Left- This kit contains 102544 wheel lock along with an instruction for reversing the wheel lock.
$108.70
EA
1b, 2 - 15 506658 Short Thro Scissor Wheel Lock Assembly with Instruction, Right- This kit contains 102546 wheel lock along with an instruction for reversing the wheel lock.
$108.70
EA
1a, 1b, 2 - 15 500993 Wheel Lock Short Thro Scissor Assembly with Instruction, PAIR
$217.39
EA
1a 000364L Scissor Lock Mount Bar Left
$11.01
EA
1b 000364R Scissor Lock Mount Bar Right
$11.01
EA
2 000365 Scissor Lock Handle
$12.99
EA
3 000366 Scissor Lock Brake Arm
$20.00
EA
4 000367 Scissor Lock Link
$4.08
5 000369 Flat Washer .5 x .257 x .0032 Plastic
$1.09
6 000368 Scissor Lock Bushing
$8.01
EA
7 101716 M5 x 16 SHCS Blk Zn
$1.17
EA
8 100657 M5 Nylock Nut Blk Zn
$0.60
EA
9 101119 M6 X 32 BHCS bright
$1.26
EA
10 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
11 101560 M5 x 30 BTN SHCS ZC
$2.36
EA
12 000370 Scissor Lock Pivot Bushing
$4.08
EA
13 000371 Scissor Lock Arm Bushing
$4.01
EA
14 100658 M6 Nylock Nut Blk Zn
$1.17
EA
15 000372 Scissor Lock Disc Spring
$2.64
EA
