Catalyst 5vx

Name: Catalyst 5Vx: Catalyst 5vx Transit
Manufacturer: Ki Mobility

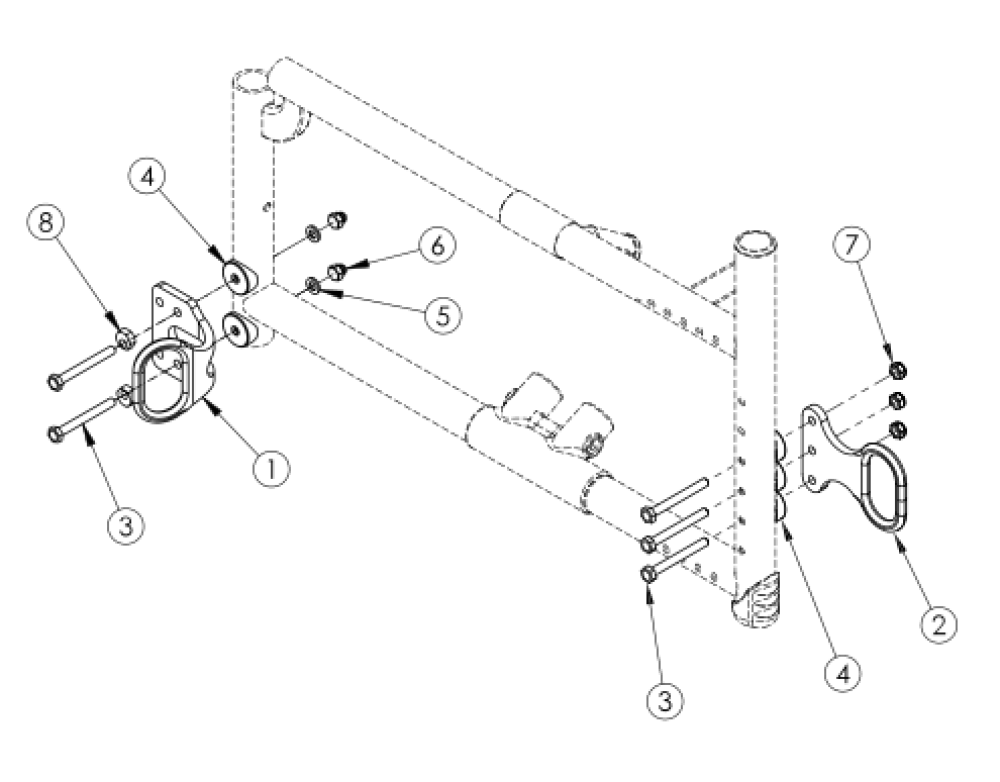

Catalyst 5vx Transit parts diagram

(Click on image to enlarge)

Not available with Heavy Duty Option

Attachments:

Catalyst 5vx Transit

Pos.	Part #	Description	Remarks	Price	Buy
1 - 2, 3a - 3c, 4 - 8	500548	Transit Bracket Retrofit Kit CAT5 / SPARK- Not available with Heavy Duty Option. This kit is a complete retrofit, containing a pair of front and rear transit brackets and hardware.	Not available with Heavy Duty Option. This kit is a complete retrofit, containing a pair of front and rear transit brackets and hardware.	$382.58
3a	101826	M6 x 50 HHCS Blk Zn ()- Use quantity 2 if only Transit is present; Use quantity 1 if Transit and Anti-Tip bracket are present	Use quantity 2 if only Transit is present; Use quantity 1 if Transit and Anti-Tip bracket are present	$2.10
3b	100676	M6 x 55 CLS10.9 DIN931 HHCS ZC ()- Use quantity 2 if Transit and Anti-Tip bracket are present. Use quantity 1 if Swing Away Arm bracket, Transit, and Anti-Tip bracket are present	Use quantity 2 if Transit and Anti-Tip bracket are present. Use quantity 1 if Swing Away Arm bracket, Transit, and Anti-Tip bracket are present	$1.58
3c	100677	M6 x 60 CLS10.9 DIN931 HHCS ZC ()- Used to attach Front Transit Bracket. Use quantity 2 if Transit, Anti-Tip bracket and Swing Away Arm bracket are present	Used to attach Front Transit Bracket. Use quantity 2 if Transit, Anti-Tip bracket and Swing Away Arm bracket are present	$1.58
4	000056	Saddle 1 1/8" ()		$1.58
5	100746	M6 Flat Washer Blk Zn ()		$1.58
6	100558	M6 NYL INS Domed Cap L/N ZC ()		$1.05
7	100658	M6 Nylock Nut Blk Zn ()		$1.05
8	100510	Eccentric Washer ()		$1.65
