Catalyst 5vx

Name: Catalyst 5Vx: Catalyst Super Low Swing Away Front Frame
Manufacturer: Ki Mobility

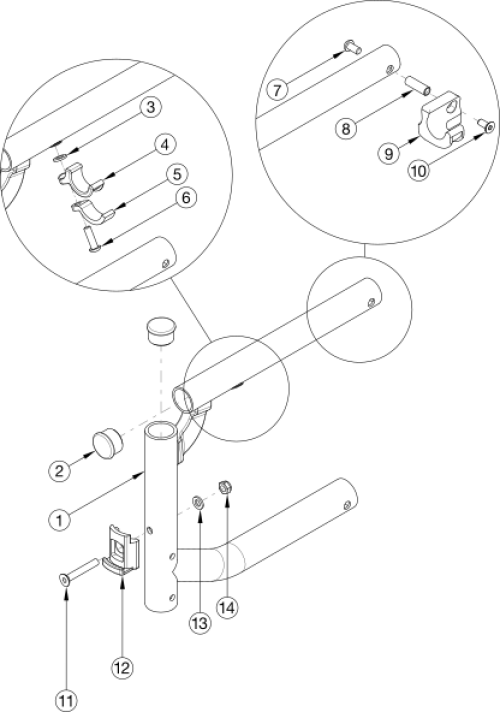

Catalyst Super Low Swing Away Front Frame parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	Buy
3, 4, 5, 6	501005	Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$17.39
7, 8, 9a, 10	111569	Seat Hook and Support Hardware Kit, Seating System, Right Side, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$29.55
7, 8, 9b, 10	111570	Seat Hook and Support Hardware Kit, Seating System, Left Side, Catalyst- This kit contains quantity of 1 each	This kit contains quantity of 1 each	$29.55
1a, 2	100398_ _ _	Frame Assm Cat Front Low Left 14 _ _ _		N/A	Please Call
1b, 2	100400_ _ _	Frame Assm Cat Front Low Left 15 _ _ _		N/A	Please Call
1c, 2	100402_ _ _	Frame Assm Cat Front Low Left 16 _ _ _		N/A	Please Call
1d, 2	100404_ _ _	Frame Assm Cat Front Low Left 17 _ _ _		N/A	Please Call
1e, 2	501609_ _ _	Frame Assm Cat Front Low Left 18 _ _ _		N/A	Please Call
1f, 2	501610_ _ _	Frame Assm Cat Front Low Left 19 _ _ _		N/A	Please Call
1g, 2	100406_ _ _	Frame Assm Cat Front Low Left 20 _ _ _		N/A	Please Call
1h, 2	100397_ _ _	Frame Assm Cat Front Low Right 14 _ _ _		N/A	Please Call
1i, 2	100399_ _ _	Frame Assm Cat Front Low Right 15 _ _ _		N/A	Please Call
1j, 2	100401_ _ _	Frame Assm Cat Front Low Right 16 _ _ _		N/A	Please Call
1k, 2	100403_ _ _	Frame Assm Cat Front Low Right 17 _ _ _		N/A	Please Call
1l, 2	501611_ _ _	Frame Assm Cat Front Low Right 18 _ _ _		N/A	Please Call
1m, 2	501612_ _ _	Frame Assm Cat Front Low Right 19 _ _ _		N/A	Please Call
1n, 2	100405_ _ _	Frame Assm Cat Front Low Right 20 _ _ _		N/A	Please Call
2	100804	Tube End Plug 1"- Quantity 2 when omitting hangers	Quantity 2 when omitting hangers	$1.58
3	100831	1/2" Washer OD .040" Thick		$1.58
4	000003	Seat Hook CAT		$7.70
5	000004	Seat Hook Support CAT		$6.55
6	100668	M6 x 20 CLS10.9 BTN SHCS ZC w/Patch		$1.58
7	100667	M6 x 12 BTN SHCS BLKZC w/Patch		$1.58
8	000065	M6 x 23.68 Threaded Barrel		$4.13
9a	000960R	Seat Hook Open Frame Right Front Frame / Left Rear Frame CAT		$21.74
9b	000960L	Seat Hook Open Frame Left Front Frame / Right Rear Frame CAT		$21.74
10	101594	M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch		$2.10
