Catalyst 5vx
Name: Catalyst 5Vx: Catalyst 5vx Fixed Mount Fender Side Guard
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

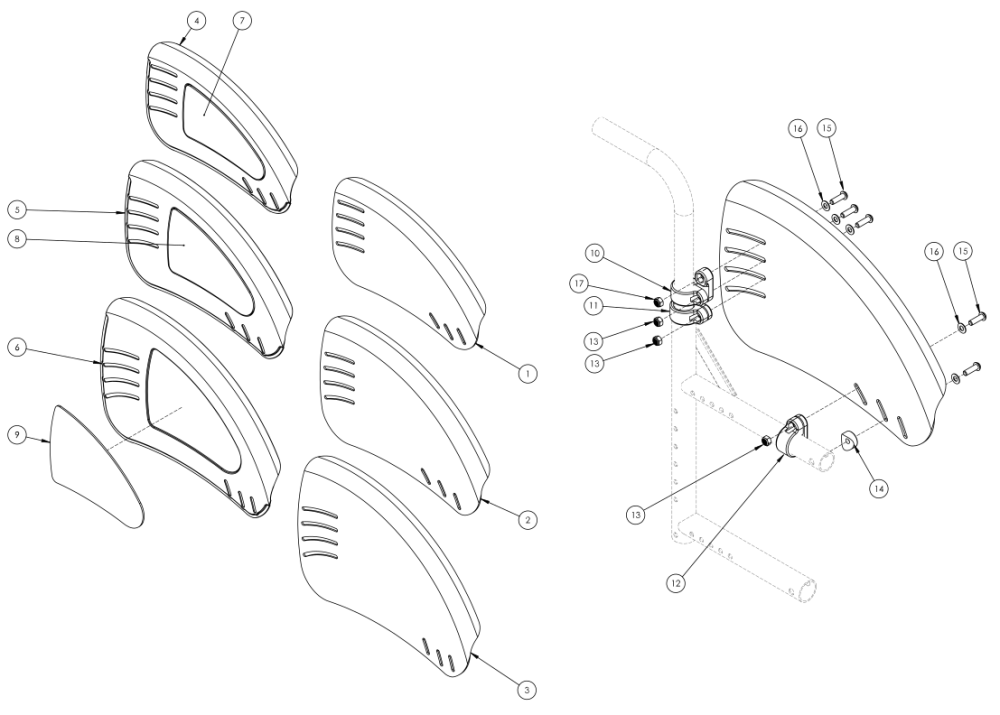

Part Picture
(Click on image to enlarge)
Fender Side Guard Reference | Wheel & Tire Outside Diameter ReferenceSome configurations may require the wheel locks to be reversed or use the extended wheel lock mount bar, part number 001321.
If the chair has a long rear frame and a serial number prior to C5053765, C5HD003546, or CVX0091137, a new long rear frame is required.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 10 - 17 | 506290 | Fixed Mount Fender Side Guard Mounting Hardware Kit, Catalyst- Contains hardware for a pair of Fender Side Guards | Contains hardware for a pair of Fender Side Guards | $85.50 | EA | |
| 4a, 7a | 506291 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Small, Right | $80.52 | EA | ||
| 4b, 7b | 506292 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Small, Left | $80.52 | EA | ||
| 5a, 8a | 506293 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Medium, Right | $80.52 | EA | ||
| 5b, 8b | 506294 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Medium, Left | $80.52 | EA | ||
| 6a, 9a | 506295 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Large, Right | $80.52 | EA | ||
| 6b, 9b | 506296 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Large, Left | $80.52 | EA | ||
| 4a, 4b, 7a, 7b | 506297 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Small, PAIR | $161.06 | EA | ||
| 5a, 5b, 8a, 8b | 506298 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Medium, PAIR | $161.06 | EA | ||
| 6a, 6b, 9a, 9b | 506299 | Fixed Mount Aluminum Fender Side Guard w/Foam Insert, Large, PAIR | $161.06 | EA | ||
| 4a, 4b, 7a, 7b, 10 - 17 | 506300 | Fixed Mount Aluminum Fender Side Guard Assembly, Small, PAIR, Catalyst | $246.55 | EA | ||
| 5a, 5b, 8a, 8b, 10 - 17 | 506301 | Fixed Mount Aluminum Fender Side Guard Assembly, Medium, PAIR, Catalyst | $246.55 | EA | ||
| 6a, 6b, 9a, 9b, 10 - 17 | 506302 | Fixed Mount Aluminum Fender Side Guard Assembly, Large, PAIR, Catalyst | $246.55 | EA | ||
| 1a, 1b | 506303 | Fixed Mount Carbon Fiber Fender Side Guard, Small, PAIR | $551.57 | EA | ||
| 2a, 2b | 506304 | Fixed Mount Carbon Fiber Fender Side Guard, Medium, PAIR | $551.57 | EA | ||
| 3a, 3b | 506305 | Fixed Mount Carbon Fiber Fender Side Guard, Large, PAIR | $551.57 | EA | ||
| 1a, 1b, 10 - 17 | 506306 | Fixed Mount Carbon Fiber Fender Side Guard Assembly, Small, PAIR, Catalyst | $637.07 | EA | ||
| 2a, 2b, 10 - 17 | 506307 | Fixed Mount Carbon Fiber Fender Side Guard Assembly, Medium, PAIR, Catalyst | $637.07 | EA | ||
| 3a, 3b, 10 - 17 | 506308 | Fixed Mount Carbon Fiber Fender Side Guard Assembly, Large, PAIR, Catalyst | $637.07 | EA | ||
| 1a | 003619 | Fender, Carbon Fiber, Solid Mount, Small, Right | $275.78 | EA | ||
| 1b | 003620 | Fender, Carbon Fiber, Solid Mount, Small, Left | $275.78 | EA | ||
| 2a | 003621 | Fender, Carbon Fiber, Solid Mount, Medium, Right | $275.78 | EA | ||
| 2b | 003622 | Fender, Carbon Fiber, Solid Mount, Medium, Left | $275.78 | EA | ||
| 3a | 003623 | Fender, Carbon Fiber, Solid Mount, Large, Right | $275.78 | EA | ||
| 3b | 003624 | Fender, Carbon Fiber, Solid Mount, Large, Left | $275.78 | EA | ||
| 4a | 003601 | Fender, Aluminum, Solid Mount, Small, Right | $71.70 | EA | ||
| 4b | 003602 | Fender, Aluminum, Solid Mount, Small, Left | $71.70 | EA | ||
| 5a | 003603 | Fender, Aluminum, Solid Mount, Medium, Right | $71.70 | EA | ||
| 5b | 003604 | Fender, Aluminum, Solid Mount, Medium, Left | $71.70 | EA | ||
| 6a | 003605 | Fender, Aluminum, Solid Mount, Large, Right | $71.70 | EA | ||
| 6b | 003606 | Fender, Aluminum, Solid Mount, Large, Left | $71.70 | EA | ||
| 7b | 003607 | Fender Foam Insert, Small, Pair | $19.00 | EA | ||
| 8b | 003609 | Fender Foam Insert, Medium, Pair | $19.00 | EA | ||
| 9b | 003611 | Fender Foam Insert, Large, Pair | $19.00 | EA | ||
| 10a | 003592 | Fender Clamp, 0.875" ID, Right- Used with Standard Backrests; Mounted to back post | Used with Standard Backrests; Mounted to back post | $9.65 | EA | |
| 10b | 003591 | Fender Clamp, 0.875" ID, Left- Used with Standard Backrests; Mounted to back post | Used with Standard Backrests; Mounted to back post | $9.65 | EA | |
| 11 | 003594 | Fender Clamp, 1.125" ID- Used with Angle Adjustable Backrest; Mounted to rear frame | Used with Angle Adjustable Backrest; Mounted to rear frame | $9.65 | EA | |
| 12 | 003593 | Fender Clamp, 1.0" ID- Used when mounting to frame | Used when mounting to frame | $9.65 | EA | |
| 13 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 14 | 004436 | Fender Side Guard Saddle- Used when mounting to frame | Used when mounting to frame | $5.51 | EA | |
| 15 | 102623 | M6 x 20 BHCS BLK ZC | $1.10 | EA | ||
| 16 | 101853 | M6 Washer Blk Zn | $0.56 | EA | ||
| 17 | 103960 | M6 SS BLK Oxide Standard Nut | $2.21 | EA |
