Catalyst 5Vx Replacement Parts in Side Frame Assembly / Catalyst 5vx Side Frame Assembly - Open Seating (seating System) by Ki Mobility

Loading...

Side Frame Assembly » Catalyst 5vx Side Frame Assembly - Open Seating (seating System)

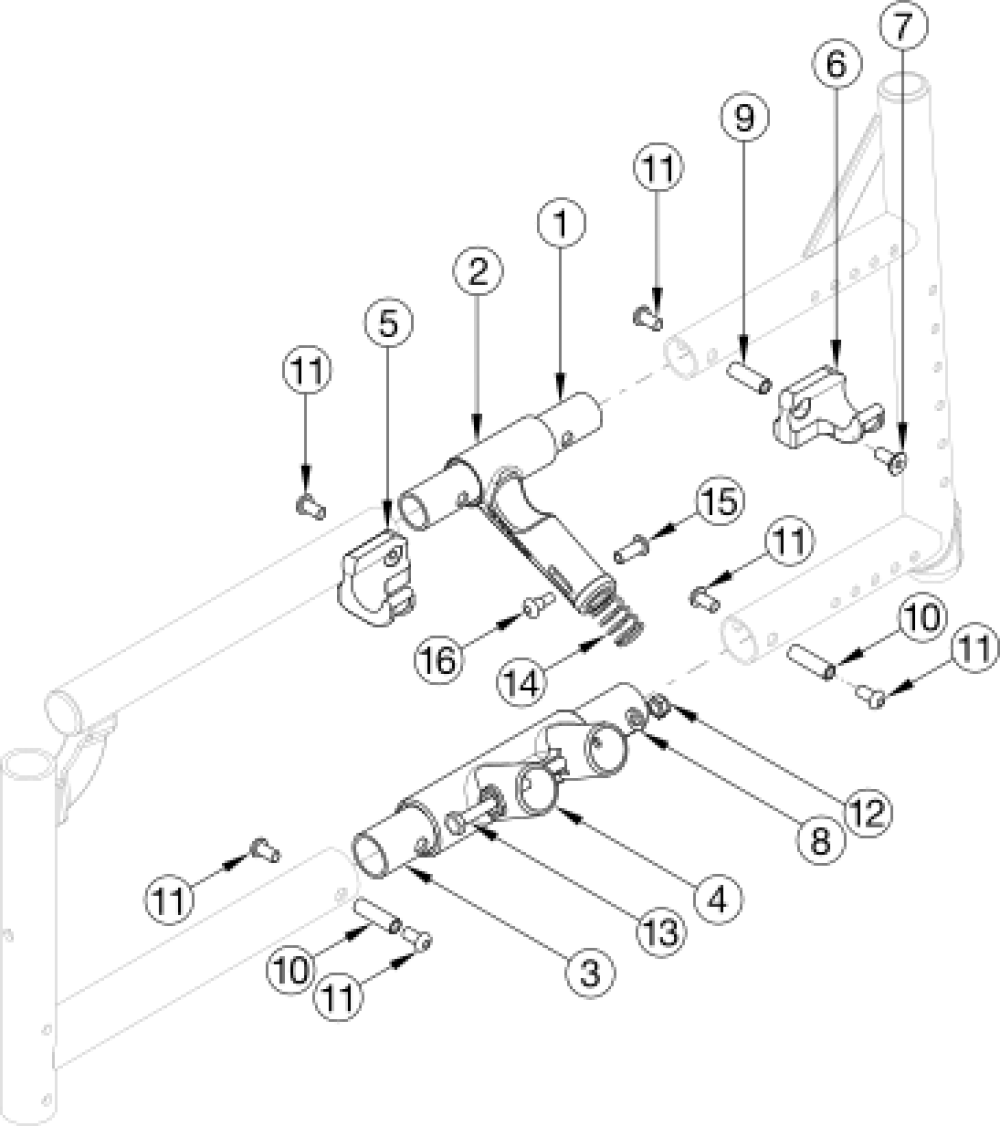

Catalyst 5vx Side Frame Assembly - Open Seating (seating System) parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionRemarksPriceBuy
1000011Frame Connector Upper CAT
$4.36
2a000002Upper Frame Pivot 15" - 22" Wide CATIf wanting to replace the Upper Pivot, please order the Upper Pivot Assembly based on the chair widthN/APlease Call
2b001454Upper Frame Pivot 14" Wide CATIf wanting to replace the Upper Pivot, Please order the Upper Pivot Assembly 500024N/APlease Call
3000009Frame Connector Lower CAT
$4.36
4a000001Lower Frame Pivot CATUsed with round style cross braces effective prior to 6/15/16
$26.38
4b002806Lower Frame Pivot CATUsed with oval style cross braces effective 6/15/16
$10.00
5000960RSeat Hook Open Frame Right CAT
$20.70
6000960LSeat Hook Open Frame Left CAT
$20.70
7101594M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.00
8100746M6 Flat Washer Blk Zn
$1.50
9000065M6 x 23.68 Threaded Barrel
$3.93
10000066M6 x 27 Threaded Barrel
$4.24
11100667M6 x 12 BTN SHCS BLKZC w/Patch
$1.50
12000336Latch Block
$35.71
13101819M6 x 40 FHCS Blk Zn
$1.00
14100658M6 Nylock Nut Blk Zn
$1.00
15100704M6 x 90 CLS8.8 DIN931 HHCS ZC
$1.50
16000118Pivot Spring CATIf wanting to replace the Pivot Spring, please order the Upper Pivot Assembly based on the chair widthN/APlease Call
17100760Bind Post CATIf wanting to replace the Bind Post, please order the Upper Pivot Assembly based on the chair widthN/APlease Call
18100761Bind Post Screw CATIf wanting to replace the Bind Post Screw, please order the Upper Pivot Assembly based on the chair widthN/APlease Call
2b, 16 - 18500024Upper Pivot Assembly 14"This kit also contains the 14" slider link (not pictured)
$42.61
2a, 16 - 18500025Upper Pivot Assembly 15"This kit also contains the 15" slider link (not pictured)
$42.61
2a, 16 - 18500026Upper Pivot Assembly 16"This kit also contains the 16" slider link (not pictured)
$42.61
2a, 16 - 18500027Upper Pivot Assembly 17"This kit also contains the 17" slider link (not pictured)
$42.61
2a, 16 - 18500028Upper Pivot Assembly 18"This kit also contains the 18" slider link (not pictured)
$42.61
2a, 16 - 18500029Upper Pivot Assembly 19"This kit also contains the 19" slider link (not pictured)
$42.61
2a, 16 - 18500030Upper Pivot Assembly 20"This kit also contains the 20" slider link (not pictured)
$42.61
2a, 16 - 18501479Upper Pivot Assembly 21/22"This kit also contains the 21/22" slider link (not pictured)
$42.61
