Catalyst 5vx

Name: Catalyst 5Vx: Catalyst 8 Degree Bend Backrest
Manufacturer: Ki Mobility

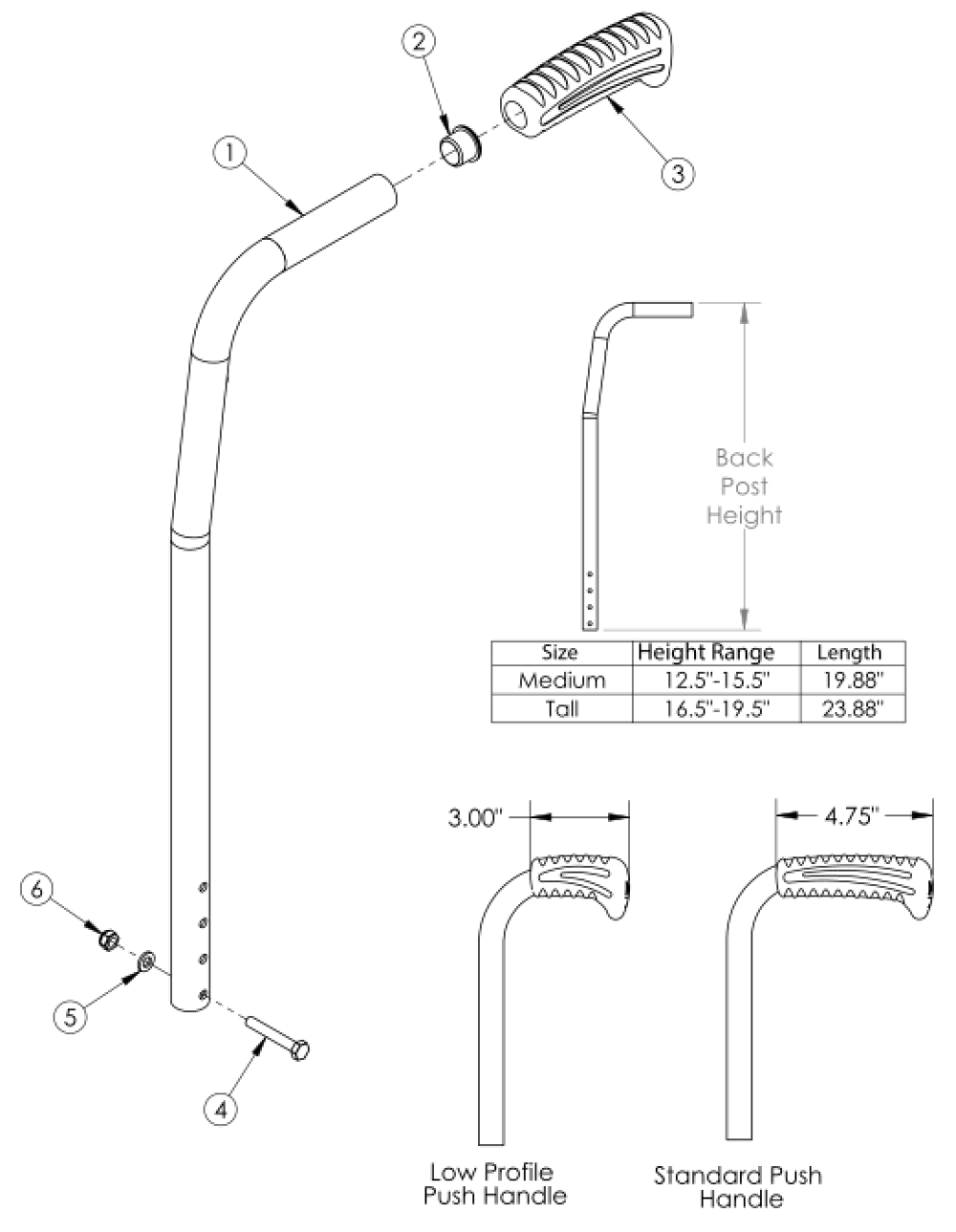

Catalyst 8 Degree Bend Backrest parts diagram
(Click on image to enlarge)

Low Profile Push Handles are not available with Heavy Duty Option or Drum Brake If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
Pos. Part # Description Price UOM Buy
1a, 2, 3a 100721 Back Post Assembly Medium 8° Bend with Standard Push Handle- Used if drum brake is not present
$81.27
EA
1b, 2, 3a 500550 Back Post Assembly Tall 8° Bend with Standard Push Handle- Used if drum brake is not present
$81.27
EA
1c, 2, 3a 113302 Backtube 8° Bend w/ Push Handle Medium with Backcane Extension, Drum Brake, Catalyst 5/VX- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page.
$67.11
EA
1d, 2, 3a 113303 Backtube 8° Bend w/ Push Handle Tall with Backcane Extension, Drum Brake, Catalyst 5/VX- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page.
$67.11
EA
1a, 2, 3b 002765 Back Post Assembly Medium 8° Bend with Low Profile Push Handle
$81.27
EA
1b, 2, 3b 002766 Back Post Assembly Tall 8° Bend with Low Profile Push Handle
$81.27
EA
2 100803 Tube End Plug 7/8"
$1.77
EA
3a 109433 Ergo Push Handle Grip 7/8" Standard with Instruction
$7.76
EA
3b 109431 Ergo Push Handle Grip 7/8" Low Profile with Instruction N/A EA Please Call
4 100681 M6 x 40 CLS8.8 DIN931 HHCS ZC
$1.77
EA
5 100746 M6 Flat Washer Blk Zn
$1.77
EA
6 100658 M6 Nylock Nut Blk Zn
$1.17
EA
