loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Footplates - Aluminum Locking Multi-angle Adjustable Footplate Front Mount
Manufacturer: Ki Mobility

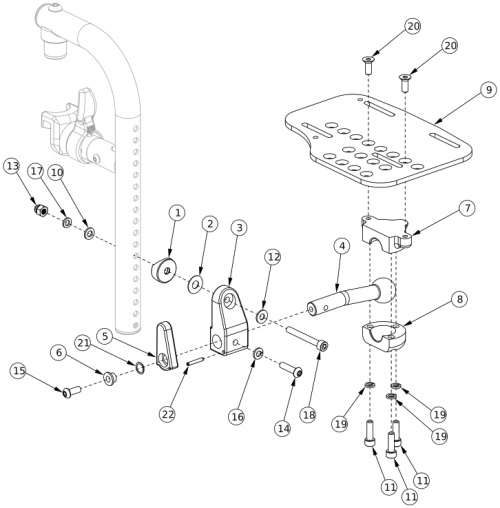

Focus Footplates - Aluminum Locking Multi-angle Adjustable Footplate Front Mount parts diagram
(Click on image to enlarge)

Sizes for footplates / assemblies are based on seat width with straight frame. If Focus chair has Offset Frame, add 2" to seat width. Only compatible with Front Mount Hangers.
Pos. Part # Description Price UOM Buy
1, 2, 3a, 4 - 8, 10 - 22 107618 Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, Right
$295.14
EA
1, 2, 3b, 4 - 8, 10 - 22 107619 Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, Left
$295.14
EA
1, 2, 3a - 3b, 4 - 8, 10 - 22 107620 Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, PAIR
$681.62
EA
1, 2, 3a, 4 - 8, 9a, 10 - 22 107605 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, Right
$364.00
EA
1, 2, 3a, 4 - 8, 9c, 10 - 22 107606 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, Right
$364.00
EA
1, 2, 3a, 4 - 8, 9e, 10 - 22 107607 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, Right
$364.00
EA
1, 2, 3b, 4 - 8, 9b, 10 - 22 107610 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, Left
$364.00
EA
1, 2, 3b, 4 - 8, 9d, 10 - 22 107611 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, Left
$364.00
EA
1, 2, 3b, 4 - 8, 9f, 10 - 22 107612 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, Left
$364.00
EA
1, 2, 3a - 3b, 4 - 8, 9a - 9b, 10 - 22 107615 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, PAIR
$728.00
EA
1, 2, 3a - 3b, 4 - 8, 9c - 9d, 10 - 22 107616 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, PAIR
$728.00
EA
1, 2, 3a - 3b, 4 - 8, 9e - 9f, 10 - 22 107617 Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, PAIR
$728.00
EA
1 000055 Saddle 1"
$1.77
EA
2 000428 Wear Washer
$2.94
EA
3a, 22 109294 Multi-Angle Footrest Mount 1", with Spring Pin, Right
$59.37
EA
3b, 22 109295 Multi-Angle Footrest Mount 1", with Spring Pin, Left
$59.37
EA
4 003820 Ball Shaft 1" Multi-Angle
$97.05
EA
5 003821 Latch, Footplate, Multi-Angle
$13.70
EA
6 003822 Bushing, Latch, Multi-Angle
$3.43
EA
7 003823 Clamp, Upper, Footplate, Multi-Angle
$39.96
EA
8 003824 Clamp, Lower, Footplate, Multi-Angle
$39.96
EA
9a 003829 Footplate, Multi-Angle, 14-15W, Right
$68.87
EA
9b 003830 Footplate, Multi-Angle, 14-15W, Left
$68.87
EA
9c 003831 Footplate, Multi-Angle, 16-17W, Right
$68.87
EA
9d 003832 Footplate, Multi-Angle, 16-17W, Left
$68.87
EA
9e 003833 Footplate, Multi-Angle, 18-24W, Right
$68.87
EA
9f 003834 Footplate, Multi-Angle, 18-24W, Left
$68.87
EA
10 100746 M6 Flat Washer Blk Zn
$1.77
EA
11 101180 M6 x 20 SHCS BLK ZC
$2.36
EA
12 101455 M6 Belleville Washer (.252 x .551 x .050)
$1.77
EA
13 101456 M6 Ovl Top L/N ZC
$1.77
EA
14 101593 M6 x 25 BTN SHCS BLKZC
$1.77
EA
15 101721 M6 x 16 Btn SHCS w/ Patch
$2.36
EA
16 101835 M6 Lock Washer Blk Zn
$0.60
EA
17 102072 Washer Nylon .234 ID x .406 OD x .062 Thick
$0.60
EA
18 102473 M6 X 50 CLS12.9 SHCS BLK ZC
$4.70
EA
19 102810 M6 Lockwasher, Hi-Collar, ZC
$0.60
EA
20 102936 M6 X 16 FHCS, Blk Zn
$1.17
21 103539 Wave Spring, 3/8IDx1/2ODx.009T, SS
$13.70
EA
