Tilt Mechanism » Focus Cr Hand Tilt Mechanism Fixed Height With Adjustable Handle Back

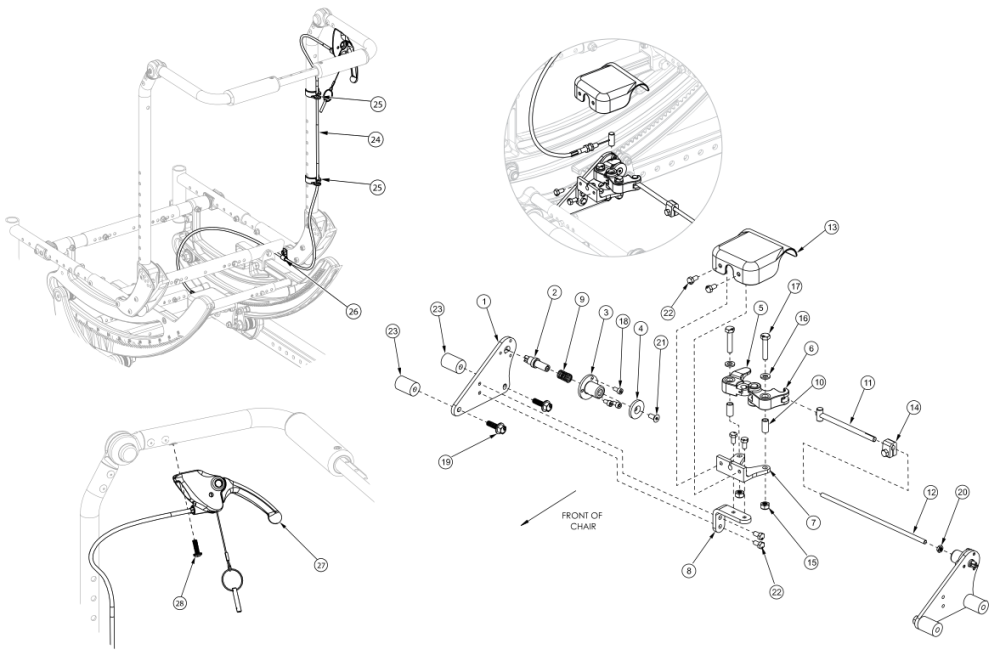

(Click on image to enlarge)
This design effective starting with serial numbers FCR0026599 and FCHD002333.
If serial number is prior to FCR0026599 and FCHD002333 new back cane assemblies are required in addition to the hand tilt mechanism.
| Pos. | Part # | Description | Remarks | Price | Buy |
|---|---|---|---|---|---|
| 1 | 004280 | Mount Plate, Tilt Lock | $14.21 | ||
| 2 | 004281 | Pin, Plunger, Tilt Lock | $60.46 | ||
| 3 | 004282 | Housing, Plunger, Tilt Lock | $10.30 | ||
| 4 | 004283 | Thrust Washer, Tilt Lock | $7.11 | ||
| 1 - 4, 9, 18, 19a | 506259 | Tilt Lock Mechanism Single Hand/Foot, Slave Right | $96.72 | ||
| 1 - 4, 9, 18, 19a | 506260 | Tilt Lock Mechanism Single Hand/Foot, Slave Left | $96.72 | ||
| 1 - 4, 9, 18, 19b, 23 | 506261 | Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Right | $151.93 | ||
| 1 - 4, 9, 18, 19b, 23 | 506262 | Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Left | $151.93 | ||
| 5 | 004284 | Cam Lever, Drive, Tilt Lock | $31.72 | ||
| 6 | 004285 | Cam Lever, Slave, Tilt Lock | $31.72 | ||
| 7 | 004286 | Mount, Linkage, Dual | $45.32 | ||
| 8 | 004289 | Bracket, Mount, Tilt Lock | $15.24 | ||
| 9 | 004290 | Spring, Comp, .42OD x 1.0L x .038W | $1.03 | ||
| 10 | 004291 | Bushing, Pivot, Tilt Lock | $6.70 | ||
| 11 | 004294 | Tube Assembly, Slave, Tilt Lock | $12.67 | ||
| 12a | 004295 | Rod, Slave, Small | Used with Small Width Range | $7.83 | |
| 12b | 004296 | Rod, Slave, Medium | Used with Medium Width Range | $8.03 | |
| 12c | 004297 | Rod, Slave, Large | Used with Large Width Range | $8.60 | |
| 11, 12a, 14, 20 | 506263 | Linkage Rod Assembly, Tilt, Small | Used with Small Width Range | $37.49 | |
| 11, 12b, 14, 20 | 506264 | Linkage Rod Assembly, Tilt, Medium | Used with Medium Width Range | $37.70 | |
| 11, 12c, 14, 20 | 506265 | Linkage Rod Assembly, Tilt, Large | Used with Large Width Range | $38.26 | |
| 13 | 004298 | Cover, Tilt Lock | $12.77 | ||
| 14 | 004308 | Shaft Clamp, 6mm x M5 | $16.48 | ||
| 15 | 100658 | M6 Nylock Nut Blk Zn | $1.03 | ||
| 16 | 100746 | M6 Flat Washer Blk Zn | $1.55 | ||
| 17 | 101824 | M6 x 30 HHCS Blk Zn | $2.06 | ||
| 18 | 102800 | M4 x 8mm SHCS Blk Zn DIN912 | $0.52 | ||
| 19a | 103510 | M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921 | Used with Standard Weight Capacity | $1.03 | |
| 19b | 103511 | M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921 | Used with Heavy Duty Option | $3.09 | |
| 20 | 103514 | M5 x 0.8 Jam Nut BLK ZN DIN439B | $0.52 | ||
| 21 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 | $1.03 | ||
| 22 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 | $0.52 | ||
| 23 | 001405 | Spacer, .69OD x .24ID x .1.01Lg | Used with Heavy Duty Option | $25.54 | |
| 24a | 004303 | Cable, Tilt, XL | Used with Short Fixed Height with Adjustable Handle | $108.15 | |
| 24b | 004304 | Cable, Tilt, XXL | Used with Tall Fixed Height with Adjustable Handle | $110.21 | |
| 25 | 001117 | Cable Clip 1" | $3.75 | ||
| 26 | 001239 | P-Clip 3/16" | $6.18 | ||
| 27 | 003492 | Lever Assembly, Straight | $24.46 | ||
| 28 | 100734 | M5 x 16 DIN7985 PHMS ZC | $1.55 | ||
| 1 - 11, 12a, 13 - 18, 19a, 20 - 22 | 506246 | Single Tilt Hand/Foot Kit, Right, Small Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $200.52 | |
| 1 - 11, 12b, 13 - 18, 19a, 20 - 22 | 506247 | Single Tilt Hand/Foot Kit, Right, Medium Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $221.81 | |
| 1 - 11, 12c, 13 - 18, 19a, 20 - 22 | 506248 | Single Tilt Hand/Foot Kit, Right, Large Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $204.97 | |
| 1 - 11, 12a, 13 - 18, 19a, 20 - 22 | 506266 | Single Tilt Hand/Foot Kit, Left, Small Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $200.52 | |
| 1 - 11, 12b, 13 - 18, 19a, 20 - 22 | 506267 | Single Tilt Hand/Foot Kit, Left, Medium Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $221.81 | |
| 1 - 11, 12c, 13 - 18, 19a, 20 - 22 | 506268 | Single Tilt Hand/Foot Kit, Left, Large Width Range, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $204.97 | |
| 1 - 11, 12a, 13 - 18, 19b, 20 - 23 | 506249 | Single Tilt Hand/Foot Kit, Right, Small Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 1 - 11, 12b, 13 - 18, 19b, 20 - 23 | 506250 | Single Tilt Hand/Foot Kit, Right, Medium Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 1 - 11, 12c, 13 - 18, 19b, 20 - 23 | 506251 | Single Tilt Hand/Foot Kit, Right, Large Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 1 - 11, 12a, 13 - 18, 19b, 20 - 23 | 506269 | Single Tilt Hand/Foot Kit, Left, Small Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 1 - 11, 12b, 13 - 18, 19b, 20 - 23 | 506270 | Single Tilt Hand/Foot Kit, Left, Medium Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 1 - 11, 12c, 13 - 18, 19b, 20 - 23 | 506271 | Single Tilt Hand/Foot Kit, Left, Large Width Range, Heavy Duty, Focus | For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit | $310.64 | |
| 24a, 25 - 28 | 506786 | Hand Tilt Cable/Trigger Kit with XL Cable, Fixed Height w/Adjustable Handle, Focus | Used with Short Fixed Height with Adjustable Handle Back Post | $161.12 | |
| 24b, 25 - 28 | 506787 | Hand Tilt Cable/Trigger Kit with XXL Cable, Fixed Height w/Adjustable Handle, Focus | Used with Tall Fixed Height with Adjustable Handle Back Post | $161.55 |
