loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Hand Tilt Mechanism Reclining Back
Manufacturer: Ki Mobility

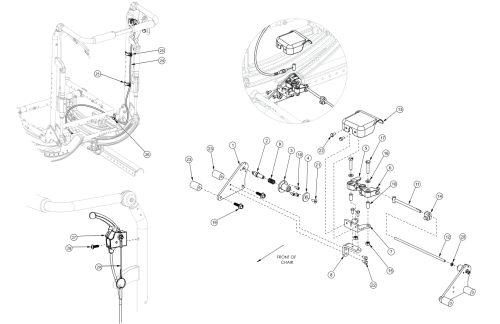

Focus Cr Hand Tilt Mechanism Reclining Back parts diagram
(Click on image to enlarge)

This design effective starting with serial numbers FCR0026599 and FCHD002333. If serial number is prior to FCR0026599 and FCHD002333 new back cane assemblies are required in addition to the hand tilt mechanism.
Pos. Part # Description Price UOM Buy
1 - 11, 12a, 13 - 18, 19a, 20 - 22 506246 Single Tilt Hand/Foot Kit, Right, Small Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$228.94
EA
1 - 11, 12b, 13 - 18, 19a, 20 - 22 506247 Single Tilt Hand/Foot Kit, Right, Medium Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$253.25
EA
1 - 11, 12c, 13 - 18, 19a, 20 - 22 506248 Single Tilt Hand/Foot Kit, Right, Large Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$234.02
EA
1 - 11, 12a, 13 - 18, 19a, 20 - 22 506266 Single Tilt Hand/Foot Kit, Left, Small Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$228.94
EA
1 - 11, 12b, 13 - 18, 19a, 20 - 22 506267 Single Tilt Hand/Foot Kit, Left, Medium Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$253.25
EA
1 - 11, 12c, 13 - 18, 19a, 20 - 22 506268 Single Tilt Hand/Foot Kit, Left, Large Width Range, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$234.02
EA
1 - 11, 12a, 13 - 18, 19b, 20 - 23 506249 Single Tilt Hand/Foot Kit, Right, Small Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12b, 13 - 18, 19b, 20 - 23 506250 Single Tilt Hand/Foot Kit, Right, Medium Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12c, 13 - 18, 19b, 20 - 23 506251 Single Tilt Hand/Foot Kit, Right, Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12d, 13 - 18, 19b, 20 - 23 114279 Single Tilt Hand/Foot Kit, Right, X-Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$355.34
EA
1 - 11, 12a, 13 - 18, 19b, 20 - 23 506269 Single Tilt Hand/Foot Kit, Left, Small Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12b, 13 - 18, 19b, 20 - 23 506270 Single Tilt Hand/Foot Kit, Left, Medium Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12c, 13 - 18, 19b, 20 - 23 506271 Single Tilt Hand/Foot Kit, Left, Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$354.66
EA
1 - 11, 12d, 13 - 18, 19b, 20 - 23 114280 Single Tilt Hand/Foot Kit, Left, X-Large Width Range, Heavy Duty, Focus- For complete tilt mechanism, select appropriate Hand Tilt Cable / Trigger Kit in addition to this kit
$355.34
EA
11, 12a, 14, 20 506263 Linkage Rod Assembly, Tilt, Small- Used with Small Frame Width Range
$42.80
EA
11, 12b, 14, 20 506264 Linkage Rod Assembly, Tilt, Medium- Used with Medium Frame Width Range
$43.04
EA
11, 12c, 14, 20 506265 Linkage Rod Assembly, Tilt, Large- Used with Large Frame Width Range
$43.69
EA
11, 12d, 14, 20 114281 Linkage Rod Assembly, Tilt, X-Large- Used with X-Large Frame Width Range
$44.36
EA
24a, 25 - 28 506791 Hand Tilt Cable/Trigger Kit with Medium Cable, Recline, Focus- Used with Short Recline Back Post
$148.43
EA
24b, 25 - 28 506792 Hand Tilt Cable/Trigger Kit with Long Cable, Recline, Focus- Used with Tall Recline Back Post
$149.40
EA
27, 28, 29 110139 Lever Assembly with Lanyard Vertical Tilt
$38.06
EA
1 004280 Mount Plate, Tilt Lock
$16.22
2 004281 Pin, Plunger, Tilt Lock
$69.02
3 004282 Housing, Plunger, Tilt Lock
$11.77
4 004283 Thrust Washer, Tilt Lock
$8.11
EA
1 - 4, 9, 18, 19a 506259 Tilt Lock Mechanism Single Hand/Foot, Slave Right
$110.42
EA
1 - 4, 9, 18, 19a 506260 Tilt Lock Mechanism Single Hand/Foot, Slave Left
$110.42
EA
1 - 4, 9, 18, 19b, 23 506261 Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Right
$173.47
EA
1 - 4, 9, 18, 19b, 23 506262 Tilt Lock Mechanism Single Hand/Foot, Heavy Duty, Slave Left
$173.47
EA
5 004284 Cam Lever, Drive, Tilt Lock
$36.21
EA
6 004285 Cam Lever, Slave, Tilt Lock
$36.21
EA
7 004286 Mount, Linkage, Dual
$51.75
EA
8 004289 Bracket, Mount, Tilt Lock
$17.40
EA
9 004290 Spring, Comp, .42OD x 1.0L x .038W
$1.17
10 004291 Bushing, Pivot, Tilt Lock
$7.65
11 004294 Tube Assembly, Slave, Tilt Lock
$14.47
EA
12a 004295 Rod, Slave, Small, 4.96"- Used with Small Frame Width Range
$8.94
EA
12b 004296 Rod, Slave, Medium, 6.96"- Used with Medium Frame Width Range
$9.17
EA
12c 004297 Rod, Slave, Large, 8.96"- Used with Large Frame Width Range
$9.82
EA
12d 112564 Rod, Slave, X-Large, 10.96"- Used with X-Large Frame Width Range
$10.49
EA
13 004298 Cover, Tilt Lock
$14.58
EA
14 004308 Shaft Clamp, 6mm x M5
$18.82
EA
15 100658 M6 Nylock Nut Blk Zn
$1.17
EA
16 100746 M6 Flat Washer Blk Zn
$1.77
EA
17 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
18 102800 M4 x 8mm SHCS Blk Zn
$0.60
EA
19a 103510 M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity
$1.17
19b 103511 M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option
$3.53
20 103514 M5 x 0.8 Jam Nut BLK ZN DIN439B
$0.60
EA
21 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
22 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
23 001405 Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option
$29.16
24a 004301 Cable, Tilt, Medium- Used with Short Recline Back Post
$118.78
EA
24b 004302 Cable, Tilt, Long- Used with Tall Recline Back Post
$121.13
EA
25 001117 Cable Clip 1"
$4.28
EA
26 001239 P-Clip 3/16"
$7.06
EA
27 002800 Lever Assembly Vertical Tilt
$15.14
EA
28 100734 M5 x 16 PHMS ZC
$1.77
EA
29 001124 Pin with Lanyard
$21.17
EA
