Focus Cr
Name: Focus CR: Focus Cr Inverted Combination Attendant Foot Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

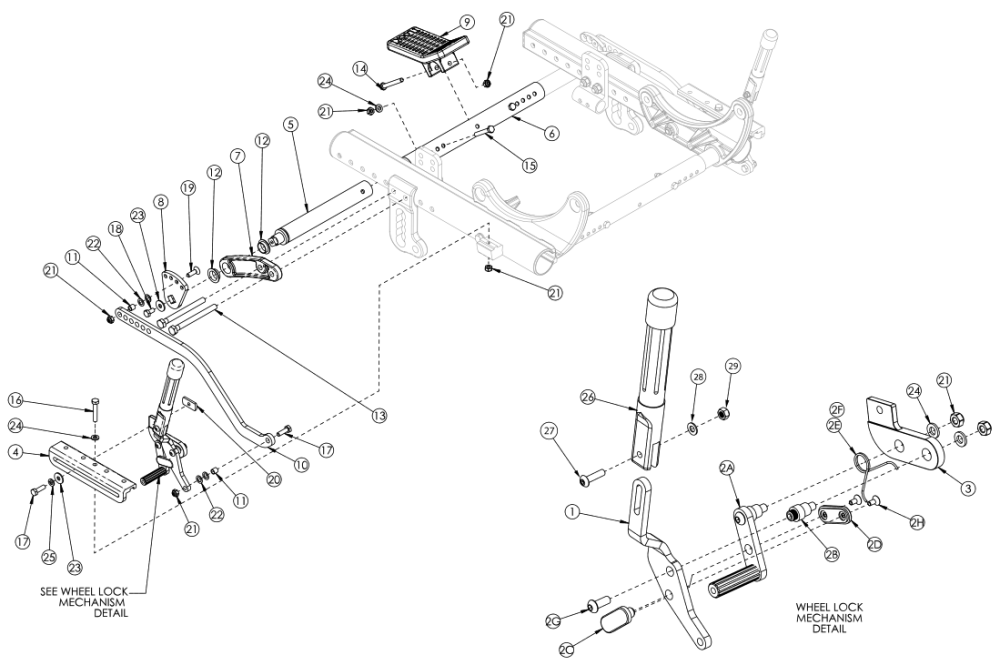

Part Picture
(Click on image to enlarge)
Inverted Wheel Lock Utilization
| Pos. | Part # | Description | Remarks | Price | Buy |
|---|---|---|---|---|---|
| 1a, 2a - 2h, 26 - 29 | 003393 | Combo Wheel Lock Assembly Push with Extension, Right | $48.73 | ||
| 1b, 2a - 2h, 26 - 29 | 003394 | Combo Wheel Lock Assembly Push with Extension, Left | $48.73 | ||
| 1a, 1b, 2a - 2h, 26 - 29 | 503737 | Combo Wheel lock Assembly Push with Extension PAIR- Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock and Inverted Axle Plate are already present | Use this kit to retrofit to the Combination Attendant Foot Lock when the Attendant Foot Lock and Inverted Axle Plate are already present | $97.45 | |
| 1 - 5, 7 - 14, 16 - 29 | 503739 | Combo Foot Lock Kit for Inverted Axle Plate, 12-16" Wheel- Use this kit to retrofit to the Combination Attendant Foot Lock when the Inverted Axle Plate is already present and the Attendant Foot Lock is not present | Use this kit to retrofit to the Combination Attendant Foot Lock when the Inverted Axle Plate is already present and the Attendant Foot Lock is not present | $634.96 | |
| 6a, 15, 21, 24 | 501123 | Base/Axle/Foot Lock Strut Assembly Small Focus | $24.77 | ||
| 6b, 15, 21, 24 | 501124 | Base/Axle/Foot Lock Strut Assembly Medium Focus | $24.77 | ||
| 6c, 15, 21, 24 | 501125 | Base/Axle/Foot Lock Strut Assembly Large Focus | $24.77 | ||
| 3 | 003774 | Wheel Lock Mount Inverted Axle Plate Push/Attendant ()- Replaced 001396 | Replaced 001396 | $31.83 | |
| 4 | 001398 | Wheel Lock Mount Bar Inverted Axle Plate () | $21.86 | ||
| 5 | 001145 | Strut Foot Lock Tilt () | $75.30 | ||
| 6a | 001011 | Growth Strut Base Small Tilt | $18.90 | ||
| 6b | 001012 | Growth Strut Base Medium Tilt | $18.90 | ||
| 6c | 001013 | Growth Strut Base Large Tilt | $18.90 | ||
| 7 | 001427 | Tube Mount Foot Lock Tilt () | $17.86 | ||
| 8 | 001150 | Index Plate Foot Lock Tilt () | $33.04 | ||
| 9 | 001397 | Pedal Foot Lock 2-Way Tilt | $10.93 | ||
| 10 | 001406 | Linkage Foot Lock Inverted Axle Plate () | $30.60 | ||
| 11 | 001156 | Pivot Bushing Tilt () | $5.62 | ||
| 12 | 001157 | IGUS Bushing GFM-1618-06 () | $15.75 | ||
| 13a | 102384 | M8 x 100 HHCS Blk Zc Part THD ()- Use quantity 1 of 102384 and quantity 1 of 101832 per side when Foot Tilt is present | Use quantity 1 of 102384 and quantity 1 of 101832 per side when Foot Tilt is present | $3.68 | |
| 13b | 101832 | M8 x 90 HHCS Blk Zn ()- Use quantity 2 per side when Hand Tilt is present | Use quantity 2 per side when Hand Tilt is present | $3.68 | |
| 14 | 101826 | M6 x 50 HHCS Blk Zn | $2.10 | ||
| 15 | 101825 | M6 x 40 HHCS Blk Zn () | $1.05 | ||
| 16 | 102386 | M6 x 35mm HHCS Blk Zc () | $1.05 | ||
| 17 | 101823 | M6 x 20 HHCS Blk Zn () | $1.05 | ||
| 18 | 101822 | M6 x 12 HHCS BLKZC w/Patch () | $1.05 | ||
| 19 | 100866 | M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch () | $2.63 | ||
| 20 | 001141 | Weld Nut NDM 06028 Zinc () | $2.63 | ||
| 21 | 100658 | M6 Nylock Nut Blk Zn () | $1.05 | ||
| 22 | 101861 | Nylon Washer 5/16 x 1/2 x .03 () | $0.53 | ||
| 23 | 101853 | M6 Washer Blk Zn () | $0.53 | ||
| 24 | 100746 | M6 Flat Washer Blk Zn () | $1.58 | ||
| 25 | 101835 | M6 Lock Washer Blk Zn () | $0.53 | ||
| 26 - 29 | 100854 | Brake Extension Replacement | $12.18 | ||
| 27 | 101117 | M5 x 22 BTN SHCS BLK ZC | $1.58 | ||
| 28 | 101856 | Flat Washer, M5, Blk Zn | $0.53 | ||
| 29 | 100657 | M5 Nylock Nut Blk Zn | $0.53 | ||
| 7, 12 | 501435 | Foot Lock Tube Mount with Bearings Focus | $24.91 |
