loadingLoading... Focus CR

Focus Cr

Name: Focus CR: (discontinued 2) Focus Cr Dual Hand Tilt Mechanism Reclining Back
Manufacturer: Ki Mobility

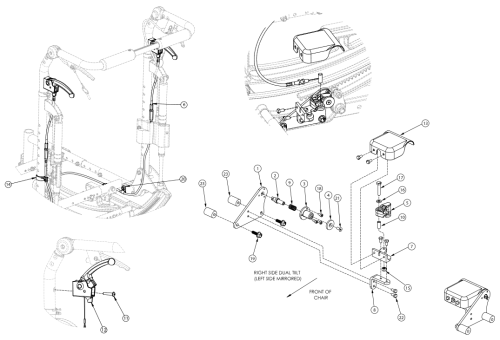

(discontinued 2) Focus Cr Dual Hand Tilt Mechanism Reclining Back parts diagram
(Click on image to enlarge)

This Focus CR Hand Tilt is discontinued. This design was effective starting with serial numbers FCR0025162 and FCHD002316 to FCR0026598 and FCHD002332.
Pos. Part # Description Price UOM Buy
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 506274 Dual Tilt Lock Mechanism Kit, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$496.03
EA
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506275 Dual Tilt Lock Mechanism Kit, Heavy Duty, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit
$622.11
EA
6a, 11, 12, 14, 20 506254 Hand Tilt Cable/Trigger Kit with Short Cable, Stroller Handle/Recline, Focus- Used with Short Recline Back Post
$152.88
EA
6b, 11, 12, 14, 20 506255 Hand Tilt Cable/Trigger Kit with Tall Cable, Stroller Handle/Recline, Focus- Used with Tall Recline Back Post
$153.89
EA
1 004280 Mount Plate, Tilt Lock
$16.22
2 004281 Pin, Plunger, Tilt Lock
$69.02
3 004282 Housing, Plunger, Tilt Lock
$11.77
4 004283 Thrust Washer, Tilt Lock
$8.11
EA
5 004284 Cam Lever, Drive, Tilt Lock
$36.21
EA
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22 506276 Tilt Lock Mechanism Dual Hand, Right
$248.02
EA
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 506277 Tilt Lock Mechanism Dual Hand, Left
$248.02
EA
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506278 Tilt Lock Mechanism Dual Hand, Heavy Duty Right
$311.05
EA
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 506279 Tilt Lock Mechanism Dual Hand, Heavy Duty Left
$311.05
EA
6a 004300 Cable, Tilt Short- Used with Short Recline Back Post
$116.43
EA
6b 004301 Cable, Tilt, Medium- Used with Tall Recline Back Post
$118.78
EA
7a 004287 Linkage Mount, Right
$51.75
EA
7b 004288 Linkage Mount, Left
$51.75
EA
8 004289 Bracket, Mount, Tilt Lock
$17.40
EA
9 004290 Spring, Comp, .42OD x 1.0L x .038W
$1.17
10 004291 Bushing, Pivot, Tilt Lock
$7.65
11 100734 M5 x 16 PHMS ZC
$1.77
EA
11, 12 110139 Lever Assembly with Lanyard Vertical Tilt
$38.06
EA
13 004298 Cover, Tilt Lock
$14.58
EA
14 001117 Cable Clip 1"
$4.28
EA
15 100658 M6 Nylock Nut Blk Zn
$1.17
EA
16 100746 M6 Flat Washer Blk Zn
$1.77
EA
17 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
18 102800 M4 x 8mm SHCS Blk Zn
$0.60
EA
19a 103510 M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Standard Weight Capacity
$1.17
19b 103511 M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921- Used with Heavy Duty Option
$3.53
20 001239 P-Clip 3/16"
$7.06
EA
21 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
22 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
23 001405 Spacer, .69OD x .24ID x .1.01Lg- Used with Heavy Duty Option
$29.16
