loadingLoading... Focus CR

Focus Cr

Name: Focus CR: Focus Cr Attendant Foot Lock
Manufacturer: Ki Mobility

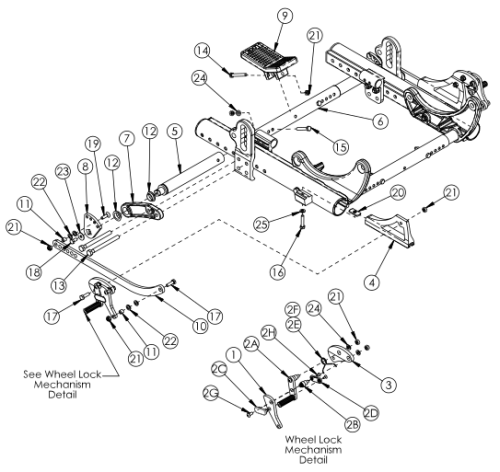

Focus Cr Attendant Foot Lock parts diagram
(Click on image to enlarge)

Standard vs Inverted Axle Plates Growth Struts based on Frame Width Range Does the chair have a combination wheel lock? If yes, please see the combination wheel lock parts manual page.
Pos. Part # Description Price UOM Buy
1 - 5, 6a, 7 - 9, 10a, 11 - 25 506829 Foot Lock Retrofit Kit, 12-16" Wheel, Small, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6b, 7 - 9, 10a, 11 - 25 506830 Foot Lock Retrofit Kit, 12-16" Wheel, Medium, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6c, 7 - 9, 10a, 11 - 25 506831 Foot Lock Retrofit Kit, 12-16" Wheel, Large, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6d, 7 - 9, 10a, 11 - 25 114285 Foot Lock Retrofit Kit, 12-16" Wheel, X-Large, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$751.07
EA
1 - 5, 6a, 7 - 9, 10b, 11 - 25 506832 Foot Lock Retrofit Kit, 20-24" Wheel, Small, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6b, 7 - 9, 10b, 11 - 25 506833 Foot Lock Retrofit Kit, 20-24" Wheel, Medium, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6c, 7 - 9, 10b, 11 - 25 506834 Foot Lock Retrofit Kit, 20-24" Wheel, Large, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$763.69
EA
1 - 5, 6d, 7 - 9, 10b, 11 - 25 114286 Foot Lock Retrofit Kit, 20-24" Wheel, X-Large, Focus- Use this kit if retrofitting to an Attendant Foot Lock
$751.07
EA
1 - 5, 7 - 9, 10a, 11 - 14, 16 - 25 501432 Foot Lock Kit, 12-16" Wheel
$758.88
EA
1 - 5, 7 - 9, 10b, 11 - 14, 16 - 25 501433 Foot Lock Kit, 20-24" Wheel
$758.88
EA
6a, 15, 21, 24 501123 Base/Axle/Foot Lock Strut Assembly Small Focus
$27.74
EA
6b, 15, 21, 24 501124 Base/Axle/Foot Lock Strut Assembly Medium Focus
$27.74
EA
6c, 15, 21, 24 501125 Base/Axle/Foot Lock Strut Assembly Large Focus
$27.74
EA
6d, 15, 21, 24 114284 Base/Axle/Foot Lock Strut Assembly X-Large Focus
$30.08
EA
1a, 2a - 2h 001142 Wheel Lock Foot Right Tilt
$93.50
EA
1b, 2a - 2h 001143 Wheel Lock Foot Left Tilt
$93.50
EA
1a, 1b, 2a - 2h 502178 Foot Wheel Lock Lever and Wheel Lock Linkage Kit PAIR
$186.98
EA
7, 12 501435 Foot Lock Tube Mount with Bearings Focus
$27.90
EA
3, 4a, 4b, 10a, 15 - 17 20, 21, 25 119821 Linkage Foot Lock Short TILT Kit- Used to retrofit from an existing inverted Attendant Foot lock with 12" - 16" rear wheels. Contains hardware needed for both sides.
$216.24
EA
3, 4a, 4b, 10b, 15 - 17, 20, 21, 25 119822 Linkage Foot Lock Long TILT Kit- Used to retrofit from an existing inverted Attednant Foot lock with 20" - 24" rear wheels. Contains hardware needed for both sides.
$210.07
EA
3 003771 Foot Wheel Lock Mount Tilt- Replaced 001296
$33.33
4a 001138 Plate Wheel Lock Right Tilt
$18.27
EA
4b 001139 Plate Wheel Lock Left Tilt
$18.27
EA
5 001145 Strut Foot Lock Tilt
$84.32
6a 001011 Growth Strut, Base, Small Tilt
$21.18
EA
6b 001012 Growth Strut, Base, Medium Tilt
$21.18
EA
6c 001013 Growth Strut, Base, Large Tilt
$21.18
EA
6d 112005 Growth Strut, Base, X-Large Tilt
$23.50
EA
7 001427 Tube Mount Foot Lock Tilt
$20.00
8 001150 Index Plate Foot Lock Tilt
$36.99
9 001397 Pedal Foot Lock 2-Way Tilt
$12.23
EA
10a 001428 Linkage Foot Lock Short TILT- Used with 12" - 16" rear wheels
$30.00
10b 001407 Linkage Foot Lock Long TILT- Used with 20" - 24" rear wheels
$26.93
11 001156 Pivot Bushing Tilt
$6.29
12 001157 IGUS Bushing GFM-1618-06
$17.65
13a 103513 M8 x 120 HHCS Blk Zn- Use quantity 1 of 103513 and quantity 1 of 101832 per side when Foot Tilt is present
$4.70
13b 101832 M8 x 90 HHCS Blk Zn- Use quantity 2 per side when Hand Tilt is present
$4.12
EA
14 101826 M6 x 50 HHCS Blk Zn
$2.36
EA
15 101825 M6 x 40 HHCS Blk Zn
$1.17
EA
16 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
17 101823 M6 x 20 HHCS Blk Zn
$1.17
EA
18 101822 M6 x 12 HHCS BLKZC w/Patch
$1.17
EA
19 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
20 001141 Weld Nut NDM 06028 Zinc
$2.94
EA
21 100658 M6 Nylock Nut Blk Zn
$1.17
EA
22 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
23 101853 M6 Washer Blk Zn
$0.60
EA
24 100746 M6 Flat Washer Blk Zn
$1.77
EA
25 101835 M6 Lock Washer Blk Zn
$0.60
EA
