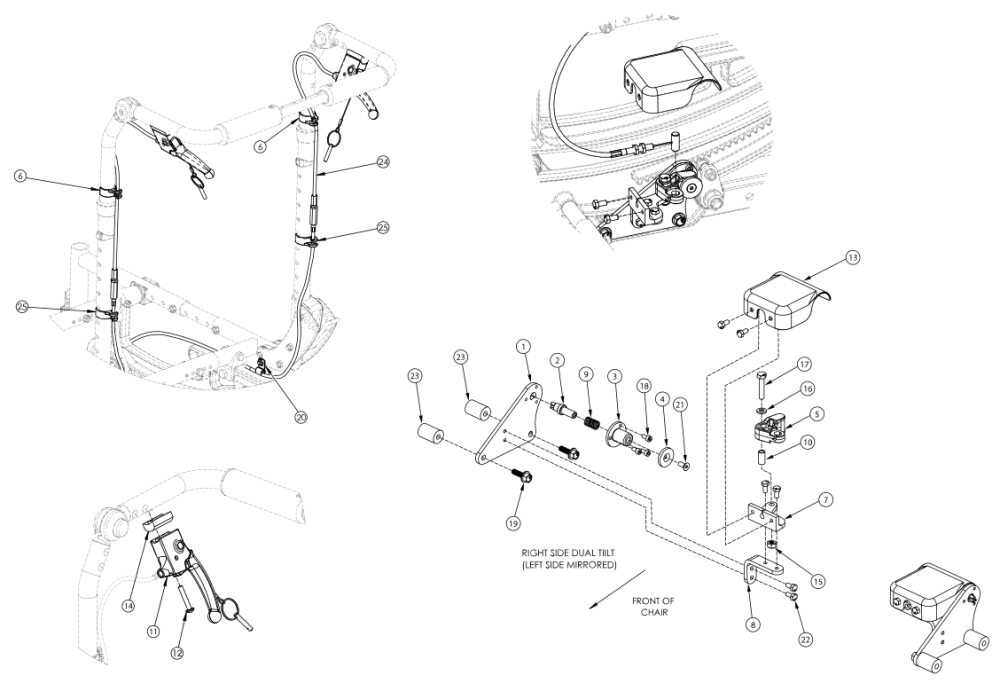

Pos. | Part # | Description | Remarks | Price | Buy |
---|---|---|---|---|---|
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506274 | Dual Tilt Lock Mechanism Kit, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $434.45 | |
1 - 5, 7a, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506275 | Dual Tilt Lock Mechanism Kit, Heavy Duty, Focus- For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | For complete dual hand tilt mechanism, select appropriate Hand Tilt Cable/Trigger Kit in addition to this kit | $544.87 | |
6, 11, 12, 14, 20, 24a, 25 | 506252 | Hand Tilt Cable/Trigger Kit with Long Cable, Height Adjustable w/Adj Handle, Focus ()- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $154.89 | |
6, 11, 12, 14, 20, 24b, 25 | 506253 | Hand Tilt Cable/Trigger Kit with XL Cable, Height Adjustable w/Adj Handle, Focus ()- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $155.33 | |
6, 11, 12, 14, 20, 24c, 25 | 506256 | Hand Tilt Cable/Trigger Kit with XXL Cable, Height Adjustable w/Adj Handle, Focus ()- Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | $155.33 | |
1 | 004280 | Mount Plate, Tilt Lock () | $14.21 | ||
2 | 004281 | Pin, Plunger, Tilt Lock () | $60.46 | ||
3 | 004282 | Housing, Plunger, Tilt Lock () | $10.30 | ||
4 | 004283 | Thrust Washer, Tilt Lock () | $7.11 | ||
5 | 004284 | Cam Lever, Drive, Tilt Lock () | $31.72 | ||
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506276 | Tilt Lock Mechanism Dual Hand, Right | $217.23 | ||
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19a, 21, 22 | 506277 | Tilt Lock Mechanism Dual Hand, Left | $217.23 | ||
1 - 5, 7a, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506278 | Tilt Lock Mechanism Dual Hand, Heavy Duty Right | $272.44 | ||
1 - 5, 7b, 8 - 10, 13, 15 - 18, 19b, 21 - 23 | 506279 | Tilt Lock Mechanism Dual Hand, Heavy Duty Left | $272.44 | ||
6 | 001118 | Cable Clip 7/8" () | $3.75 | ||
7a | 004287 | Linkage Mount, Right | $45.32 | ||
7b | 004288 | Linkage Mount, Left | $45.32 | ||
8 | 004289 | Bracket, Mount, Tilt Lock () | $15.24 | ||
9 | 004290 | Spring, Comp, .42OD x 1.0L x .038W () | $1.03 | ||
10 | 004291 | Bushing, Pivot, Tilt Lock () | $6.70 | ||
11 | 002801 | Lever Assembly Horizontal Tilt () | $13.25 | ||
12 | 100696 | M5 x 30mm PPH Capscrew () | $1.55 | ||
13 | 004298 | Cover, Tilt Lock () | $12.77 | ||
14 | 003367 | Spacer, Tilt Lever () | $18.48 | ||
15 | 100658 | M6 Nylock Nut Blk Zn () | $1.03 | ||
16 | 100746 | M6 Flat Washer Blk Zn () | $1.55 | ||
17 | 101824 | M6 x 30 HHCS Blk Zn () | $2.06 | ||
18 | 102800 | M4 x 8mm SHCS Blk Zn () | $0.52 | ||
19a | 103510 | M6 x 1 x 20 HHCS SFLG CLS8.8 Blk Zn DIN6921 ()- Used with Standard Weight Capacity | Used with Standard Weight Capacity | $1.03 | |
19b | 103511 | M6 x 1 x 45 HHCS SFLG CLS8.8 Blk Zn DIN6921 ()- Used with Heavy Duty Option | Used with Heavy Duty Option | $3.09 | |
20 | 001239 | P-Clip 3/16" () | $6.18 | ||
21 | 103522 | M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991 () | $1.03 | ||
22 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 () | $0.52 | ||
23 | 001405 | Spacer, .69OD x .24ID x .1.01Lg ()- Used with Heavy Duty Option | Used with Heavy Duty Option | $25.54 | |
24a | 004302 | Cable, Tilt, Long ()- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $106.09 | |
24b | 004303 | Cable, Tilt, XL ()- Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | Used with Short Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" or Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 14"-17" | $108.15 | |
24c | 004304 | Cable, Tilt, XXL ()- Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | Used with Tall Adjustable Height with Adjustable Handle Back Post with Seat Depths of 18"-22" | $110.21 | |
25 | 001117 | Cable Clip 1" () | $3.75 |
